Fujitsu Primergy RX300 S3 Start Guide

2
4
Conditions
n

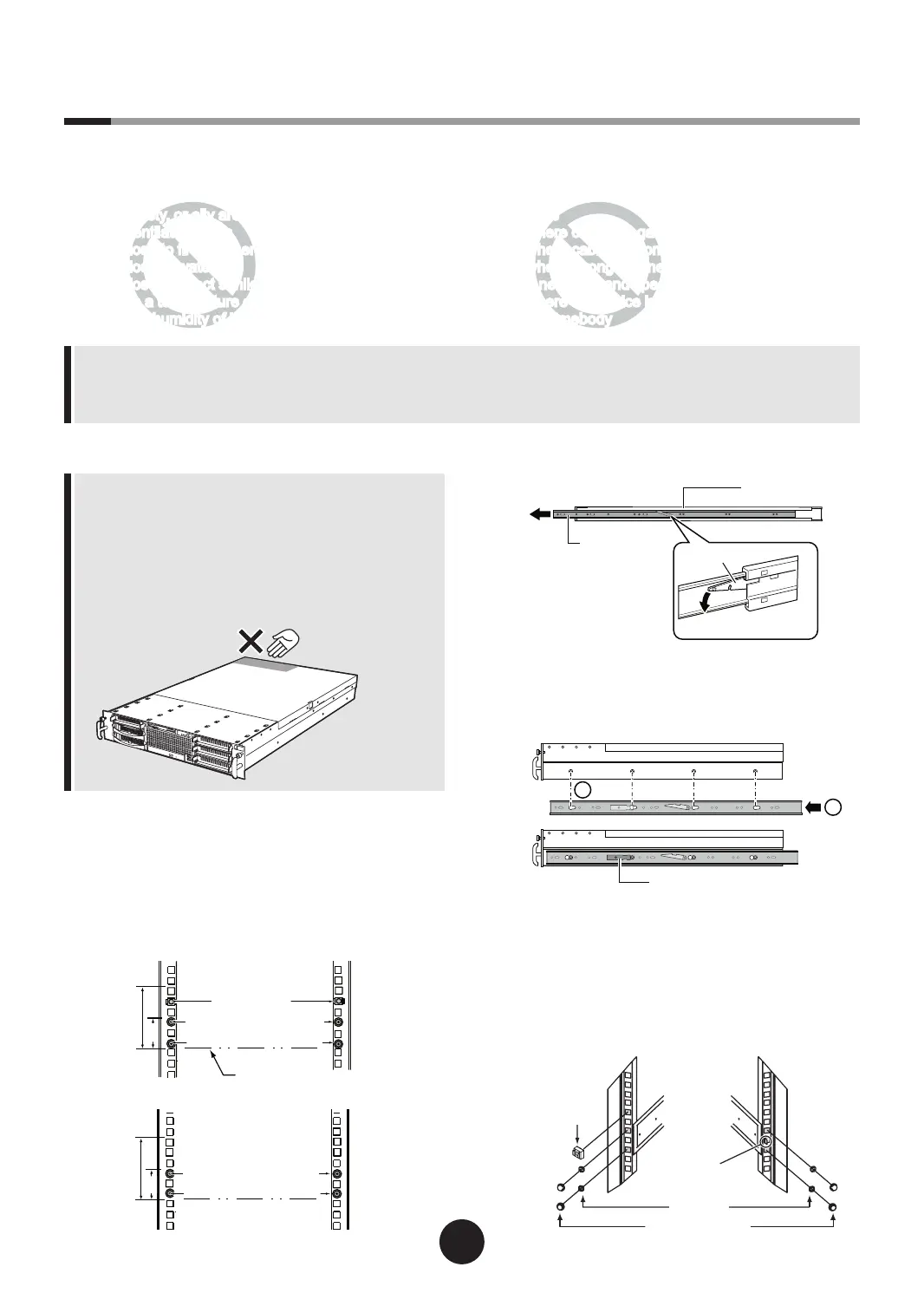

Restriction of installation features
When installing this server, avoid the following areas.





℃℃













℃℃














℃℃








- In dusty areas, dust will stick to the front and backside of the server for a short period of time. Since it causes
failure, changing the installation place is recommended.
- When Power Supply Conversion kit is used, Noise level of this server is measured at 55dB. It is recommended
to place the server in an exclusive room. Use the server with care if it is placed in an ofce.
■ Install the server into the rack
- Be sure to secure the rack with stabilizers to prevent the

device from tipping over. For details on installing the rack,
refer to the "Installation Guide for the RACK" and the
manual provided with the rack.
- The weight of the server exceeds 18kg. When you carry
the server, have a right and left side and the bottom of
the body by two or more people. Do not have a hand on
the following part because this part is transformed easily.
1
Open both the front and rear doors of
the rack.
2
Check where to attach the slide rail
and rack nuts.
Attach the slide rail to the front and rear brackets.
Attach the rack nuts to the front brackets.














3
Remove the inner rail from the slide rail





4
Attach the inner rail to the server.
Set the screws on the server side in the holes of the rail
(1), and slide the rail forward to x it (2).




5
Attach the slide rail assemblies and in-
sert the rack nuts into the rack holes.
Insert the projections from the back side in the rack,
and attach the slide rails with the washers.Insert
latches of the rack nuts from inside of the rack
bracket.

 





Fujitsu Primergy RX300 S3 Specifications

General

Tcase	78 °C
Bus type	FSB
FSB Parity	Yes
Processor cache	4 MB
Processor cores	2
Processor model	5080
Processor series	Intel Xeon 5000 Series
Processor socket	LGA 771 (Socket J)
Processor threads	4
Processor codename	Dempsey
Motherboard chipset	Intel® 5000P
Processing Die size	162 mm²
Processor frequency	3.73 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	1066 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	130 W
Processor core voltage (AC)	1.25 - 1.40 V
CPU multiplier (bus/core ratio)	14
Number of Processing Die Transistors	376 M
Maximum graphics card memory	8 MB
Memory slots	8
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	2 x 1 GB
Networking features	Ethernet/Fast Ethernet/Gigabit Ethernet
Expansion slots	1 x PCIe x8, 2 x PCIe x4, 2 x PCI-X
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	56 dB
Chassis type	Rack (2U)
Compatible operating systems	Windows Server 2003, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESX
I/O ports	8 x SAS
Power supply	600 W
Power requirements	100 - 240V, 50/60 Hz
Operating temperature (T-T)	10 - 35 °C
Safety	IEC 60950-1, EN 60950-1
Electromagnetic compatibility	EN 55 022 A, EN 55024, EN 61000-3-2 / -3-3
RAID levels	1, 5, 10, 50
Processor ARK ID	27213

Weight and Dimensions

Depth	785 mm
Width	483 mm
Height	86 mm
Weight	25000 g
