Fujitsu Primergy RX300 S3 Start Guide

5
8
Turning off the power and installing optional devices
Install optional devices to be installed after the OS installation.
"Chapter 7 Installing Internal Options"
1
Check that no medium is inserted in the
oppy disk drive or CD-ROM drive.
2
Exit the operating system (OS).
After the OS is exited, the server is au-
tomatically turned off.
When the power of the server is not off after the OS
is exited, press the power switch on the front of the
server.
3
Turn off the power supply of the periph-
eral devices, such as the display.
4
Install the optional devices.
After optional devices are installed, set the BIOS
Setup Utility as required.
For details about setting procedures, refer to the
"User's Guide Chapter 8 Conguring Hardware and
Utilities".
When turning on the server again after turning it
off, wait for at least ten seconds and then press the
power switch.
If the server is turned on straight after being turned
off, an error will occur and may cause damage.
9

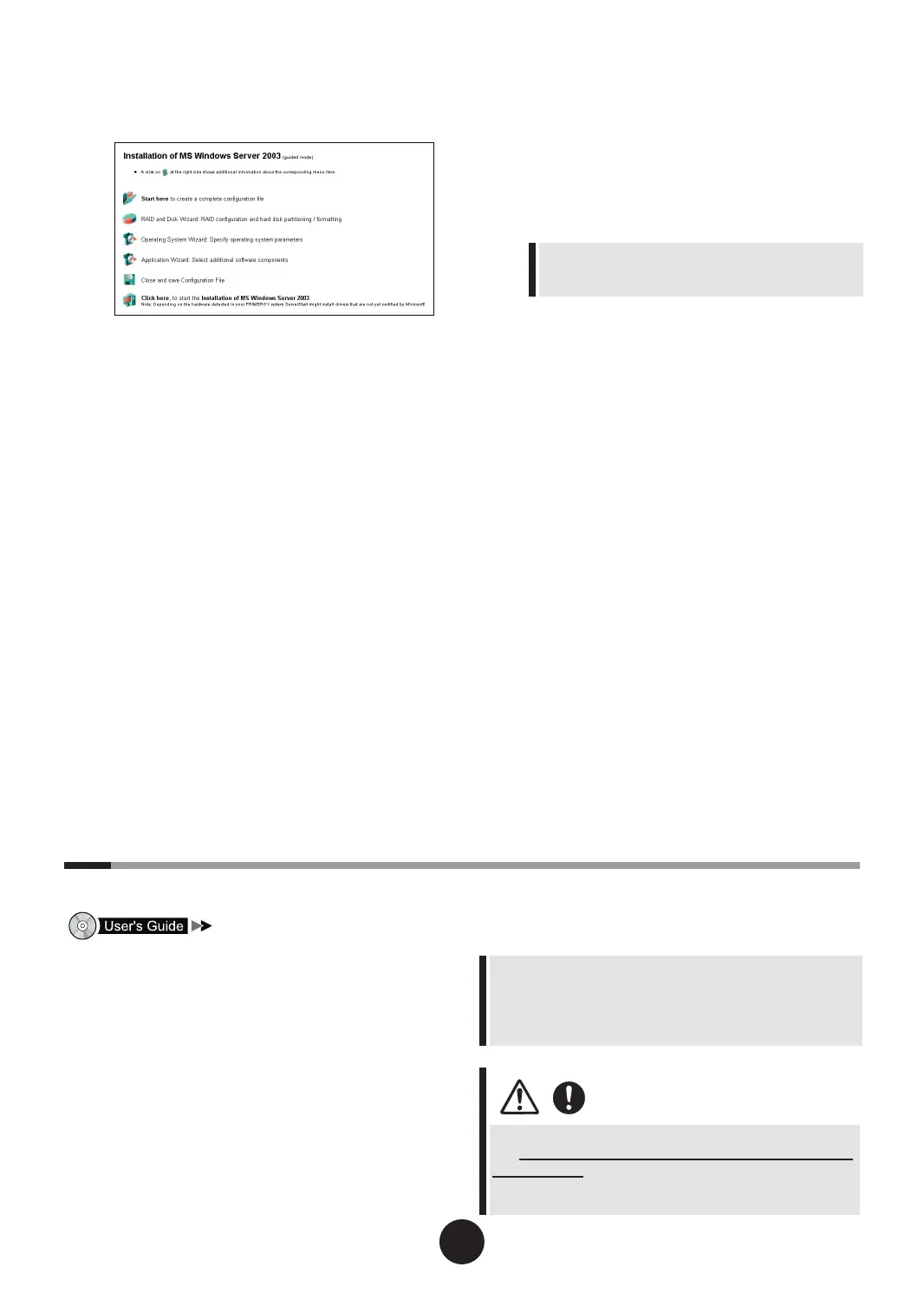

Click[Prepare & initiate an unattended
installation of (OS)].
The guided mode for the selected OS starts up.
10
Click [Start here to create a complete
conguration le].
The [Open ServerStart Conguration File] window
appears.
11
Select the conguration le and click
[Create].
The wizard starts up automatically.
12
Set the server information.
Click the wizard sequentially, and enter the server
information.
Clicking [help] under the wizard window displays
explanations of items and setting hints.
1.
RAID and Disk wizard
Congure RAID, and create and format
hard disk partitions.
2.
(OS) Install wizard
Set the computer information, user infor-
mation, network protocol, etc.
3.
Application wizard
It is recommended to install the application
selected as default.
13
Click [Close and save Conguration
File].
Click [Save As] and save the conguration le.
14
Click[Click here, to Start the Installation
of (OS)].
The license window appears.
Follow the window instructions.
Incorrect settings will cause errors to be displayed.
Enter correct values manually to continue the pro-
cess.
15
When a message indicating installation
completion appears, press any key.
16
Restart the system.
Click [Start] - [Shutdown]. Select [Restart] and
click [OK].
17
When the system restarts, log on to
the server using the Administrators
account for the local computer.

Fujitsu Primergy RX300 S3 Specifications

General

Tcase	78 °C
Bus type	FSB
FSB Parity	Yes
Processor cache	4 MB
Processor cores	2
Processor model	5080
Processor series	Intel Xeon 5000 Series
Processor socket	LGA 771 (Socket J)
Processor threads	4
Processor codename	Dempsey
Motherboard chipset	Intel® 5000P
Processing Die size	162 mm²
Processor frequency	3.73 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	1066 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	130 W
Processor core voltage (AC)	1.25 - 1.40 V
CPU multiplier (bus/core ratio)	14
Number of Processing Die Transistors	376 M
Maximum graphics card memory	8 MB
Memory slots	8
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	32 GB
Memory layout (slots x size)	2 x 1 GB
Networking features	Ethernet/Fast Ethernet/Gigabit Ethernet
Expansion slots	1 x PCIe x8, 2 x PCIe x4, 2 x PCI-X
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	56 dB
Chassis type	Rack (2U)
Compatible operating systems	Windows Server 2003, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESX
I/O ports	8 x SAS
Power supply	600 W
Power requirements	100 - 240V, 50/60 Hz
Operating temperature (T-T)	10 - 35 °C
Safety	IEC 60950-1, EN 60950-1
Electromagnetic compatibility	EN 55 022 A, EN 55024, EN 61000-3-2 / -3-3
RAID levels	1, 5, 10, 50
Processor ARK ID	27213

Weight and Dimensions

Depth	785 mm
Width	483 mm
Height	86 mm
Weight	25000 g
