6.2 Control elements and indicators
6.2.1 Front of the server

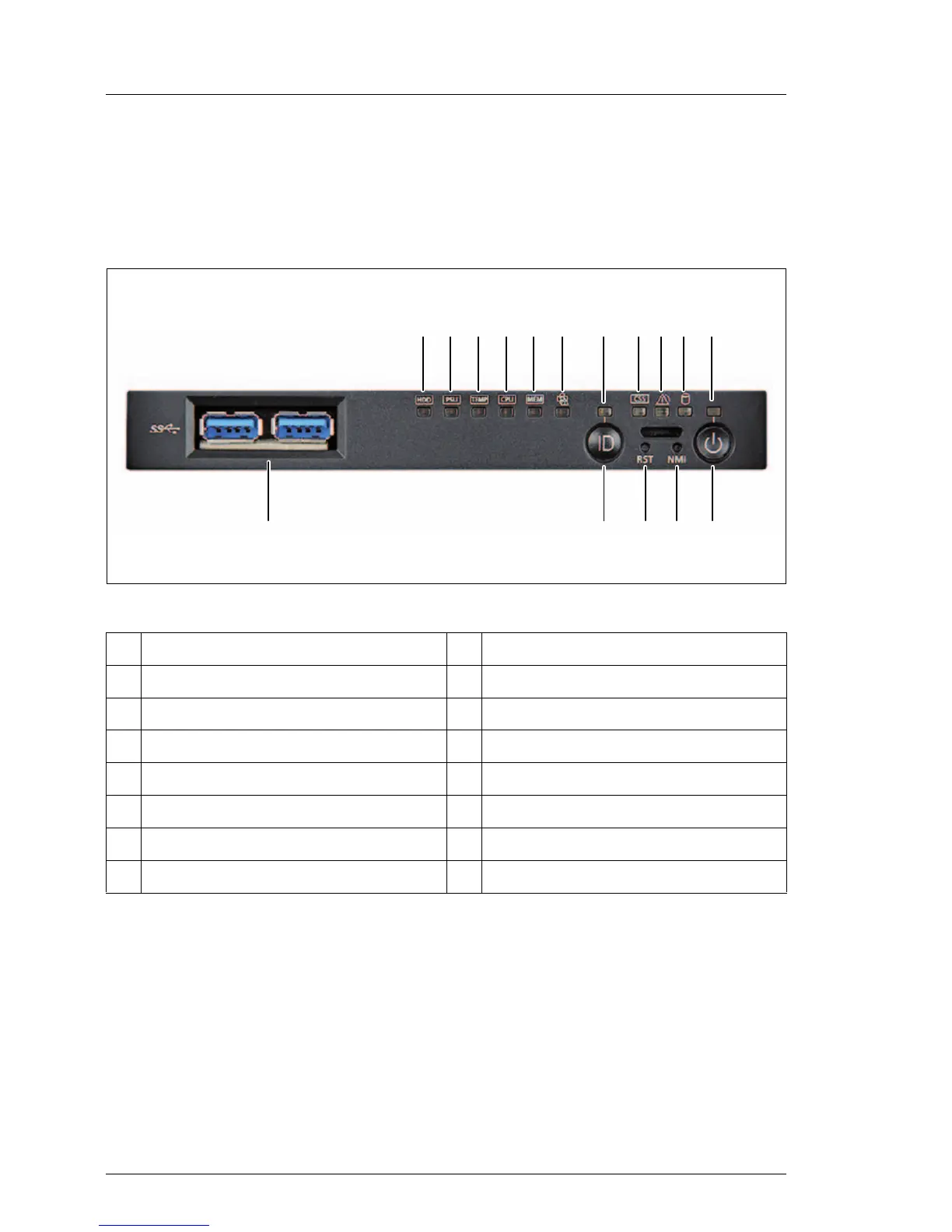

Figure 8: Front panel
I The meaning of the local diagnotsic indicators (1) - (6) is discribed in the
"PRIMERGY TX140 S2 Server Upgrade and Maintenance manual".
1 HDD error indicator 9 Global Error indicator
2 PSU error indicator 10 HDD/SSD activity indicator
3 Temperature error indicator 11 Power-on indicator
4 CPU error indicator 12 On/Off button
5 Memory error indicator 13 NMIbutton
6 Fan error indicator 14 REST button
7 ID indicator 15 ID button
8 CSS indicator 16 2x USB 3.0 connectors
