TX140 S2 Operating Manual 59
6 Starting up and operation
V CAUTION!
Follow the safety instructions in chapter "Important information" on
page 33.
6.1 Access to the drives (floorstand model)
6.1.1 Enabling access to the accessible drives

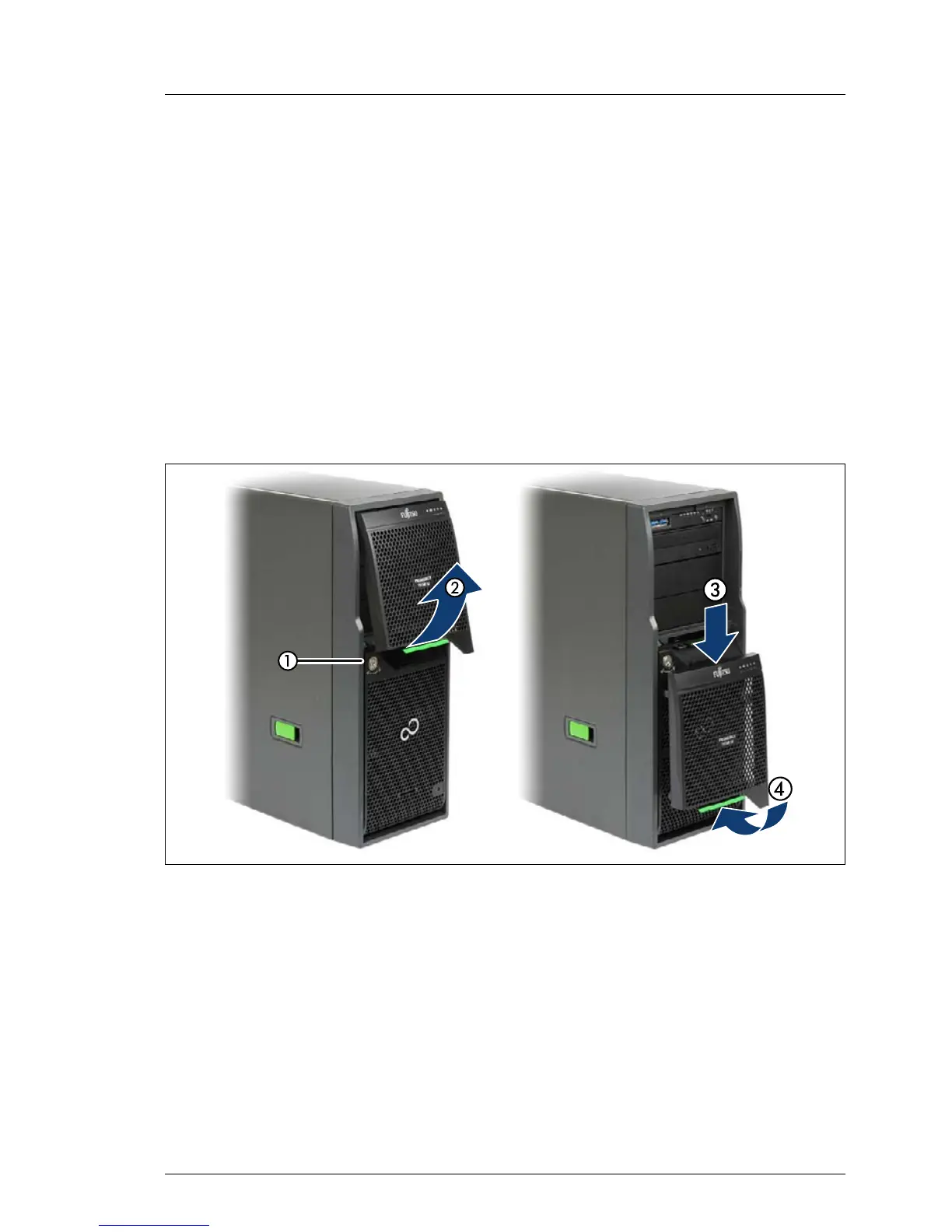

Figure 5: Removing the drive cover and snapping it into the HDD cover
Ê Unlock the server (1).
Ê Remove the drive cover (2).
Ê Attach the drive cover to the recesses on the HDD cover (3).
Ê Push down the HDD cover in the direction of the arrow (4).
I Please note the following when operating with tape drives:
If the system is programmed to eject the media automatically, the
accessible drives must not be obstructed.
