LAN indicators

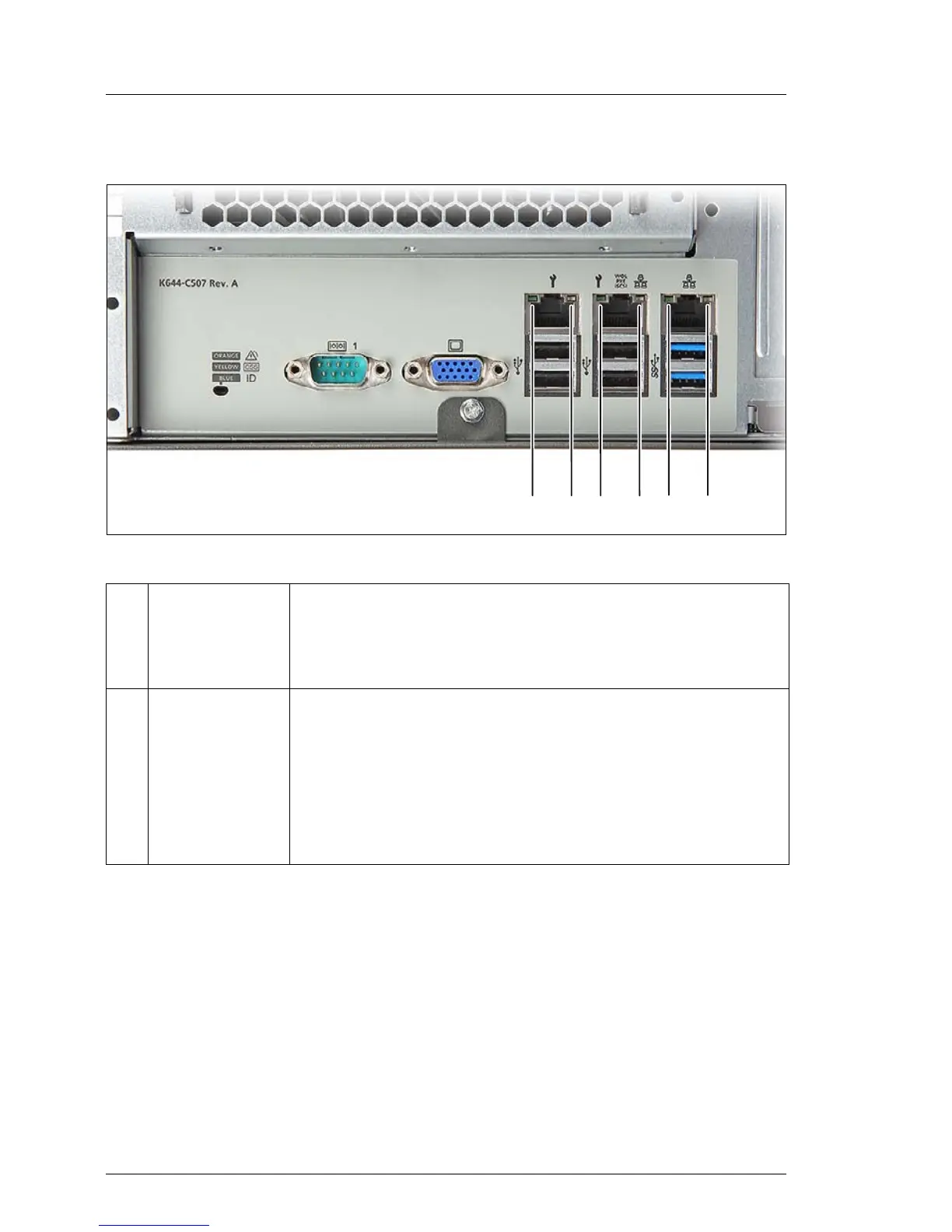

Figure 12: Indicators on the connector panel: LAN indicators
I Depending on the settings in the BIOS, the shared LAN connector may
also be used as a service LAN connector. You will find further information
in the "D3239 BIOS Setup Utility for PRIMERGY TX140 S2 Reference
Manual".
1LAN
link/transfer
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
2 LAN speed Steady yellow signal in the event of a LAN transfer rate
of 1 Gbit/s
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
