3. Fan control
Tr: Room temperature
Ts: Setting temperature

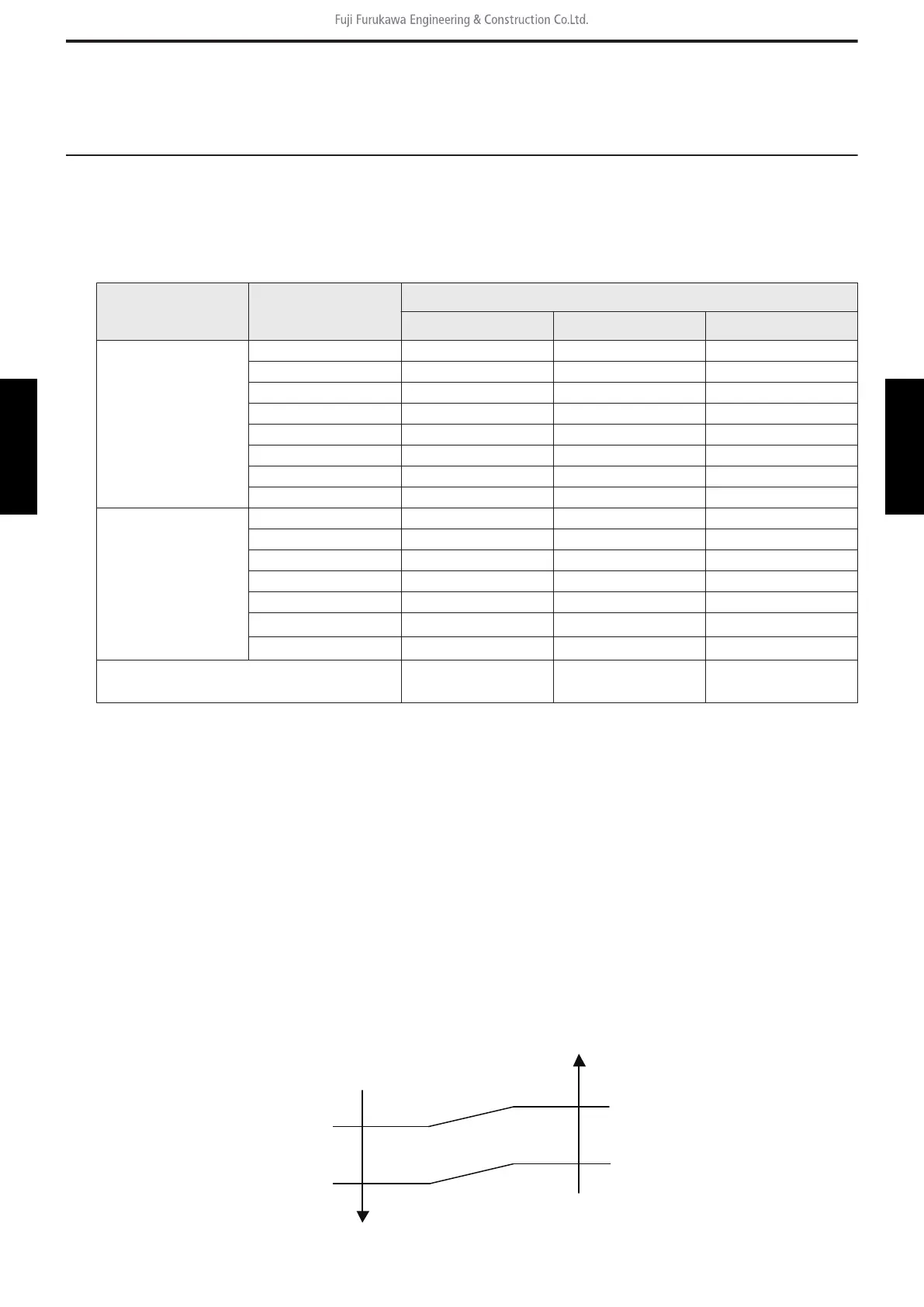

3-1. Indoor fan control
¢ Fan speed
Indoor fan speed is defined as below.
Operation mode Fan mode
Speed (rpm)
RSG09KMCDN RSG12KMCDN RSG14KMCDN
Heating
POWERFUL 1,310 1,340 1,400
HIGH 1,240 1,270 1,330
MED+ 1,120 1,130 1,160
MED 1,050 1,070 1,100
LOW 900 910 910
QUIET 610 610 670
Cool air prevention 580 580 580
S-LOW 470 470 470
Cooling/Fan
POWERFUL 1,200 1,220 1,320
HIGH 1,130 1,150 1,250
MED 940 970 1,020
LOW 780 810 810
QUIET 580 580 580
Soft quiet
510*
1
510*
1
510*
1
S-LOW
470*
2
470*
2
470*
2
Dry
X zone: 580
J zone: 580
X zone: 580
J zone: 580
X zone: 580
J zone: 580
*1: Fan mode only
*2: Cooling mode only
¢ Fan operation
Airflow can be switched in 5 steps such as AUTO, QUIET, LOW, MED, HIGH while indoor unit fan
only runs.
When fan mode is set at AUTO, it operates on MED fan speed.
¢
Cooling operation
Switch the airflow AUTO, and indoor fan motor will run according to room temperature, as below.
On the other hand, if switched in HIGH—QUIET, indoor motor will run at a constant airflow of COOL
operation modes QUIET, LOW, MED, HIGH as shown in “Fan speed” above.
Airflow change over (Cooling: Auto)
When room
temperature rises
When room
temperature drops
Tr - Ts ≥ 2°C
HIGH mode
MED mode
LOW mode
2°C > Tr - Ts ≥ 1°C
1°C > Tr - Ts
Tr - Ts ≥ 2.5°C
2.5
°C > Tr - Ts ≥ 1.5°C
1.5°C > Tr - Ts
3-1. Indoor fan control
- (04-10) - 3. Fan control
