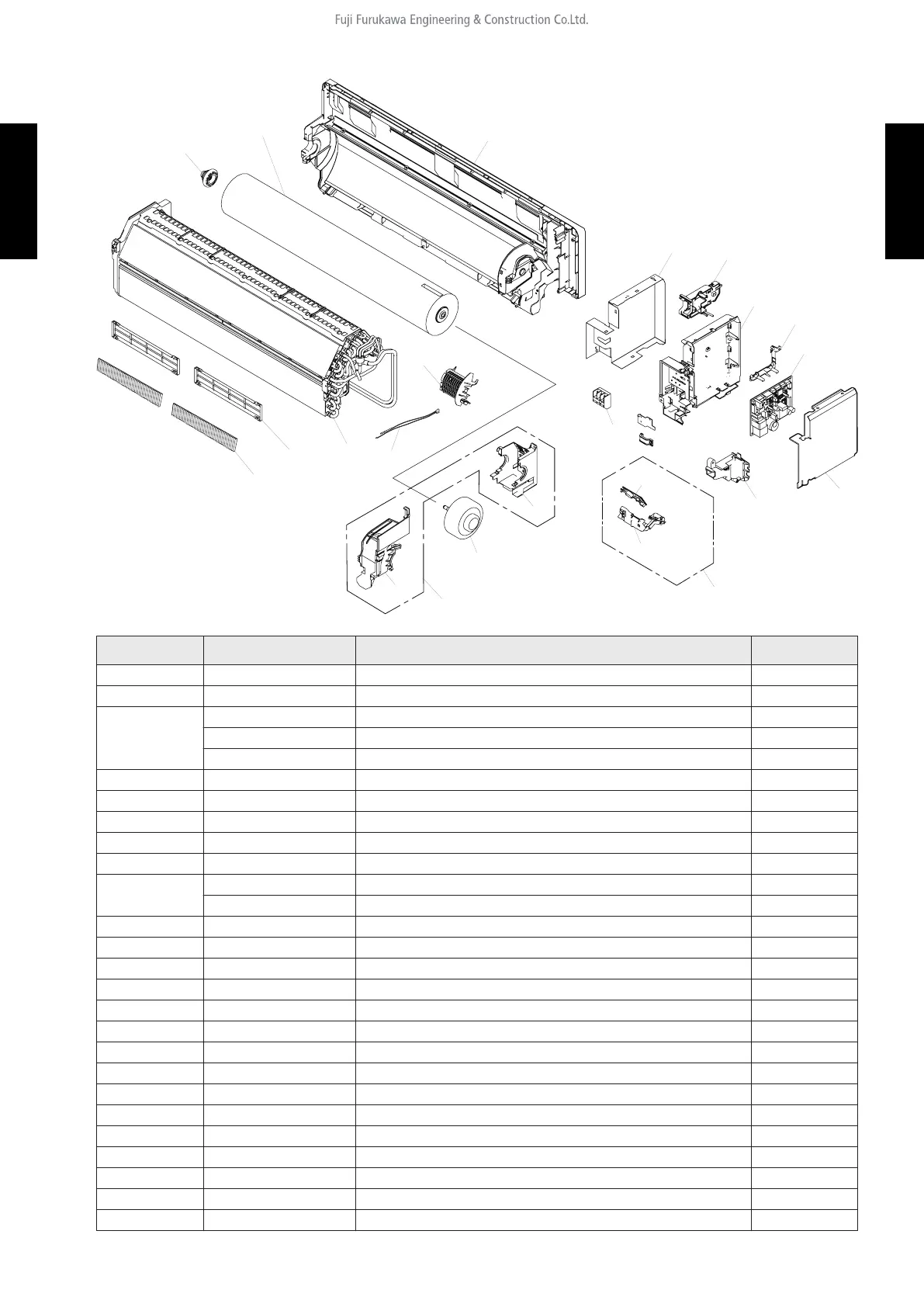

¢ Chassis
65
50
51
a
b
c
52
d
53
54
55
58
59
e
f
60
61
66
63
62
64
67
68
Item no. Part no. Part name Service part
50 9387587074 Base assy
51 9383765032 WLAN adapter holder assy
52
9711141446 Main PCB (For 09 model)
9711141453 Main PCB (For 12 model)
9711141460 Main PCB (For 14 model)
53 9387488029 Cable guide
54 9711146021 Display assy
55 9711147028 Indicator PCB
58 9333879000 Display case assy
59 9901013010 Terminal
60
9603688028 Brushless motor (For 09 model)
9603492021 Brushless motor (For 12-14 model)
61 9387589047 Motor case assy
62 9317250009 Air clean filter assy
63 9332911008 Electric filter holder
64 9387593297 Evaporator total assy
65 9900627065 Thermistor assy
66 9387467017 Room thermistor holder
67 9333628004 Bearing D assy
68 9333606033 Crossflow fan assy
9901010019 Wire with connector
a Box shield
b Control box
c PCB holder A
d Control cover
e Motor case
f Motor cover
2-1. Models: RSG09KMCDN, RSG12KMCDN, and RSG14KMCDN - (02-3) - 2. Indoor unit parts list
