Fujitsu ScanSnap S1300 Installation And Troubleshooting Guide

When ScanSnap Manager does not operate normally
28

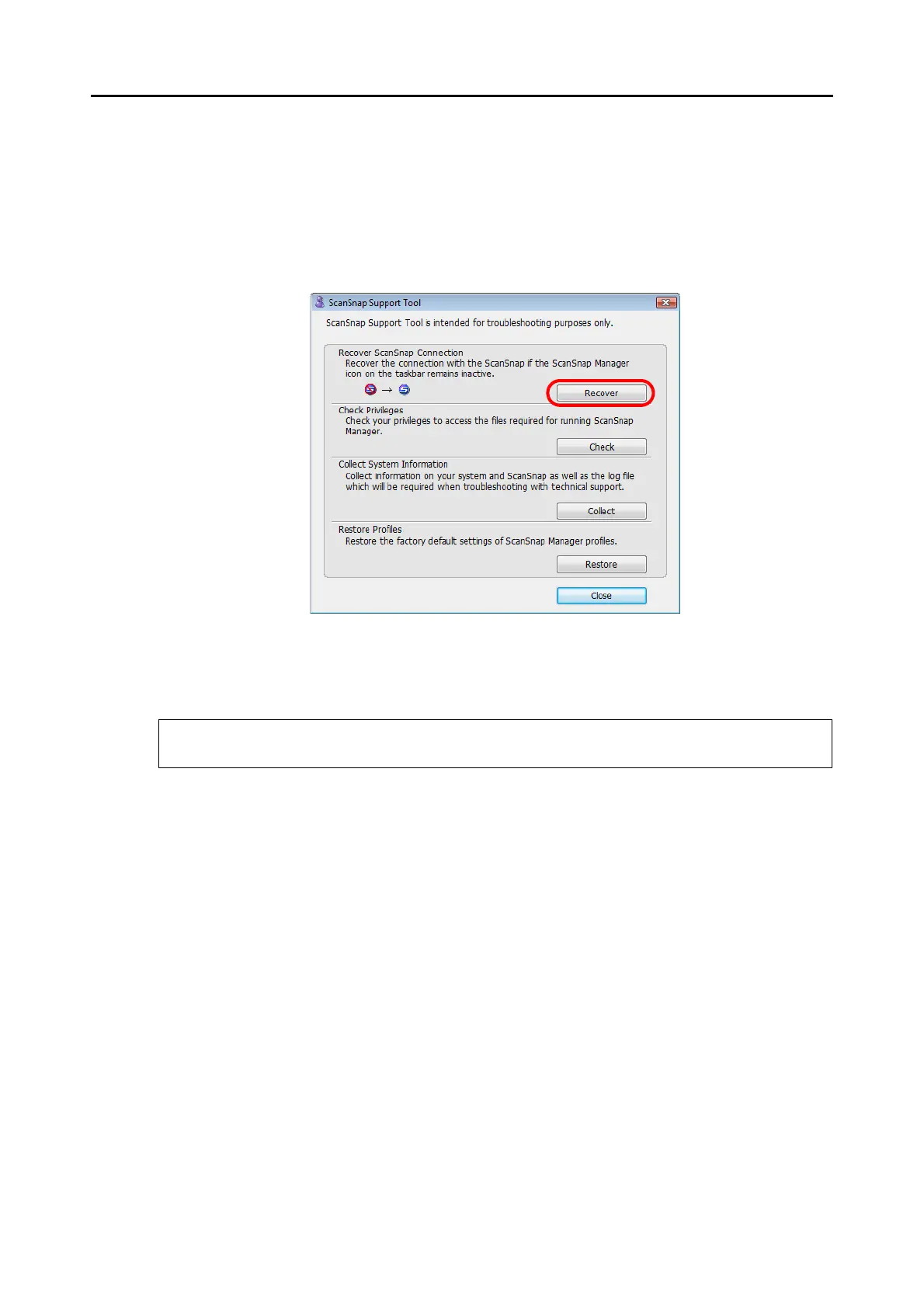

7. Recover the connection with the ScanSnap.
1. Select [Start] menu → [All Programs] → [ScanSnap Manager] → [ScanSnap Support
Tool].
D The [ScanSnap Support Tool] dialog box appears.
2. Click the [Recover] button, and proceed by following the instructions displayed on
the screen.
8. Close the ADF paper chute (cover)/feed guide, and restart your
computer.
If the problem persists, refer to the next topic "Removing the ScanSnap's connection information" (page
29).

Fujitsu ScanSnap S1300 Specifications

General

Film scanning	No
Color scanning	Yes
Maximum scan size	216 x 360 mm
Scanner type	Sheet-fed scanner
Sensor type	CIS
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	10 sheets
USB version	2.0
Standard interfaces	USB 2.0
Scan media weight	64 - 104.7 g/m²
Dimensions (WxDxH)	284 x 99 x 77 mm
Power requirements	AC 100 - 240V, 50/ 60 Hz
Non-operating relative humidity (non-condensing)	20 - 80 %
Minimum RAM	512 MB
Minimum storage drive space	2197 MB
Sustainability certificates	ENERGY STAR
Power consumption (standby)	5 W
Power consumption (typical)	9 W
Operating temperature (T-T)	5 - 35 °C
Certification	RoHS

Weight and Dimensions

Depth	99 mm
Width	284 mm
Height	77 mm
Weight	1400 g
