Fujitsu SP-1125 User Manual

Chapter 6 Replacing the Consumables
60
Appendix
Glossary
Contents
TOP
How to Load
Documents
How to Use the
Operator Panel
Various Ways to
Scan
Daily Care
Troubleshooting
Operational
Settings
Replacing the
Consumables
Scanner
Overview
Index
Introduction

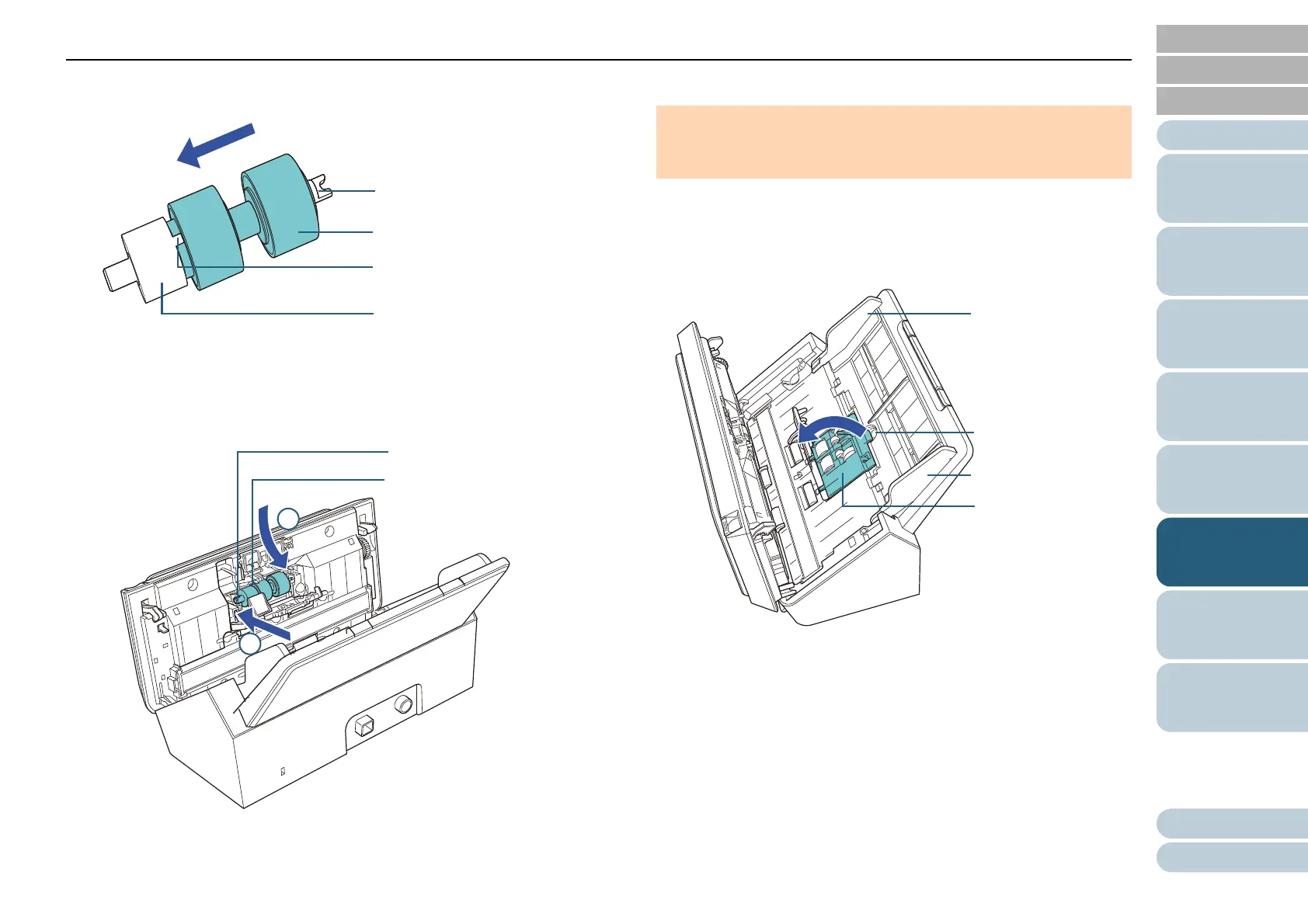

5 Attach a new brake roller on the shaft.
Insert the protrusion on the shaft into the slot.
6 Attach the shaft.
1 Attach the notch, which is on the brake roller shaft, to the slot on
the right then attach the left side of the shaft.
2 Close the cover.
7 Remove the pick roller.
1 Open the side guide fully to both sides. Then place your finger into
the depression and open the sheet guide in the direction of the
arrow.
Protrusion
Brake roller shaft
Brake roller
Notch
1
2
Brake roller shaft
Brake roller
ATTENTION
Confirm that the brake roller is installed properly. Otherwise, it may
cause feeding errors such as paper jams.
Depression
Sheet guide
Side guide
Side guide
