Fujitsu Stylistic Q702 Getting Started Guide

Page 4 of 5
10. User’s Guide
■ Your electronic User’s Guide contains important detailed information about your new computer. You
can access your User’s Guide by selecting its icon from the desktop. (You will need to be connected
to the Internet.)

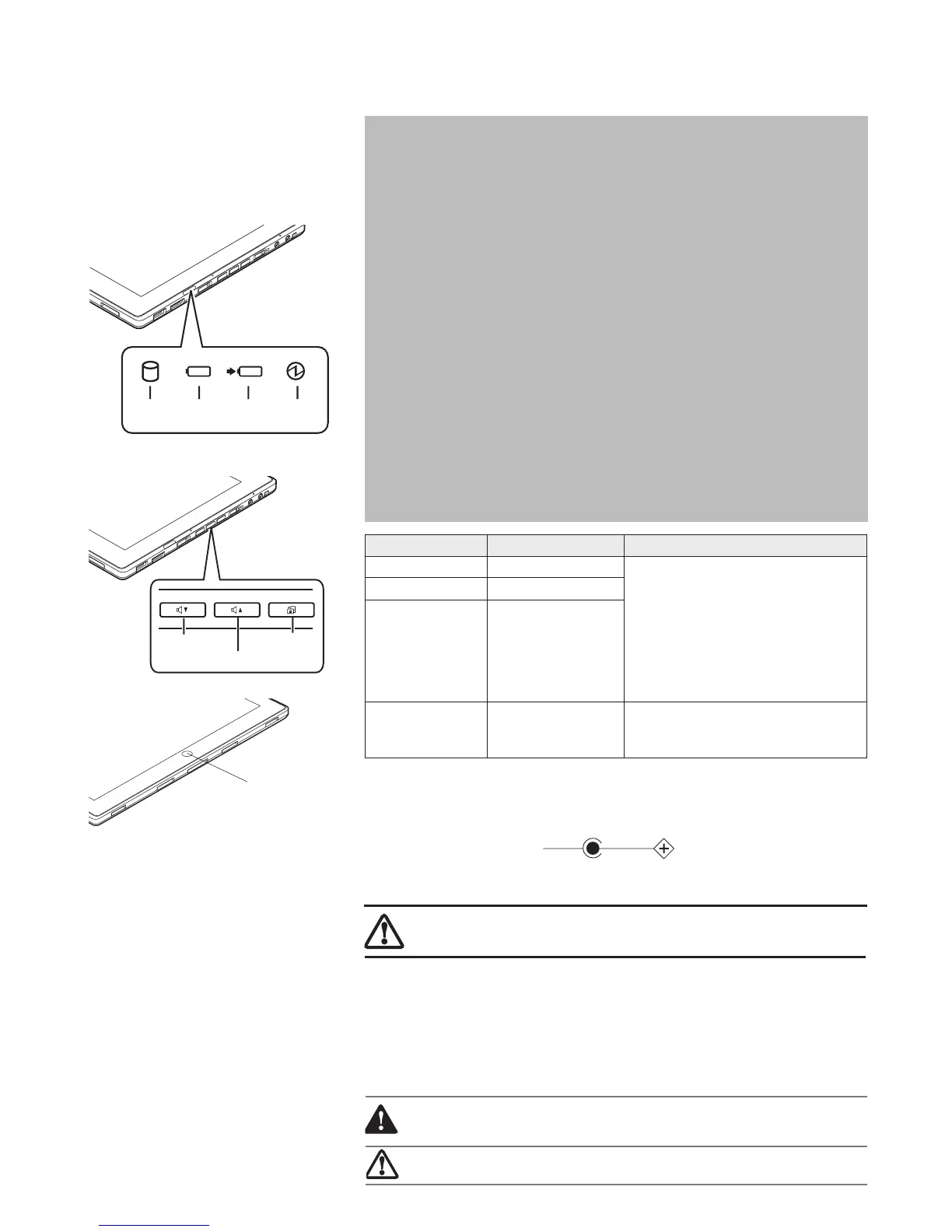

Common Indicators
Status Display Panel
The Status Display Panel is located below the
keyboard. The indicators are only visible when the
unit is on.
SSD
Access
Volume Down
Button
Volume Up Button
Rotation Button
Battery
Level
Battery
Charge
Power
Windows Button
Quick Tips
It takes approximately 3 hours to charge a fully discharged single battery with unit off or in
suspend mode.
Optimizing Battery Life
• Set power management setting for best battery life.
• Adjust display brightness levels to lowest comfortable setting.
• Utilize Suspend mode when not using your tablet.
• Read the Power Management section in your User’s Guide for additional features.
Heat damage to your Lithium ion battery
• Extended exposure to heat will have a negative impact on your battery. Do not expose your
tablet to excessive heat such as leaving it in the car on a hot summer day. If you are near an
outlet and playing a graphics-
intensive game, it is recommended that you remove the battery
from the unit to avoid exposing it to excessive heat.
Discharging your battery
• Full battery discharges (to unit shutdown or 0%) should be avoided. It is recommended that
batteries only be partially discharged to levels of 20-30% before recharging.
Prolonged storage
• If your tablet isn’t going to be used for a while, you should remove its Lithium ion battery. To
store a battery for long periods of time, its charge capacity should be around 40% and store
it in a cool dry place.
Purchasing a replacement battery
• Only purchase a replacement battery from Fujitsu. Ensure that you purchase a battery that
is specically designed for your model computer. It is recommended that you purchase
a replacement battery only when the current battery has noticeably degraded; unused
batteries will
still suffer degradation when stored.
Button Name Primary Function (Press) Description
Volume Down Button Volume Down When you press the Rotation Button, the
autorotation feature is turned off or turned
on, depending on its previous state. If you
press the Rotation button while the Fujitsu
logo appears during system boot, the BIOS
Setup Utility will open. While you are in the
BIOS Setup utility, the Volume up button
functions as a up arrow key and volume down
button functions as a down arrow key.
Volume UP Button Volume Up
Rotation Button Rotate Lock
Windows Button Quick access to the
Start menu
When you press and hold the Windows
button, then slide the power button, the
CTRL+ALT+DEL screen is brought up.
CAUTION: HOT SURFACE: THE BOTTOM OF THIS COMPUTER CAN BECOME HOT WHEN USED FOR
LONG PERIODS OF TIME. WHEN USING THIS DEVICE, TAKE CAUTION TO LIMIT LONG TERM OR
CONTINUOUS USE WHILE RESTING IT ON EXPOSED SKIN, SUCH AS THE LAP.
DANGER OF EXPLOSION IF LITHIUM (CLOCK) BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISPOSE OF USED BATTERIES
ACCORDING TO THE MANUFACTURER’S INSTRUCTION.
Important Safety Instructions
This unit requires a n AC adapter to operate. Use only UL Listed I. T .E. Adapters with an output rating o
f 19 VDC, with a current of 3.16A (60 W).
AC adapter output polarity:
When using y our Hybrid Tablet , basic safety precautions should always be followed to reduce the risk
of re, electric shock and injury t o persons, including the following:
• Do not use this product near water for example, near a bathtub, washbowl, kitchen sink or
laundry tub, in a wet basement or near a swimming pool.
• Uses only the power cord and batteries indicated in the User’s Guide for this product. Do not
dispose of batteries in a re. They may explode. Check with local codes for possible special
disposal instructions.
Save These Instructions
For Authorized Repair Technicians Only
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH THE SAME TYPE AND
RATING FUSE.

Fujitsu Stylistic Q702 Specifications

General

Form factor	Convertible (Detachable)
Product type	Hybrid (2-in-1)
Product color	Silver
Bus type	DMI
Stepping	L1
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor model	i3-3227U
System bus rate	5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-3200 Mobile Series
Processor socket	BGA 1023
Processor threads	4
Processor codename	Ivy Bridge
Processor frequency	1.9 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	17 W
CPU multiplier (bus/core ratio)	19
Maximum number of PCI Express lanes	16
GPS (satellite)	Yes
Motherboard chipset	Intel® QM77 Express
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 4 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Total storage capacity	128 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Display diagonal	11.6 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display brightness	400 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Maximum resolution	1920 x 1200 pixels
On-board graphics card ID	0x166
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card family	Intel® HD Graphics
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Audio system	Realtek ALC269
Rear camera resolution (numeric)	5 MP
3G standards	HSDPA, HSUPA, UMTS
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile network generation	3G
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
eSATA/USB 2.0 ports quantity	0
Keyboard layout	-
Trial software	McAfee Internet Security
Pre-installed software	Adobe Reader
Operating system installed	Windows 8 Pro
Processor code	SR0XF
Processor ARK ID	72057
Processor package size	31 x 24 (BGA1023) mm
Supported instruction sets	AVX
Intel Identity Protection Technology version	1.00
Battery capacity	3150 mAh
Battery life (max)	4.12 h
Battery recharge time	4.2 h
Number of battery cells	3
AC adapter power	60 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.16 A
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	195 mm
Width	302 mm
Height	12.7 mm
Weight	850 g
