SERVICE PARTS INFORMATION 11
04-124

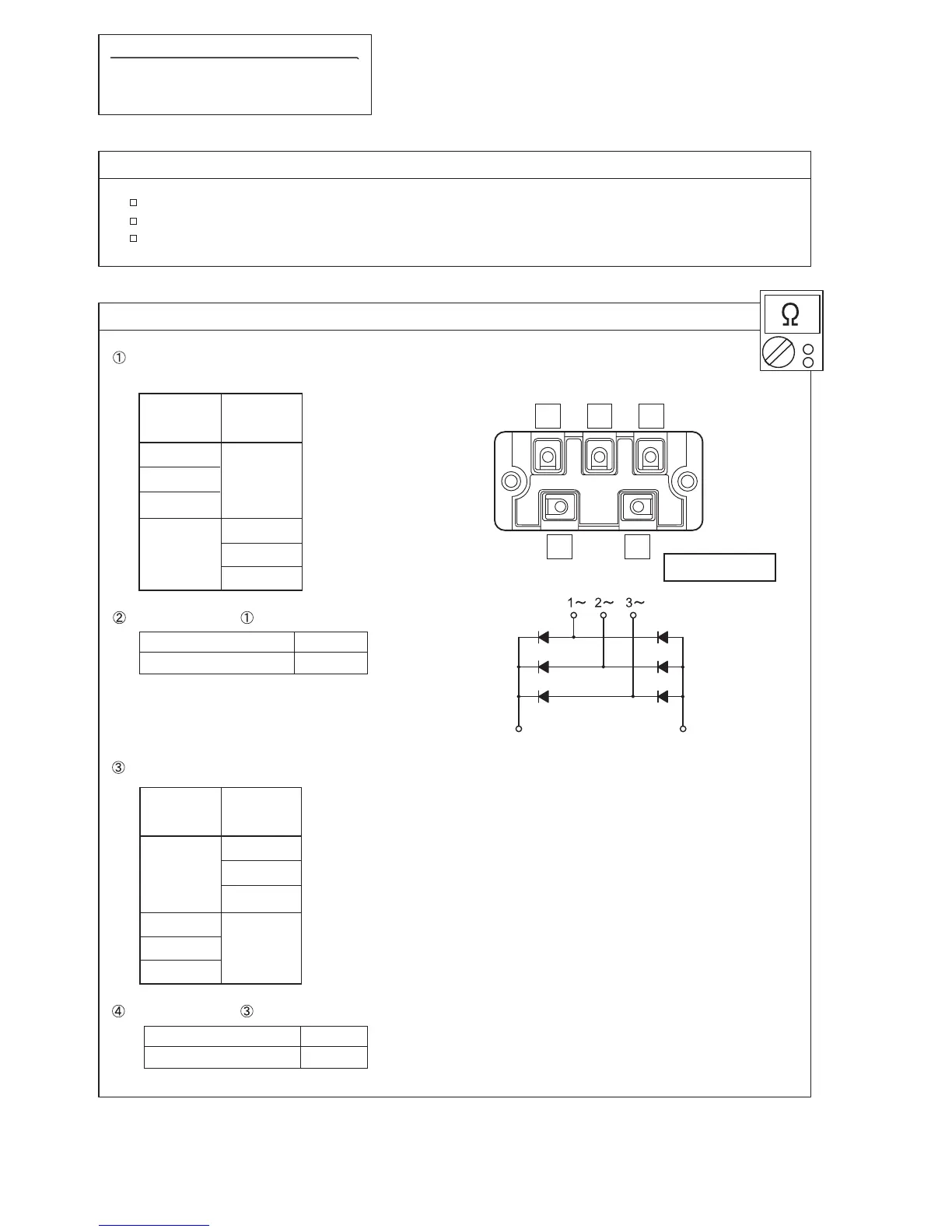

3-Phase Diode Bridge
Check Point 1 : Appearance check
Check Point 2 : Electric check
Pin 1
Pin 2
Pin 3
Pin 5
Pin 4
Pin 2
Pin 1
Pin 3
In the 3-phase diode bridge single part state, set the tester to the "Resistance" mode,
and check for open/short between the following terminals.
All 6 points shorted : Normal
1 or more points open : Defective
Tester + side
(red)
Tester - side
(black)
Tester + side
(red)
Tester - side
(black)
Pin 1
Pin 2
Pin 3
Pin 5
Pin 4
Pin 2
Pin 1
Pin 3
Set the tester to the "Resistance" mode, and check for open/short between the following terminals.
All 6 points open : Normal
1 or more points shorted : Defective
No fissures, breaks, damage, etc. at body and terminal section?
Is the rear of the body coated with silicone grease?
Are there no abnormalities at threaded parts (stripped threads, deformation, damage, etc.) ?
1 2 3
4 5
1
4 5
2 3
+ 4 - 5
Diode bridge
Judge the result of as follows:
Judge the result of as follows:
To Next Page
