WIRED REMOTE CONTROLLER WIRED REMOTE CONTROLLER

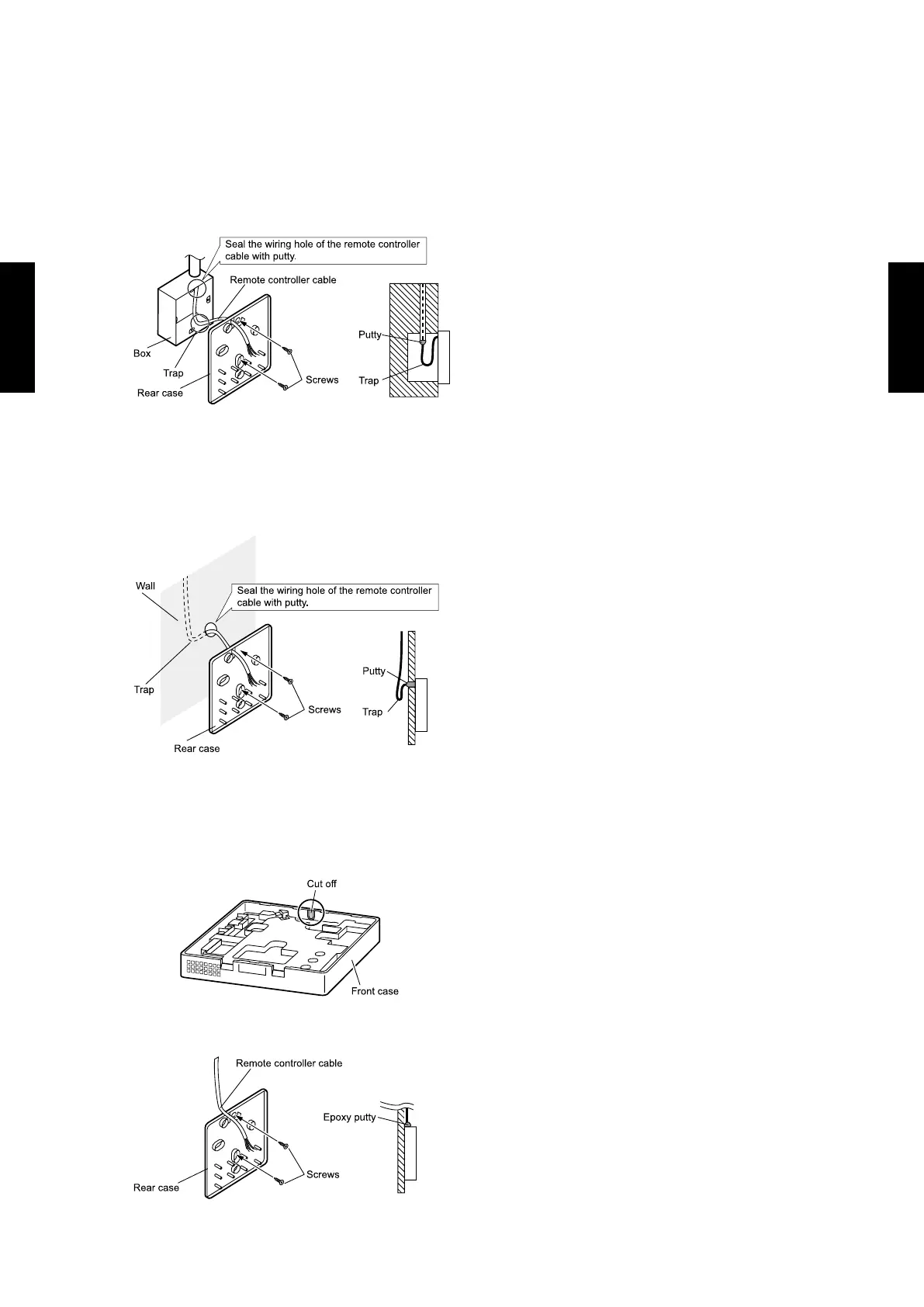

4) Installing the remote controller
A. When attaching to switch box:
(1) Seal the wiring hole of the remote controller cable.
(2) Put a remote controller cable through the hole of the rear case.
(3) Fix the rear case by securing it with attached screws (2 places).
B. When attaching to the wall directly:
(1) Seal the wiring hole of the remote controller cable.
(2) Put a remote controller cable through the back hole of the rear case of the main body.
(3) Fix the rear case by securing it with attached screws (2 places).
C. When routing the cable on-wall:
(1) Cut off the cable guide of the front case with using a knife or a nipper.
(2) Deburr the edge of the cable guide.
(3) Fix the rear case by securing it with attached screws (2 places).
