Fujitsu UTY-RVN*M Series User Manual

- (OP005 - 09) -
WIRED REMOTE CONTROLLER WIRED REMOTE CONTROLLER

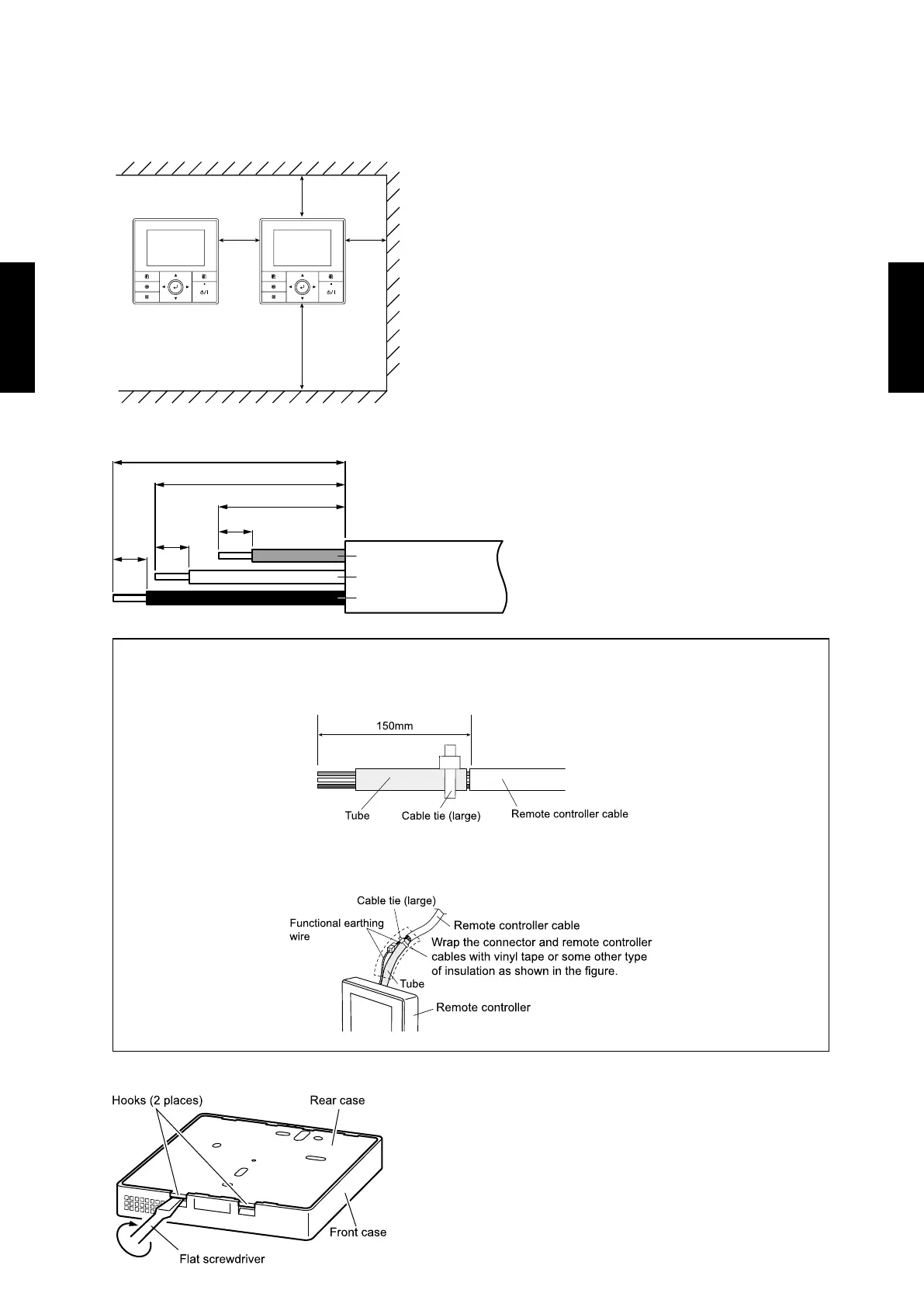

INSTALLATION6.
1) Installation space.
220 (8-21/32) or
more*
Unit : mm (in.)
30 (1-3/16)
or more
30 (1-3/16)
or more
30 (1-3/16)
or more
* Please secure enough space
where a at screwdriver to take off
a case can be inserted.
2) Processing of the remote controller cable.
8
(5/16)
8 (5/16)
8 (5/16)
30 (1-3/16)
45 (1-25/32)
55 (2-5/32)
Unit : mm (in.)
1. 12V (Red)
2. Signal (White)
3. COM (Black)
For UTY-RVNYN
Fix the near end of the Tube with the cable tie (large) firmly. ●
Do not x the functional earthing wire with the cable tie (large).
Connect the functional earthing wire of remote controller and the remote controller cable, ●
and perform the insulation.
3) Insert the at-blade screwdriver and remove the front case and rear case by twisting it slightly.
