INDOOR UNIT (setting by controller)7-2.
Function setting for indoor unit can be done by using the remote controller.
As for the "FUNCTION SETTING", refer to the DESIGN & TECHNICAL MANUAL for each
product.

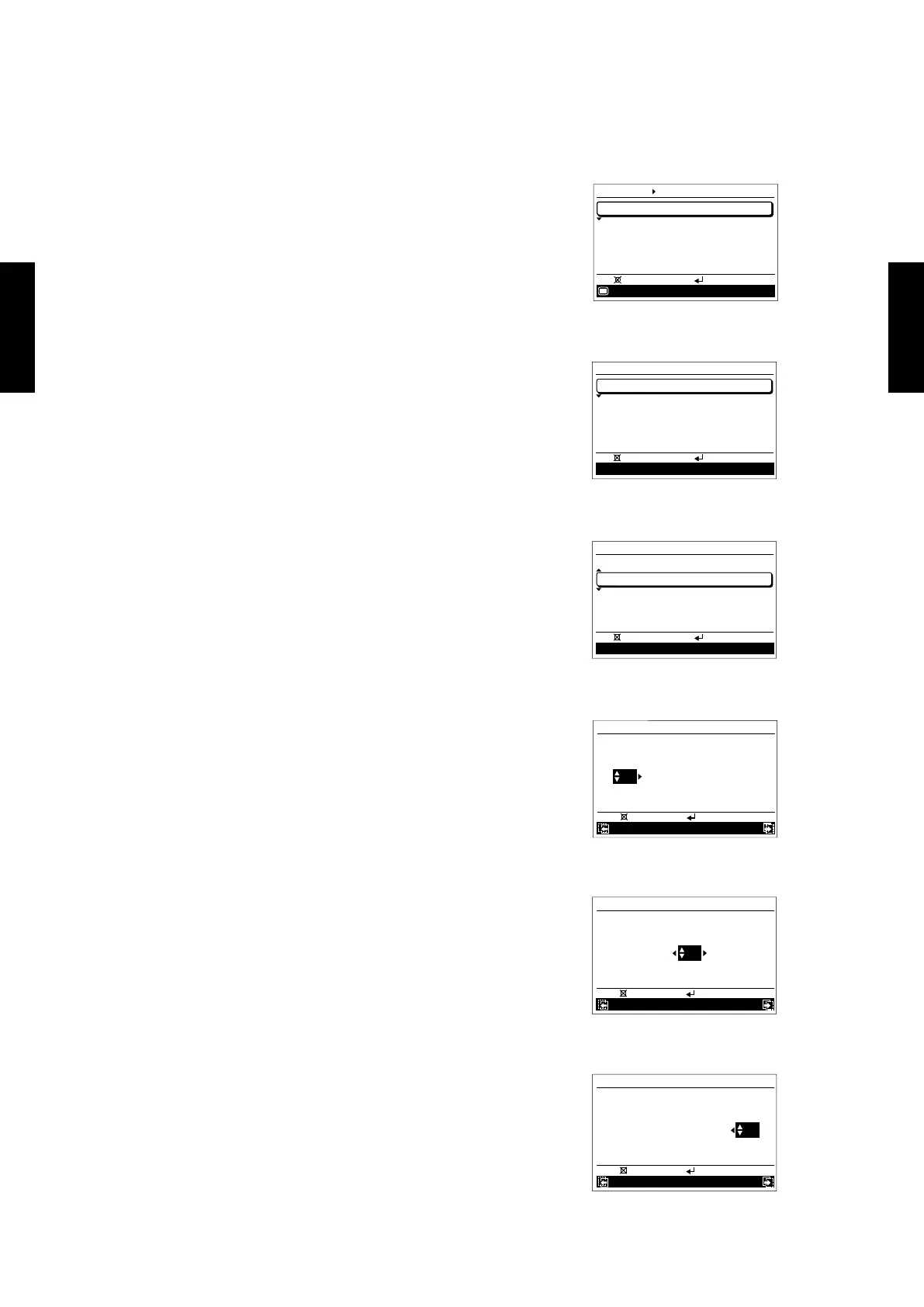

1) When [Menu button] is pressed twice while “Monitor”
screen is displayed, it switches to the “Submenu” screen.
If [Menu button] is pressed while the “Submenu” screen is
displayed, the display returns to the “Monitor” screen.
Back:
Setting:
Date and time
Submenu
[
1/2
]
Monitor
Screen
Filter sign
R.C. sensor control
Room temp. display
Off
Off
Mo
10:00
2) Press the [Screen switch button (Left)] and [Screen switch
button (Right)] simultaneously for 5 seconds to switch to
“Service” screen.
Back
Setting:
Service
Mo
10:00
Function setting
Error history
I.U.address verification
Version
Test run
3) Select [Function setting] with pressing the [Cursor button
(Up/Down)], and press the [Enter button].
Back
:
Setting:
Service
Mo
10:00
Function setting
Error history
I.U.address verification
Version
Test run
4) Select [R.C. address] of the target indoor unit with
pressing the [Cursor button (Up/Down)].
(R.C. Address : Remote Controller Address)
C
ancel
:
OK:
Function setting
Mo
10:00
R.C. Function Setting
address No. No.
00
00
00
Version Error history
5) Select the [Function No.] with pressing the [Cursor button
(Left/Right)], and select the Function No. to be set with
pressing the [Cursor button (Up/Down)].
C
ancel
:
OK:
Function setting
Mo
10:00
R.C. Function Setting
address No. No.
Version Error history
00 00 00
6) Select the [Setting No.] with pressing the [Cursor button
(Left/Right)], and select the Setting No. to be set with
pressing the [Cursor button (Up/Down)],and press the
[Enter button].
C
ancel
:
OK:
Function setting
Mo
10:00
R.C. Function Setting
address No. No.
Version Error history
00 00 00
To Next Page
