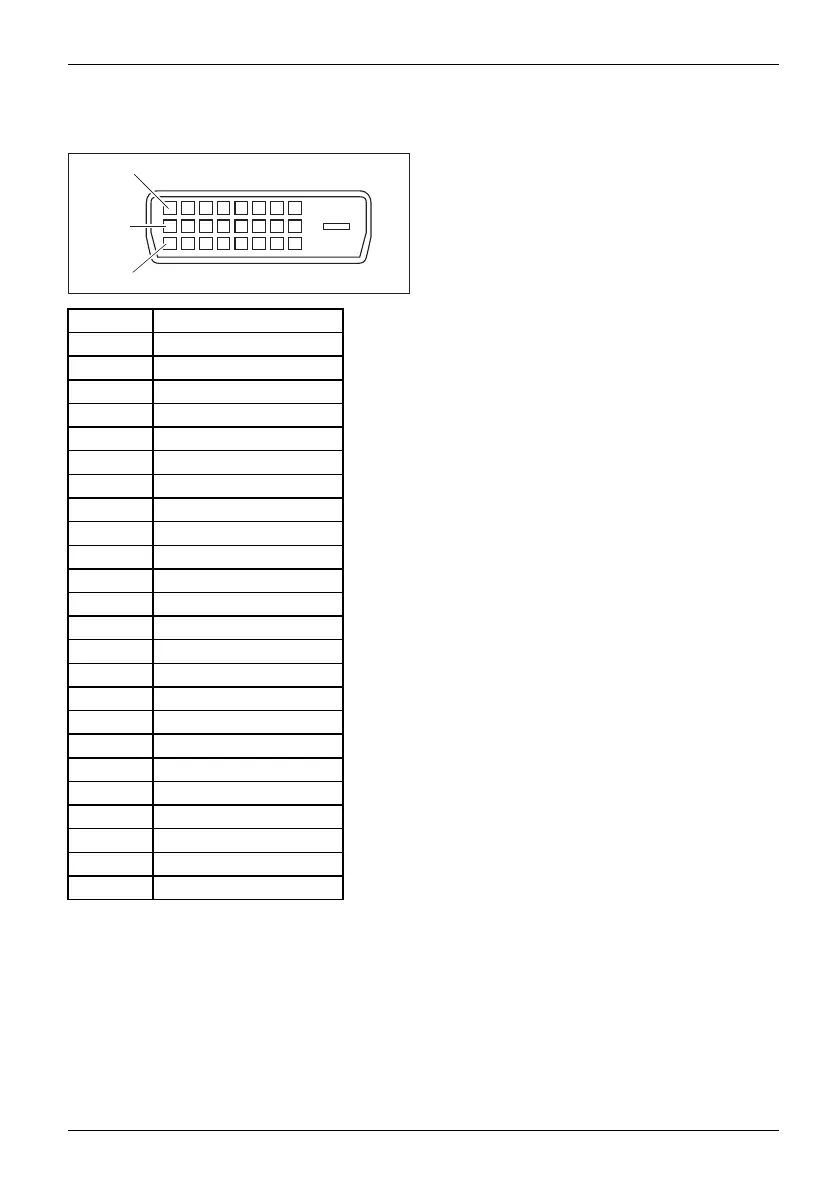

DVI-D-liitäntä
9
1
17
Napa Merkitys
1
TMDS Data2-
2
TMDS Data2+
3
TMDS Data 2/4 Shield
4 Not connected
5
Not connected
6
DDC Clock
7
DDC Data
8
Analogue Verti
cal S ync
9
TMDS Data1–
10
TMDS Data1+
11
TMDS Data 1/
3 Shield
12 Not connec
ted
13 Not conne
cted
14 +5V Power
15
Ground
16 Hot Plug Detect
17
TMDS Data0–
18
TMDS
Data0+
19
TMDS Data 0/5 Shield
20 Not connected
21 Not connected
22
TMDS Clock Shield
23
T
MDS Clock+
24
TMDS Clock-
