REMOTE CONTROL OVERVIEW
8
The Fukuda RC203X Infrared Remote Control enables the user to remotely (up to 20m), adjust
the following settings: Rotational speed, Scan angle & position, Manual Override (for single or
dual-axis grade/slope control). It cannot be used to turn the Laser ON or OFF (a feature not
available on any Fukuda laser level system).
TIP - it is often better to use the Remote Control rather than the FRE-203XR’s keypad, to avoid
disturbing the laser’s sensitive self levelling mechanism.

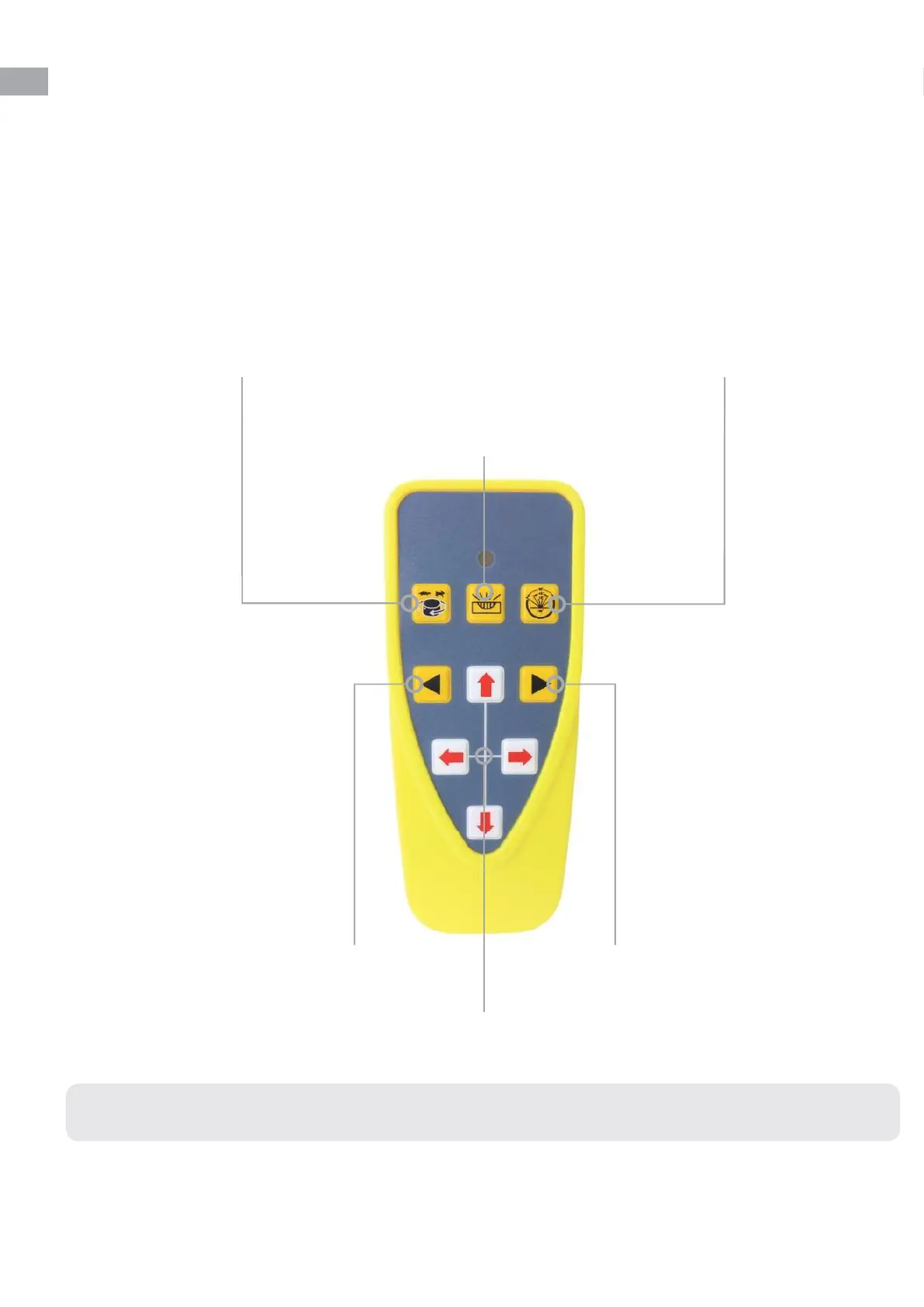

Scan Mode
(Stop Dot, 10°, 45°, 90°, 180° Line)
Rotational Speed Control - Tortoise/Hare.
Zero (Stop Dot), 60, 300 & 600rpm
Move Stop Dot / Scan Line Right
(Scan Mode Must Be Running)
Up / Down / Left & Right Arrows
(Grade / Slope Controls)
Manual Override
(Disables Self Levelling!)
Move Stop Dot / Scan Line Left
(Scan Mode Must Be Running)
Power Supply & Battery Replacement
● The RC203X remote is powered by 2 x AAA alkaline batteries which will be pre-installed.
● When required, open the rear battery compartment and fi t 2 x AAA alkaline replacement
batteries, taking care to ensure correct polarity.
