Replace injector on (oven grill burner)

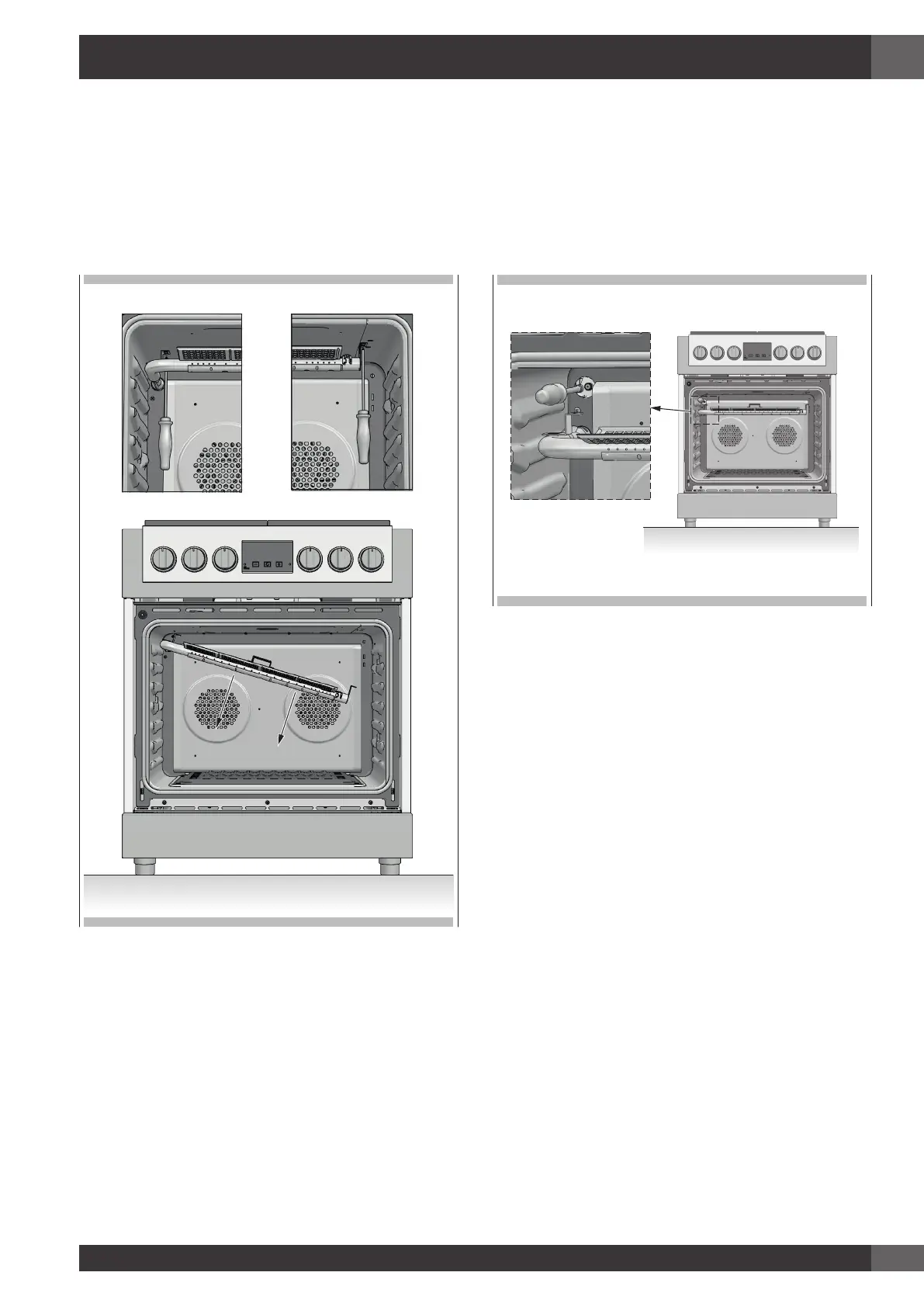

1. Remove the door as described in the paragraph “Door
removal”
2. Remove the screws securing the grill burner and withdraw
the burner from the support.
3. Remove the nozzle by turning 9-32” (7 mm) nut driver
counter clockwise.
4. Install the injectors supplied with this appliances in the
appropriate burner. The injectors have small number
stamped on the side, this number codes the orifice diameter
and its correct burner location (see figure of the paragraph
“Injectors position”).
5. Turn clockwise to tighten (tighten to a torque of 15 to 20
inch-lbs)
6. Replace all parts following the reverse order paying
attention to the correct placement of the burner.
7. Save the injectors removed from the appliances for future
use.
6 - Conversion for LP or NG Gas
