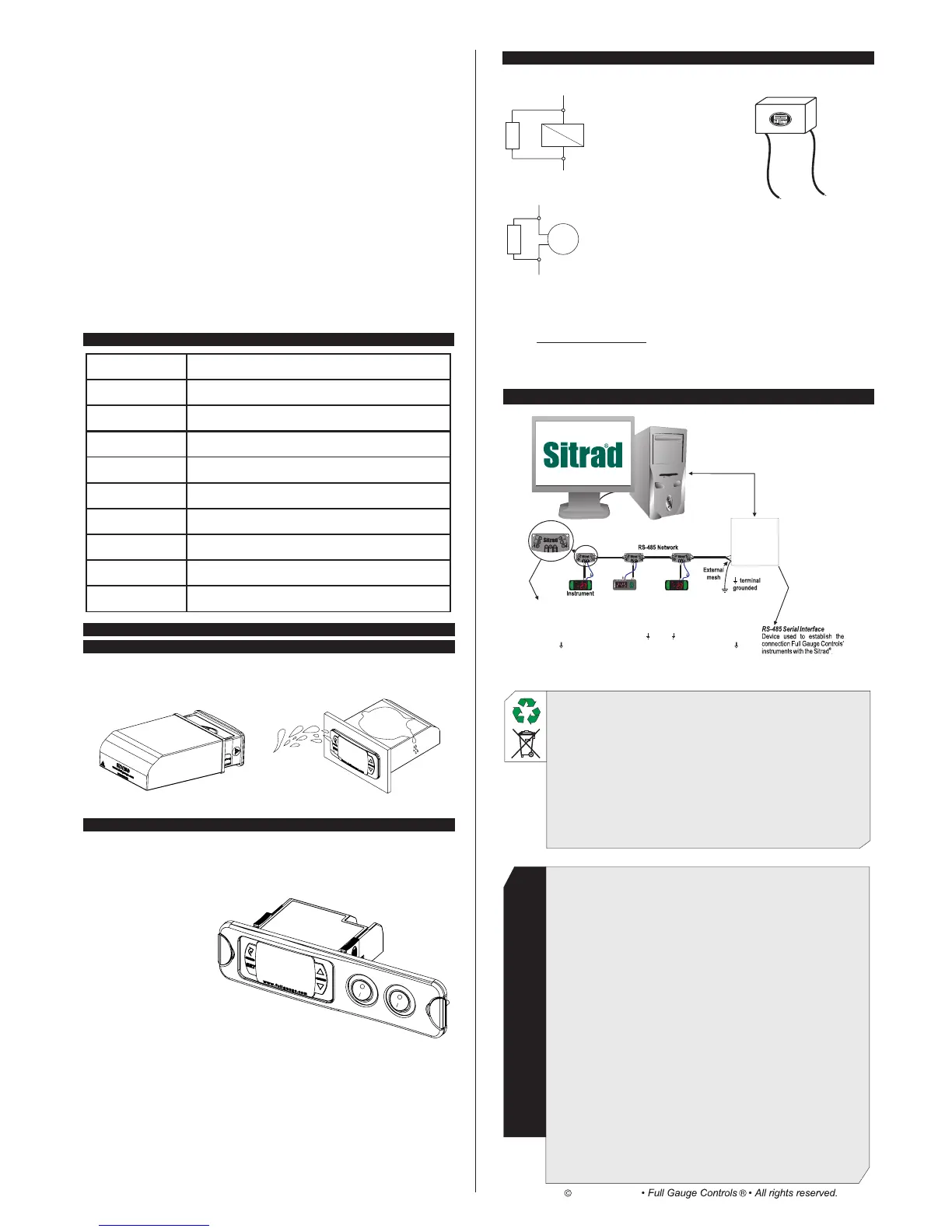

9. OPTIONAL ITEMS - Sold Separately
ENVIRONMENTAL INFORMATION
Package:
The packages material are 100% recyclable. Just dispose it through specialized
recyclers.
Products:
The electro components of Full Gauge controllers can be recycled or reused if it is
disassembled for specialized companies.
Disposal:
Do not burn or throw in domestic garbage the controllers which have reached the end-of-
life. Observe the respectively law in your region concerning the environmental
responsible manner of dispose its devices. In case of any doubts, contact Full Gauge
controls for assistance.
INTEGRATING CONTROLLERS, RS-485 SERIAL INTERFACE AND COMPUTER
A
A
B B
A B
A
B
A
A
B B
A B
A
A
B B
A B
A
A
B B
A B
*Connecting Block for Serial Communication
Used to connect more than one instrument to the Interface. The wire's connections must
be made in agreement with the following rules: terminal A of the instrument connects to
the terminal A of the c , that must be connected with the terminal A of the
Interface. Repeat the action for terminals B and , being the cable shield.
onnecting block
the terminal of onnecting block must be connected to the respective terminals of
each instrument.
c
Contact suppressor connection diagram
Suppressor
A1
A2
A1 and A2 are the
contactor coils.
Diagram for suppressor installation for direct drive load
inputs
Load
Suppressor
For direct activation the maximum
specified current should be taken
into consideration.
*Sold Separately
CONV. 32
or
CONV. 256
Copyright 2013
9.1 Ecase
Protective cover for controllers (Evolution line), which prevents the entrance of water and inner moisture.
It protects the product when washing is carried out in the location where the controller is installed.
9.2 Extension Frame
The Full Gauge Controls extension frame allows the installation of Evolution / Ri line with measures
76x34x77 mm (dimensions of the clipping for fixing in the extension frame is 71x29mm) in varied
situations, since it eliminates precision cut to embed the instrument. Allows customization via a sticker with
the brand and the company contact, and accompany two 10A (250 Vac) switches that can trigger internal
light, air curtain, on / off system or fan.
WARRANTY - FULL GAUGE CONTROLS
Products manufactured by Full Gauge Controls, as of May 2005, have a two (02) year
warranty, as of the date of the consigned sale, as stated on the invoice. They are guaranteed
against manufacturing defects that make them unsuitable or inadequate for their intended
use.
EXCEPTIONS TO WARRANTY
The Warranty does not cover expenses incurred for freight and/or insurance when sending
products with signs of defect or faulty functioning to an authorized provider of technical
support services. The following events are not covered either: natural wear and tear of parts;
external damage caused by falls or inadequate packaging of products.
LOSS OF WARRANTY
Products will automatically lose its warranty in the following cases:
- The instructions for assembly and use found in the technical description and installation
procedures in Standard IEC60364 are not obeyed;
- The product is submitted to conditions beyond the limits specified in its technical
description;
- The product is violated or repaired by any person not a member of the technical team of
Full Gauge Controls;
- Damage has been caused by a fall, blow and/or impact, infiltration of water, overload
and/or atmospheric discharge.
USE OF WARRANTY
To make use of the warranty, customers must send the properly packaged product to Full
Gauge Controls together with the invoice or receipt for the corresponding purchase. As much
information as possible in relation to the issue detected must be sent to facilitate analysis,
testing and execution of the service.
These procedures and any maintenance of the product may only be provided by Full
Gauge Controls Technical Support services in the company's headquarters at Rua Júlio de
Castilhos, 250 - CEP 92120-030 - Canoas - Rio Grande do Sul – Brasil
9.3 Electrical noise suppressing filter
8. SIGNALLING
Temperature sensor disconnected or damaged.
Functions .lockdown
Unlocking of functions.
Reconfigure the values of the functions.
Humidity sensor disconnected or damaged.
Buzzer inhibitor.
Receiving preset.
Operation successful.
Control functions shutdown.
[tErr]
[hErr]
[LOC,][0n,,]
[LOC,][0FF,]
[Inib]
[SPCr]
[done]
[Off,]
[eCal]
[pppp]
Please contact Full Gauge Controls.
RC FILTER
F39 - Display mode:
[,,,0]Alternated indication of temperature and humidity
[,,,1]Only indication of temperature
[,,,2]Only indication of humidity
F40 - Temperature display offset:
It allows to compensate eventual shunting lines in the reading of temperature proceeding from the
exchange of the sensor or cable lenght alteration.
F41 - Humidity display offset:
It allows to compensate eventual shunting lines in the reading of humidity proceeding from the
exchange of the sensor or cable lenght alteration.
F42 - Time for functions lockdown:
With this setting enabled, the setpoint and the other parameters are protected against unauthorized
changes. With the lockdown of the controller the user will only be able to visualize the setpoint and the
parameters. To lock the functions, see chapter 6.3.2 - Basic Operations, Functions lockdown item.
F43 - Control functions shutdown:
It allows to switch off the output to perform maintenance, see chapter 6.3.3 - Basic Operations, Control
functions shutdown item.
F44 - Network equipment address:
®
This is the device address for communication with Sitrad software.
Note: You cannot have two or more devices with the same address in the network.
IMPORTANT
According to the chapters from the IEC60364 standard:
1: Install protectors against over voltage on power supply
2: Sensor cables and computer signals can be together, however not at the same place where power
supply and load wires pass for
3: Install suppresor of transient in parallel to loads to increase the usefull life of the relays
Note: The sensor cable lenght can be increased by the user until 200 meters using PP 2 x 24 AWG
cable.
