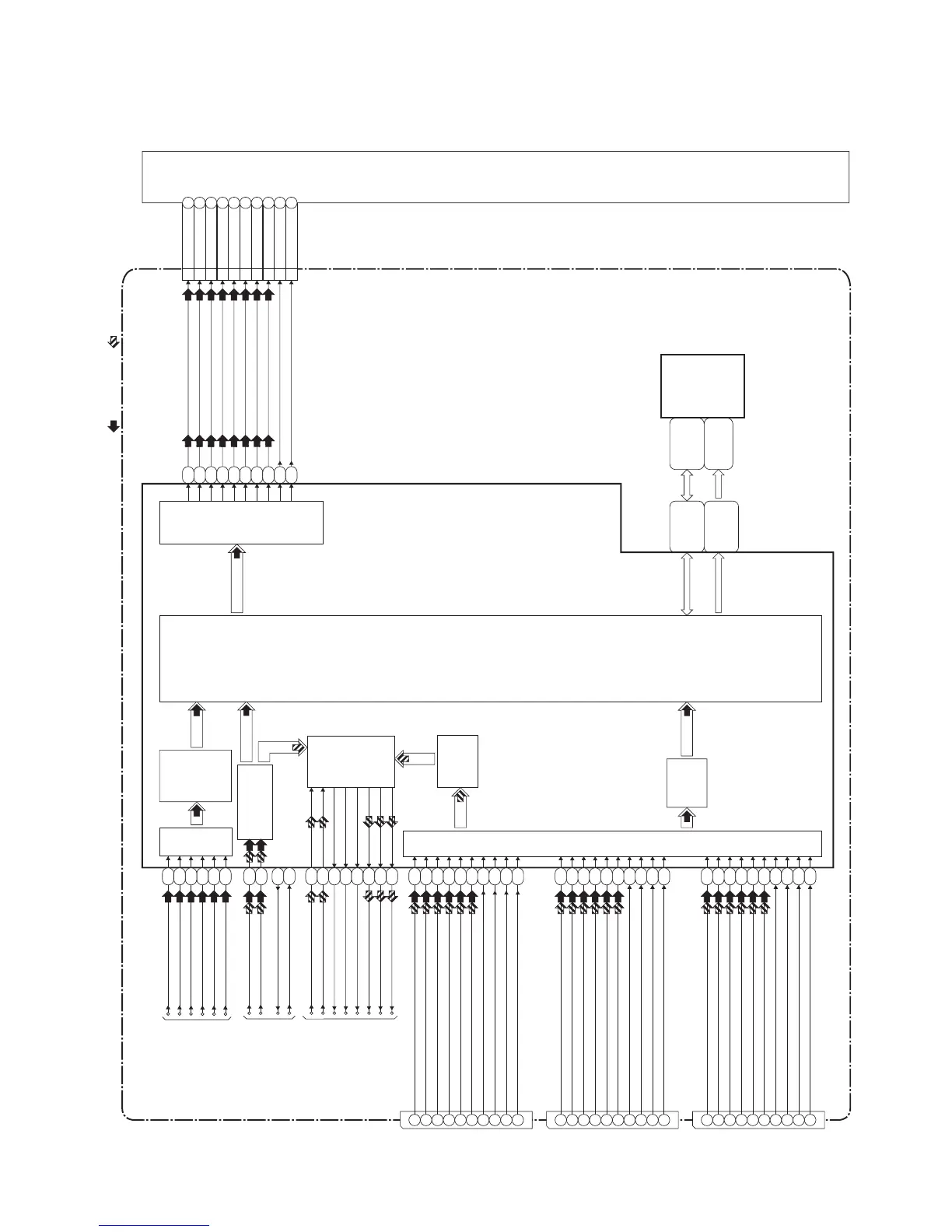

Digital Signal Process Block Diagram [LC321SSX , 32MF369B/F7 ]
A91FSBLD
DIGITAL MAIN CBA UNIT
IC3301 (DIGITAL SIGNAL PROCESS)
LCD MODULE ASSEMBLY
CN3902
LVDS-D1E(+)11 LVDS-D1E(-)12 LVDS-D0E(+)14 LVDS-D0E(-)15 LVDS-D2E(+)8 LVDS-D2E(-)9 LVDS-D3E(+)2 LVDS-D3E(-)3 LVDS-CE(+)5 LVDS-CE(-)6
AD23
AD24
AE23
AF23
AF22
AE22
AD21
AD22
AF24
AE24
LVDS TX
DIGITAL SIGNAL PROCESS
A/D CONVERTER
S-VIDEO-Y-IN
SW
V1
U2 U1
S-VIDEO-C-IN
U3
VIDEO-IN
V3
COM-VIDEO-Pr-IN COM-VIDEO-Pb-IN
COM-VIDEO-Y-IN
AA3
IF-AGC
HDMI-IN1 HDMI-IN2
JK3701
TMDS-D0(+) TMDS-D0(-) TMDS-D1(+) TMDS-D1(-) TMDS-D2(+) TMDS-D2(-) SDA SCL
7 9 4 6 1 3
10 12 16 15
7 9 4 6 1 3
10 12 16 15
JK3702
TMDS-D0(+) TMDS-D0(-) TMDS-D1(+) TMDS-D1(-) TMDS-D2(+) TMDS-D2(-) TMDS-CLOCK(+) TMDS-CLOCK(-) SDA SCL
A9 B9
C8 C9
B8 A8
B10 A10 A11 B11
A5 B5
C4 C5
B4 A4 B6 A6 A7 B7
TMDS-CLOCK(+) TMDS-CLOCK(-)
DEMODULATOR /MPEG DECODER
AE2
AF7
AUDIO I/F
TO AUDIO BLOCK DIAGRAM
ACLK A DATA 1 BCLK LRCLK A DATA 0 SPDIF
AD14
AD9
AD12 AD10 AD11
AC10
DATA(0-15) ADDESS(0-12)
IC3201
A13-15,A18, A21-23,B13-15, B17,B19-23
C15,C17-19, C23,C24,D14, D15,D17-19, D22,D23
B1,B9,C2,C8,
D1,D3,D7,D9,
F1,F9,G2,G8,
H1,H3,H7,H9
M2,M3,M7,M8, N2,N3,N7,N8, P2,P3,P7,P8,R2
(DDR2 SDRAM)
HDMI I/F
HDMI-IN3
7 9 4 6 1 3
10 12 16 15
JK3703
TMDS-D0(+) TMDS-D0(-) TMDS-D1(+) TMDS-D1(-) TMDS-D2(+) TMDS-D2(-) TMDS-CLOCK(+) TMDS-CLOCK(-) SDA SCL
B1 B2
C1 C2 D1 D2
A1 A2 A3 B3
AUDIO DECODER
DIF-OUT1 DIF-OUT2 IF-AGC
TO VIDEO BLOCK DIAGRAM TO VIDEO BLOCK DIAGRAM
VIDEO DECODER
AF2
S-VIDEO-SW
C6
S-VIDEO-SW
M2
AUDIO(R)
M1
AUDIO(L)
VIDEO SIGNAL
AUDIO SIGNAL
