FUNAI TD6D-M101 - Digital Signal Process Block Diagram

1-14-3

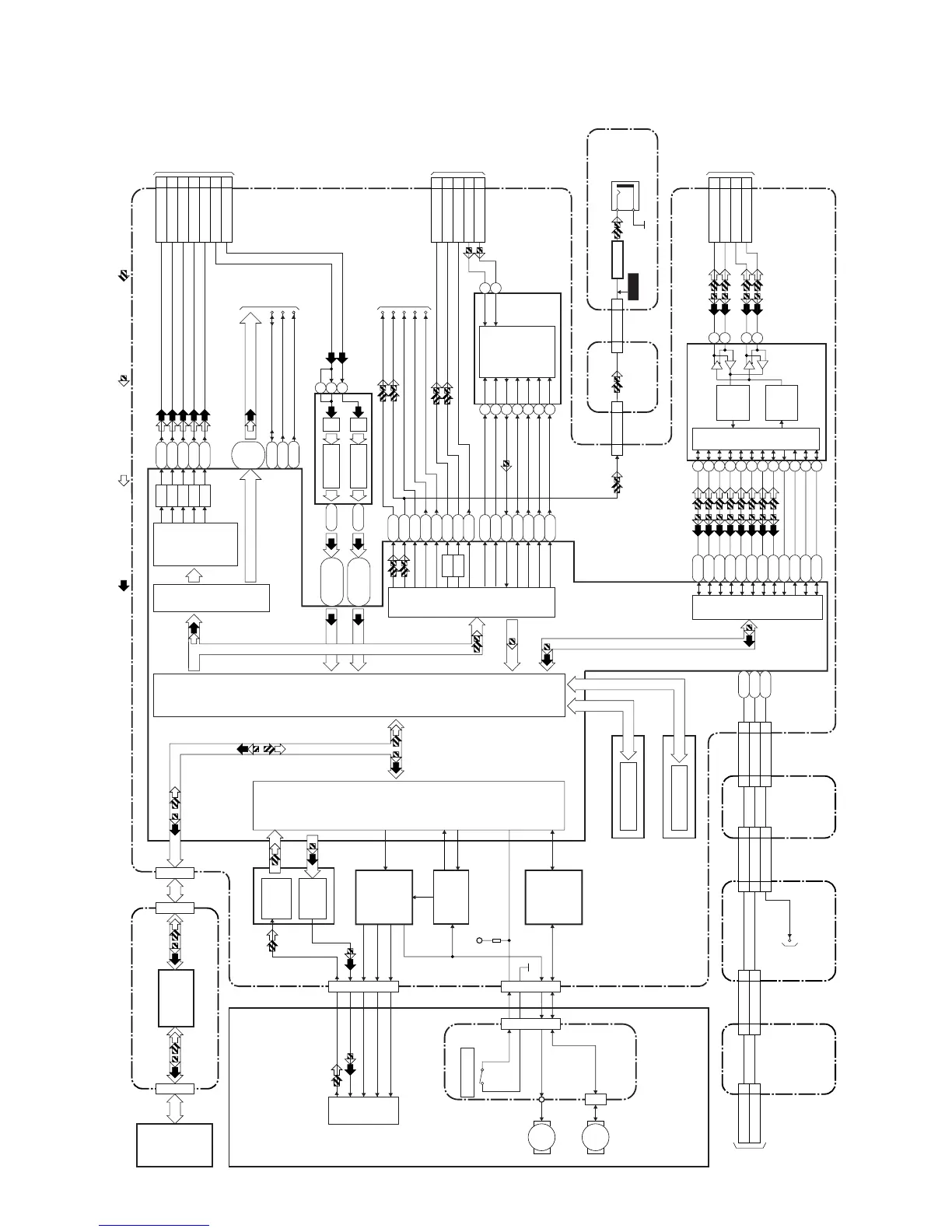

Digital Signal Process Block Diagram
E3TFGBLD
IC101
FRONT-END DIGITAL SIGNAL PROCESS
IC201
RF/ ERROR AMP
IC301
MOTOR DRIVER MOTOR DRIVER
IC202
OP AMP
IC302
DVD/HDD MAIN CBA
TO AUDIO SELECTOR BLOCK DIAGRAM (CN1502)
F2 F1
Y26
U24
K2 K1
N4
M3
R4
E12
D/A D/A
AUDIO I/F
VIDEO ENCODER
BACK-END DIGITAL SIGNAL PROCESS
VIDEO I/F
TRAY OPEN
CN201
DVD MECHANISM
TILT TRACKING FOCUS
PICK -UP
SLED MOTOR
M
PB VIDEO SIGNALREC VIDEO SIGNAL PB AUDIO SIGNALREC AUDIO SIGNAL
LPC
(MAIN MICRO CONTROLLER/MPEG2 AV CODEC)
TO VIDEO BLOCK DIAGRAM
TO VIDEO BLOCK DIAGRAM
TO VIDEO SELECTOR BLOCK DIAGRAM (CN1502)
CN1001
SPINDLE MOTOR
M
CN1002
RELAY CBA
CN652
CN301
P-ON+3.3V
IC701 (VIDEO DECODER)
DECODER A/D
45-50
U4,W1,W3,
Y2,AA1,AA2
A5,B5-B7
,C6,C7,
D6,D7
DECODER
A/D
39-44
P3,T3,T5,
U2,U3,V1
10
8
13
K5
M5
J3
D/A D/A D/A
HDMI-SDA
HDMI-SCL
HDMI-SDA
HDMI-SCL
YC(0-7)
N23 U25
SPDIF
PCM-BCK
PCM-LRCK
PCM-SCLK
PCM-DATA0
P1
D3 D1
N2
M1
N3
M2
VIDEO-CLOCK
VIDEO-CLOCK
C5
IC104, IC105
(FLASH MEMORY)
LINK I/F
LINK I/F
RECEIVE DATA DECODER TRANSMIT DATA ENCODER
FLASH MEMORY
IC102 (DDR2 SDRAM)
DDR SDRAM
DM DP
IC901 (IEEE1394 I/F)
CN901
TO DV JACK (W11)
TO POWER SUPPLY BLOCK DIAGAM
AA3
AC2
Y5
J5
H4
AB3
AC3
AA4 AE1 AA5
AD1
Y4
W5
AC1
4
30
5 6 7 8
1
48
2
3
29 28 27
9
10
11
D/A D/A
HARD DISK DRIVE
33SPDIF
CN101
CN1001
CL1001
28 28SPDIF
CN1503
DIGITAL AUDIO OUT (COAXIAL)
JK1502 (REAR)
BUFFER
Q1535
AV CBA
POWER SUPPLY CBA
WF10
IC802 (AUDIO A/D CONVERTER)
AUDIO A/D CONVERTER
7 8 9
13 14
6
R-CH L-CH
10 11 12
17
AUDIO(L)-OUT
15
AUDIO(R)-OUT
18
DVD/HDD-AUDIO-MUTE
11AUDIO(L)-IN 13AUDIO(R)-IN
1TPA1P
2TPA1N 4TPB1P
5TPB1N
CN701 CN701
VIDEO-Y/CVBS-IN
20
VIDEO-C-IN
22
VIDEO-Y(I/P)-OUT
7
VIDEO-Pr/Cr-OUT
5
VIDEO-Pb/Cb-OUT
3
VIDEO-Y(I)-OUT
1
VIDEO-C-OUT
9
SATA INTERFACE
IC5001
CN5001
SATA CBA UNIT
CN5003
AV CBA
CN1504 CN981
FUNCTION CBA
CN3604
CN3011
CN506
DP
15
15
DM
13
13
DP
4
4
VBUS
B1
V-BUS
11
11
V-BUS
1
1
DM
3
3
USB CBA
CN6002
CN6001
DP
2
2
DM
3
3
DM 3
DP 2
USB JACK
V-BUS
