31

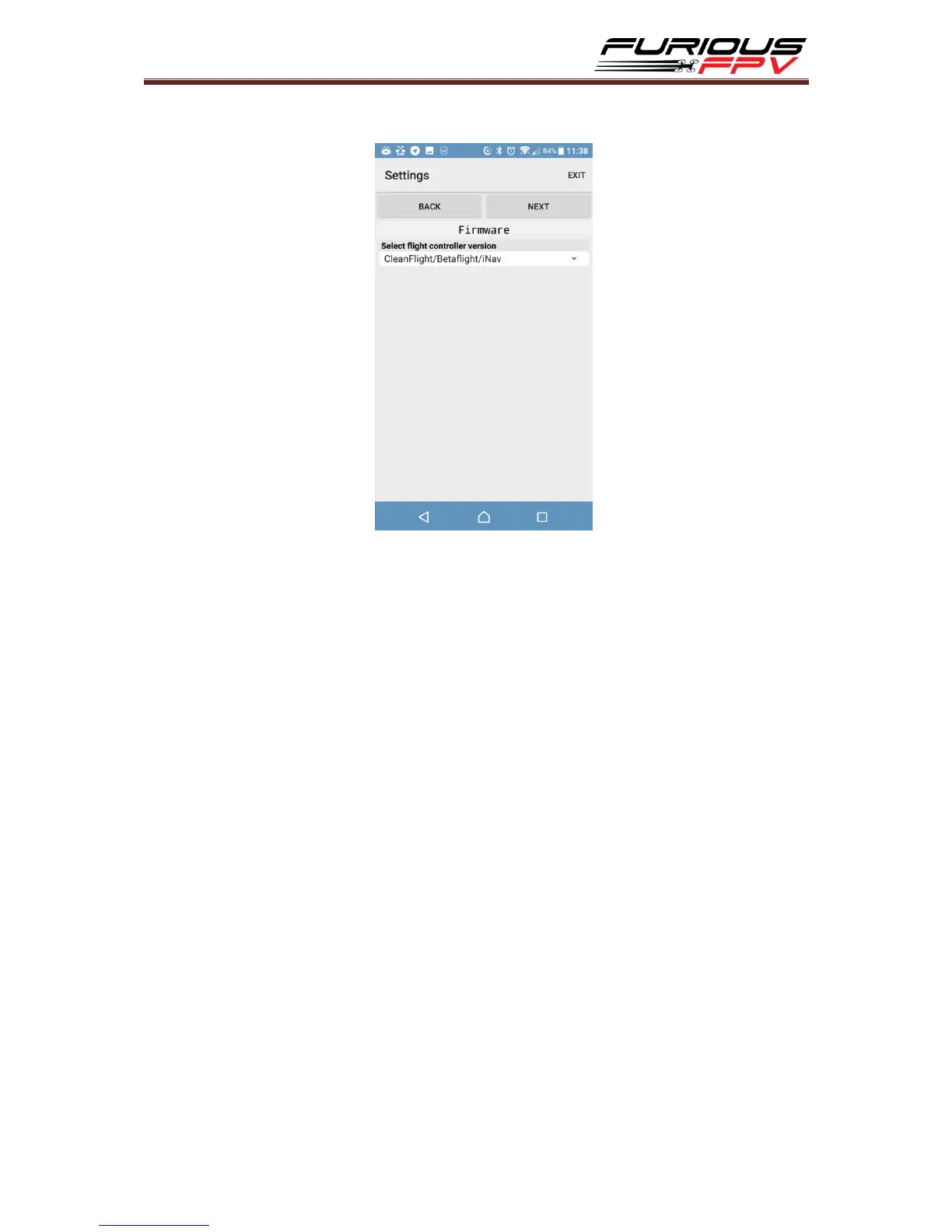

Click next icon and select Firmware is Cleanflight/Betaflight/INAV.
Click next and select option same as units or another options. After app
will come back home screen.
4. At Home Screen, please click CONNECT to connect your app to FC.
How To Setup Failsafe
Setting up Return Home for Failsafe to purpose: when Wing lost signal with
Transmitter, Wing will auto return home afterward
Step 1: Configure Receiver
There are two options to configure:
Option 1: Cut off the channel
Option 2: Set Position
1. Go into Modes tab and select a switch for Failsafe
2. Set Switches and Sticks on your transmitter to the following below
Throttle: 0% (No throttle)
Aileron: 50% (No input, Stick center)
Rudder: 50% (No input, Stick center)
Elevator: 50% (No input, Stick center)
Failsafe mode: activated
Arm switch: Disarmed (If you use stick arming you can skip this)
To Next Page
