How To Connect INAV Wireless To F-35 Via TBS
Crossfire TX
The Device:
TBS Micro RX V2 + TBS Crossfire TX
Micro RX cable for F-35 + TBS-External Cable for F-35 (Include in the package)
App: INAV Configurator on PC, EZ-Gui on Android.
Video: Wireless connection to INAV via TBS Crossfire Tx + TBS Micro Rx V2

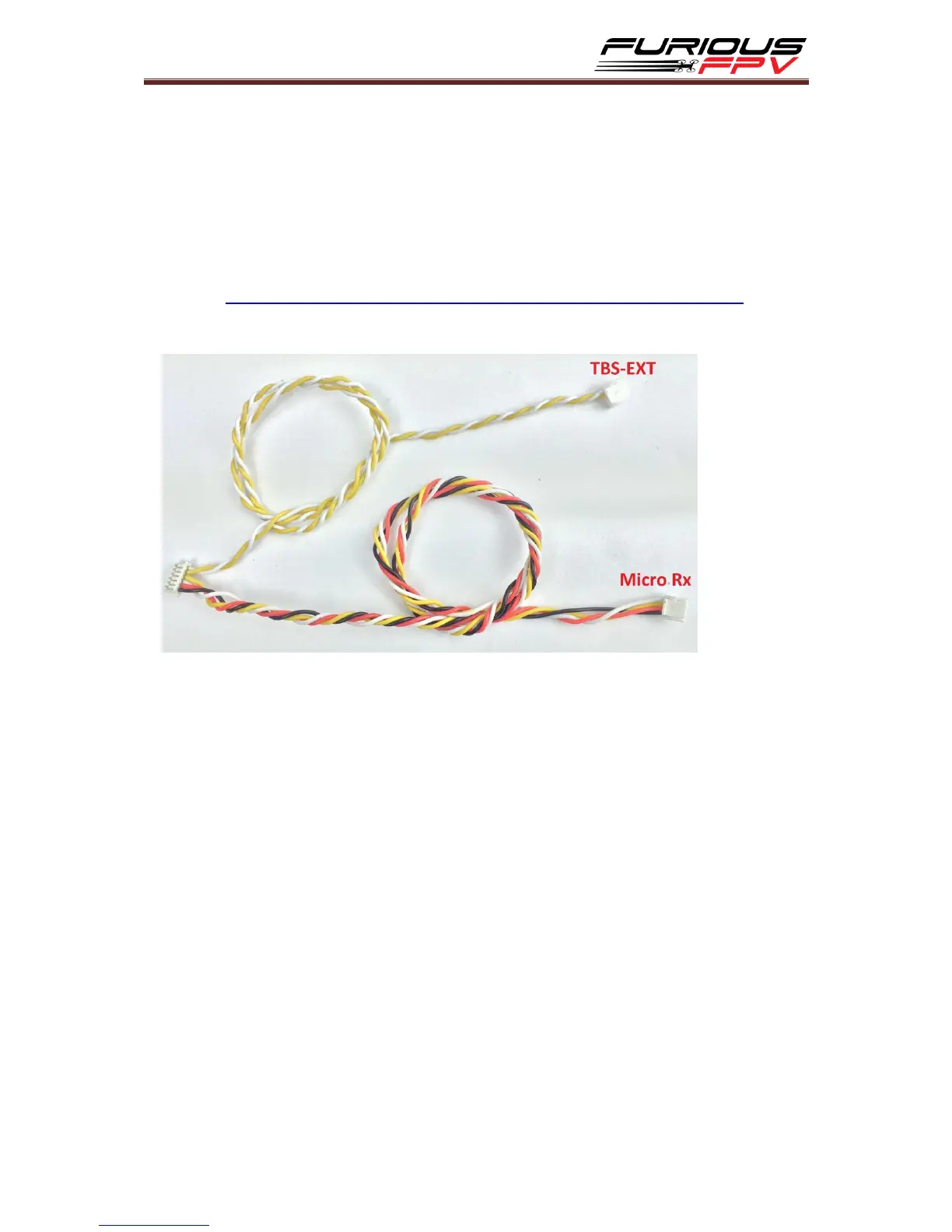

Step 1: Using TBS-Ext cable plug to Micro RX cable like bellow picture:
Step 2: Mapping Output channels for TBS Micro RX.
Output 1: CRSF TX
Output 2: CRSF RX
Output 3: Serial RX
Output 4: Serial TX
Step 3: Configure your TBS Crossfire Module.
Please select Bluetooth protocol of TBS TX module is BRIDGE.
*Note: Verify that you turn on Telemetry on Receiver
Step 4: Connect your device to use Configurator app.
Option1: Connect with PC:
1. Use Bluetooth on PC search and add your TBS Module Bluetooth. Normally
TBS have name is Crossfire#### (# is number).
2. Open INAV Configurator on PC, then check new Port.Com number using to
connect TBS Crossfire TX and select it. (You can check it in Device Manager).
And select Baud rate is 57600.
3. Turn on WIRELESS mode of INAV at the Right-Top interface of app. Then, click
Connect button to connect.
