Furrion FDFS43M7A User Manual

10

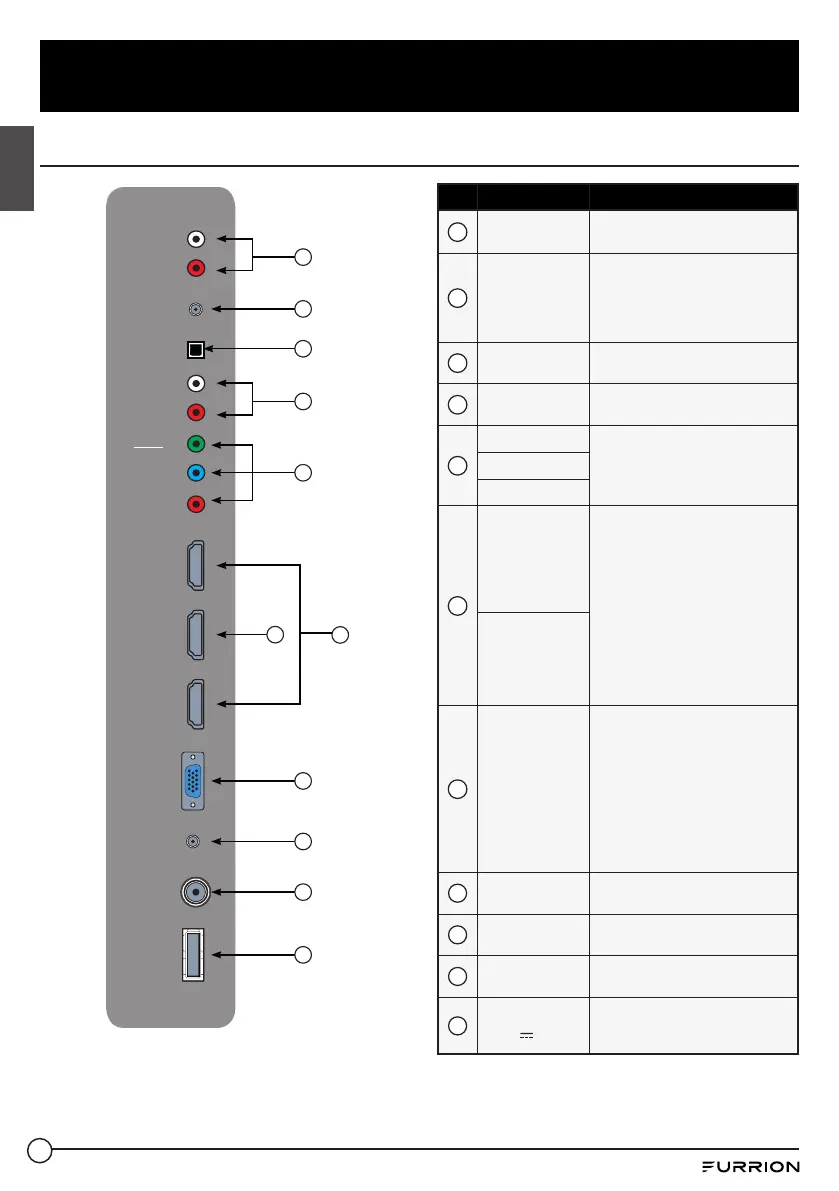

Function Overview
English
* The configuration of the connection ports
may vary from model to model.
EARPHONE
OUT
USB
AUDIO
IN
L- -R
AUDIO
OUT
R- -L
R
L
OPTICAL
OUT
HDMI 1 IN
2
3
5
6
8
9
10
11
4
HDMI 2 IN
ARC
HDMI 3 IN
VGA IN
PC AUDIO
IN
R
L
1
7
Pb
Pr
RF IN
Y
VIDEO
Rear Panel
1
L AUDIO
OUTR
Connects to the AUDIO IN ports
of an audio device
2
HEADPHONE
Connects to 3-conductor (TRS)
phone connector of earphone,
compatibility of earphone with
4-conductor (TRRS) phone
connector is not guaranteed.
3
OPTICAL
Connects to the OPTICAL
AUDIO IN port of an audio device.
4
L-AUDIO IN-R
Connects to the AUDIO OUT
ports of an audio device.
5
VIDEO/Y
Connects to the COMPONENT
VIDEO OUT ports of a DVD
Player, Cable Box or other
compatible device.
P
b
P
r
6
HDMI 1
Connects to the HDMI OUT port
of a DVD Player, Games Console,
Cable, Box or other HDMI device.
CEC Consumer Electronics
Control
When connected to the
CEC compatible Furrion
Entertainment Systems or
other CEC Compatible devices,
the TV links with the system to
give extra functionality. Please
see page 17
HDMI 3
7
HDMI 2 ARC
Connects to the HDMI OUT port
of a DVD Player, Games Console,
Cable Box or other HDMI device.
ARC Audio Return Channel
When connected with a HDMI
1.4 cable to an ARC compatible
audio system, the TV links with
the device to give extra audio
functionality.
Please see page 17
8
VGA
Connects to the VGA OUT port of
a PC to use the TV as a monitor.
9
PC AUDIO
Connects to the AUDIO OUT
port of a PC.
10
RF
Connects to the ANTENNA,
CABLE, or CABLE BOX
11
USB
5V 0.5A
USB Port, view pictures and
listen to MP3s via a compatible
USB stick
