Function Overview
* The configuration of the connection ports may
vary from model to model.
1
EARPHONE
OUT
Connects to 3-conductor (TRS)
phone connector of earphone,
compatibility of earphone with
4-conductor (TRRS) phone
connector is not guaranteed
2
OPTICAL
OUT
Connects to the OPTICAL AUDIO IN
port of an audio device.
3
AV IN
Connects to the COMPOSITE
VIDEO/ AUDIO OUT ports of a
DVD Player, Cable Box or other
compatible device
4
USB IN
USB Port, view pictures/movies/text
and listen to MP3s via a compatible
USB stick
5
HDMI 1 IN
(ARC)
Connects to the HDMI OUT port of
a DVD Player, Games Console, Cable
Box or other HDMI device.
ARC Audio Return Channel
When connected with a HDMI 1.4
cable to an ARC compatible audio
system, the TV links with the device
to give extra audio functionality
Please see page13
6
HDMI 2 IN Connects to the HDMI OUT port of a
DVD Player, Games Console, Cable
Box or other HDMI device.
CEC Consumer Electronics Control
When connected to the CEC
compatible Furrion Entertainment
Systems or other CEC Compatible
devices, the TV links with the system
to give extra functionality. Please see
page13.
HDMI 3 IN
7
VGA IN
Connects to the VGA OUT port of a
PC to use the TV as a monitor.
8
PC AUDIO
IN
Connects to the AUDIO OUT port
of a PC.
9
RF IN
Connects to the ANTENNA, CABLE,
or CABLE BOX
10
VIDEO OUT
Connects to the VIDEO IN ports of
another TV
11
AUDIO OUT
Connects to the AUDIO IN ports of
an audio device
12
YP
b
P
r
Connect to the COMPONENT VIDEO
OUT ports of a DVD Player, Cable
Box or other compatible device

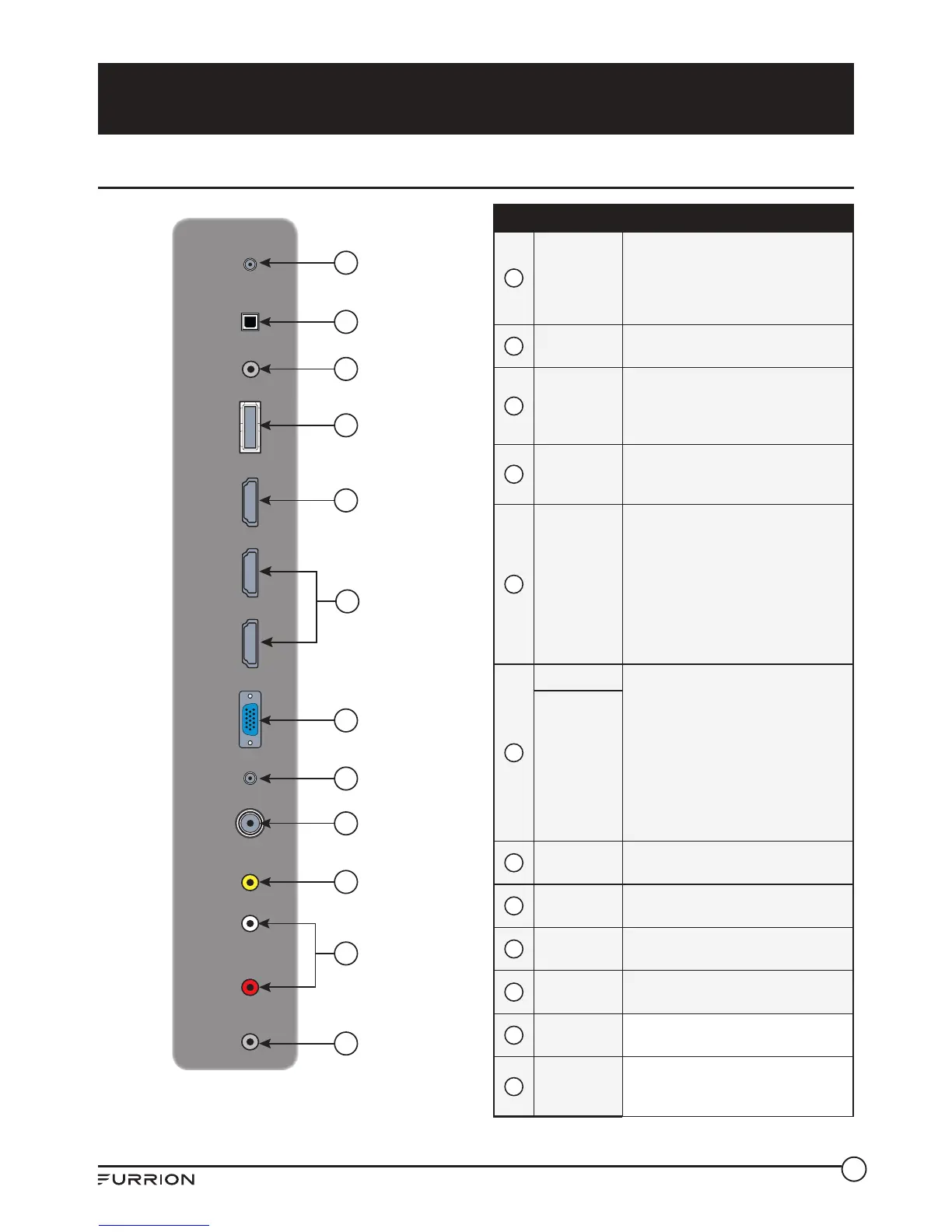

Rear Panel
EARPHONE
OUT
OPTICAL
OUT
AV IN
USB IN
HDMI 1 IN
ARC
HDMI 2 IN
HDMI 3 IN
VGA IN
PC AUDIO
IN
RF IN
VIDEO OUT
AUDIO OUT
YP
b
P
r
1
2
3
4
5
7
8
9
10
12
11
6
To Next Page
