Install Cameras
Install Doorway Security/Rear Camera

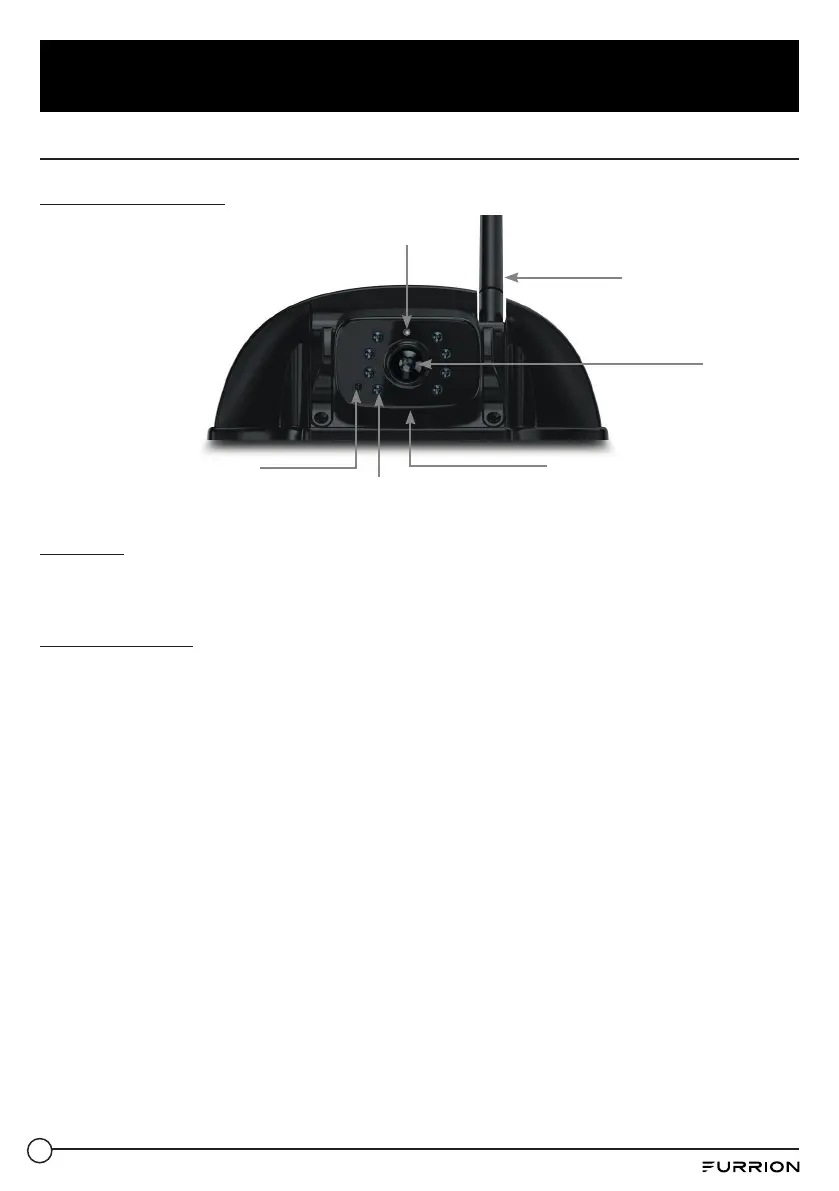

Product overview
8 IR LEDs
LED Indicator
Lens
Monitor Pairing
Button
Light Sensor
Antenna
Prepare
● Prepare tools you may need, including a #2 Phillips head screwdriver, sealant, insulation
tape, pencil and/or a 5/8”drill bit (needed only when drilling a new hole).
Mount bracket
Note: Skip this section if your RV is pre-installed with a bracket for camera installation.
IMPORTANT: Before any installation and wiring operation, remove the key from the ignition
and isolate the 12V / 24V power source.
Always seek professional assistance if you are unsure about the installation and wiring
operation.
1. Determine the mounting location on your RV. Ensure that there is no obstacle blocking the
camera view. The recommended mounting location is shown below:
− For rear camera position:
At the top center on the rear of your RV and as high as practicable (2” below the red
marker light if available).
− For doorway camera position:
Above the top of the door.
Note: The RV shown here is for reference only. You can mount Furrion Vision S products onto
various types of RVs such as trailers and Class A/B/C motorhomes.
To Next Page
