Install Cameras
Mount cameras (right side shown)

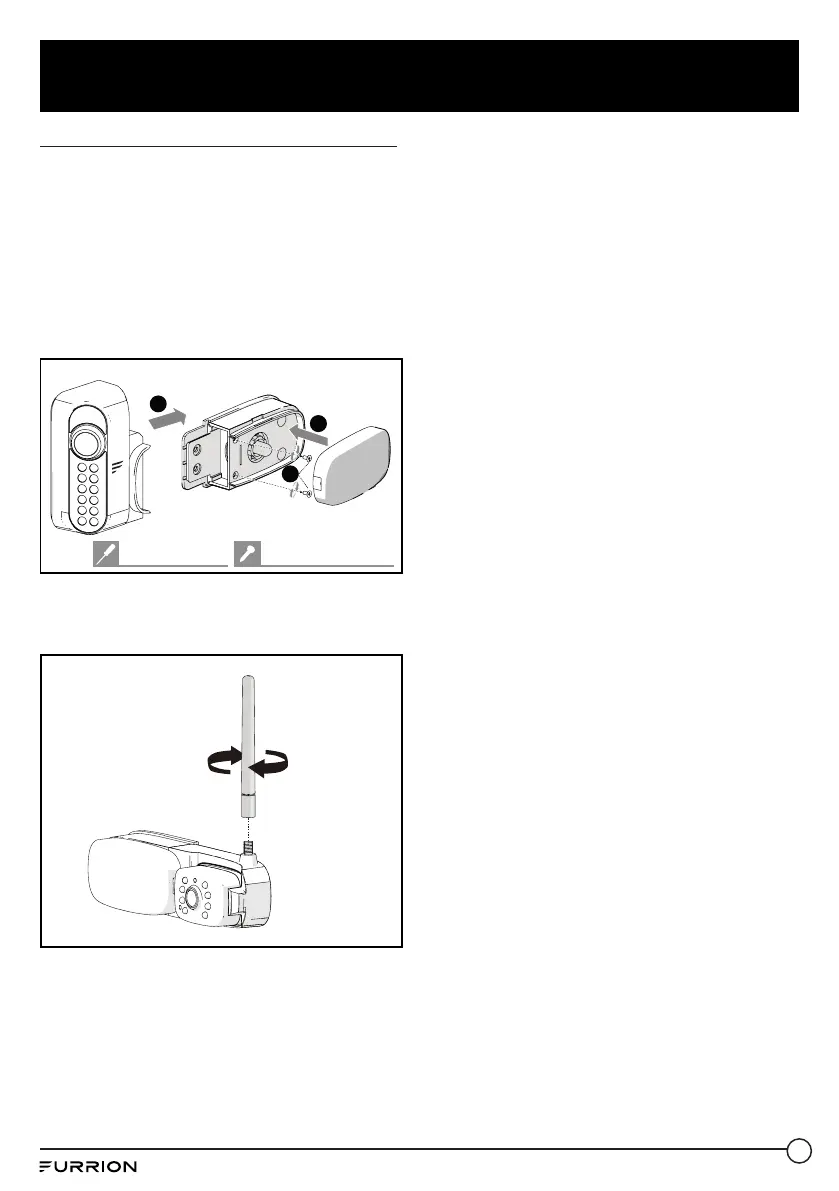

1. Reattach the camera to the marker light
bracket. Before fixing the camera, check
its pairing status with the monitor by
resuming power temporarily.
If you cannot find the video from the
camera on the monitor screen or you have
an unbundled camera, see the monitor
installation and usage section for pairing
procedures.
1
3
2
#4x
1
/
4
" self-tapping
#1 Phillips head
For the rear camera, mount the antenna
onto the camera securely and keep the
antenna straight.
Torque: ≤8 In-lbs
2. For the left/right side camera,
ensure that the lens on the camera
face backwards after installation, with
the MONITOR PAIRING button at the
bottom.
For the rear camera, adjust the view
angle of the camera by rotating it upwards
and downwards (0~50°) so that you can
see the bottom edge of your vehicle and
the road conditions behind.
