Product Overview
English

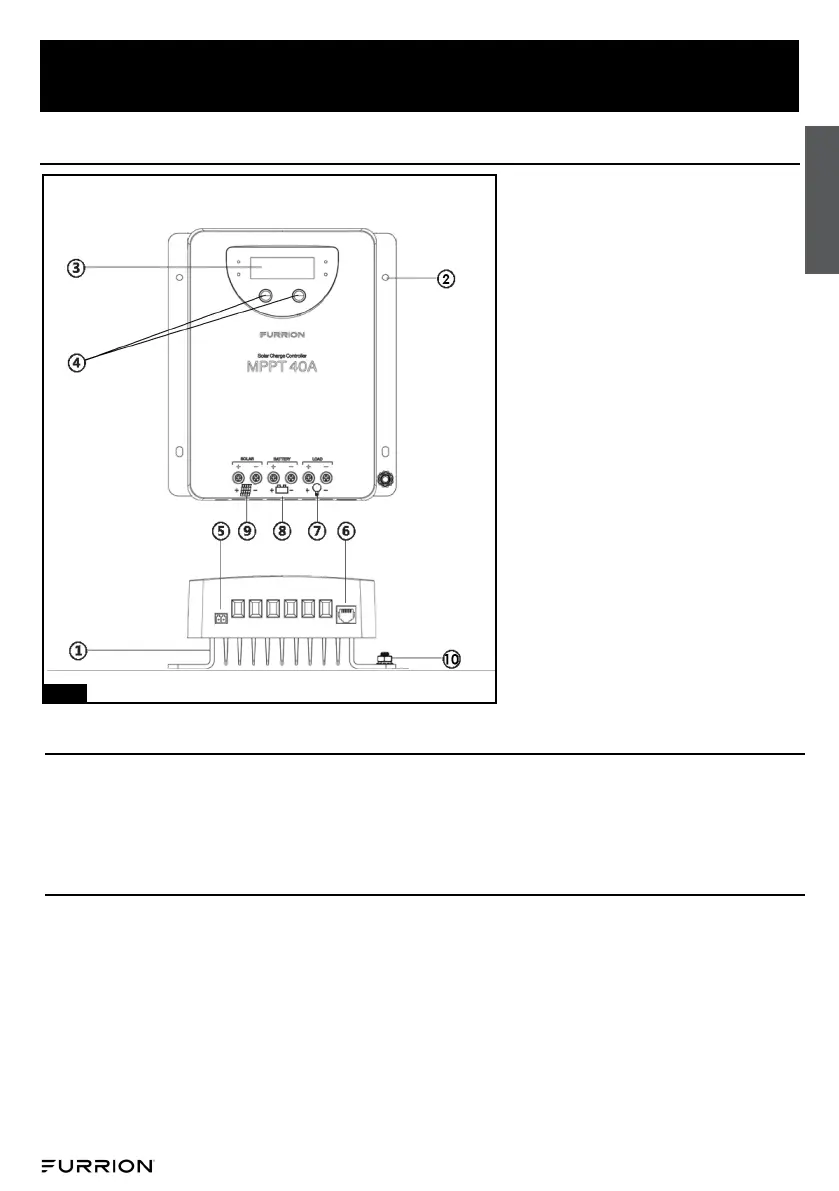

1. Heat sink
2. Mounting holes
3. LEDs & LCD screen
4. Buttons (SET, BROWSE)
5. Temperature sensor port
6. Non-functional
(For service use only)
7. Auxiliary Load + / - connections
8. Battery + / - connections
9. Solar panel + / - connections
10. M6 Grounding lug
Structure
Fig. 3Fig. 3
Accessory - Temperature Sensor
An external temperature sensor (not included) is used to collect battery temperature to perform auto
temperature compensation function. The temperature sensor is connected to the controller indicated
by the item 5 shown in the gure 3.
Bluetooth Communication
Download the dedicated Bluetooth app - 'Furrion Solar' for Android/iOS mobile phones from the app
store. Refer to the Help/Support section on the app for detailed instructions.
