Furuno FELCOM 12 Installation Manual

10

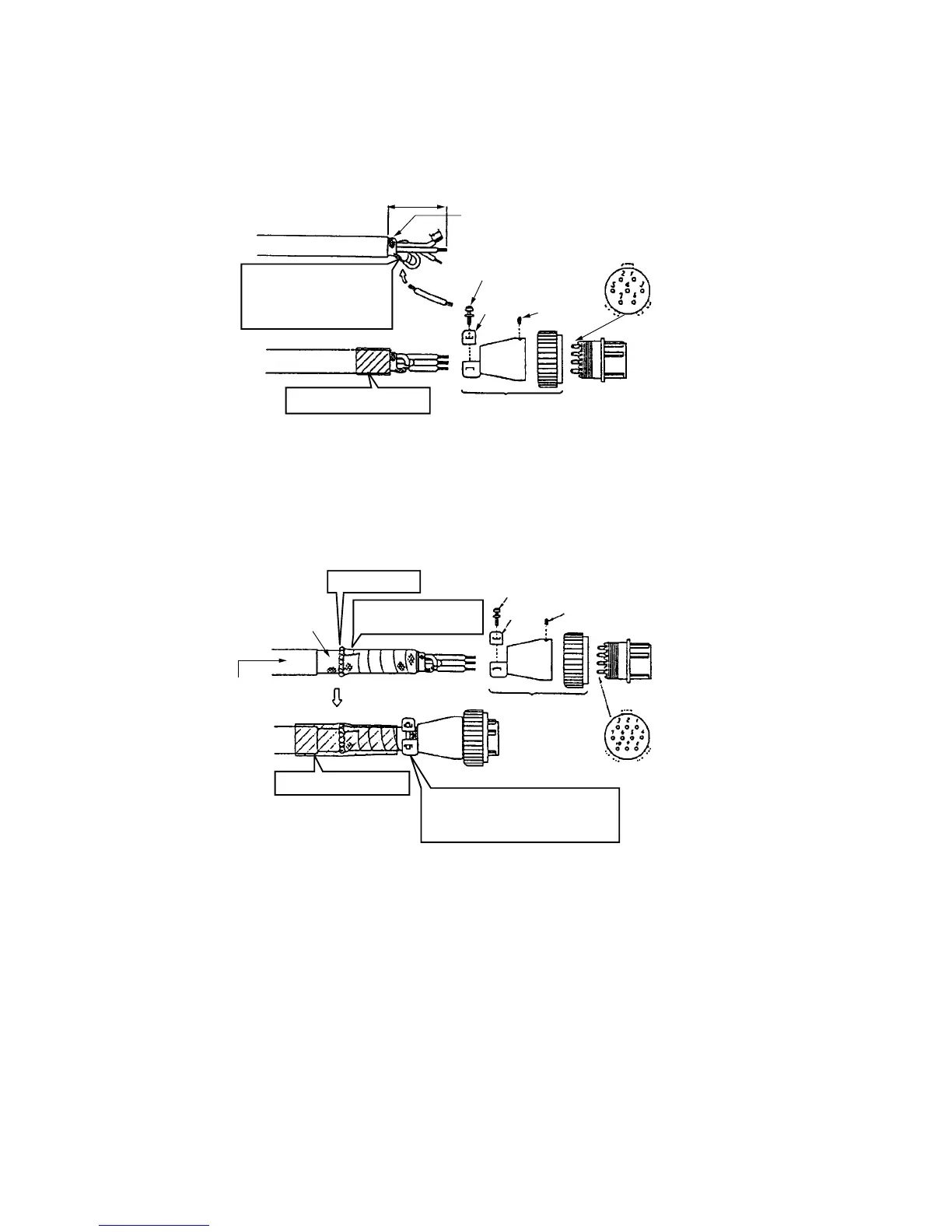

Connection between the Communication unit and the Distress alert unit/
Received call unit
At the Communication unit (Connector SRCN6A16-7P)
VINYL SHEATH
VINYL SHEATH
SOLDER UNUSED
CORES AND EARTH
WIRE TO BRAIDED
SHIELD
WIND VINYL TAPE
CONNECTOR CASE
EARTH
WIRE
CLAMP FIXING
SCREW
CLAMP
SET
SCREW
2 cm
BRAIDED SHIELD
SOLDERING-SIDE
3 mm
Figure 4-4 How to attach connector SRCN6A16-7P
Connection between the Communication unit and a navigation device
At the Communication unit (Connector SRCN6A16-10P)
SOLDERING-SIDE
CLAMP SHIELDING TAPE
WITH CONNECTOR CLAMP
TO GROUND
WIND VINYL TAPE
CONNECTOR
CASE
SOLDERING
WIND SHIELDING
TAPE
CLAMP FIXING SCREW
CLAMP
SET SCREW
VINYL SHEATH
(OUTER)
ARMOR
Figure 4-5 How attach connector SRCN6A16-10P
