23. SETTINGS MENU

23-10

23.9 Display Test

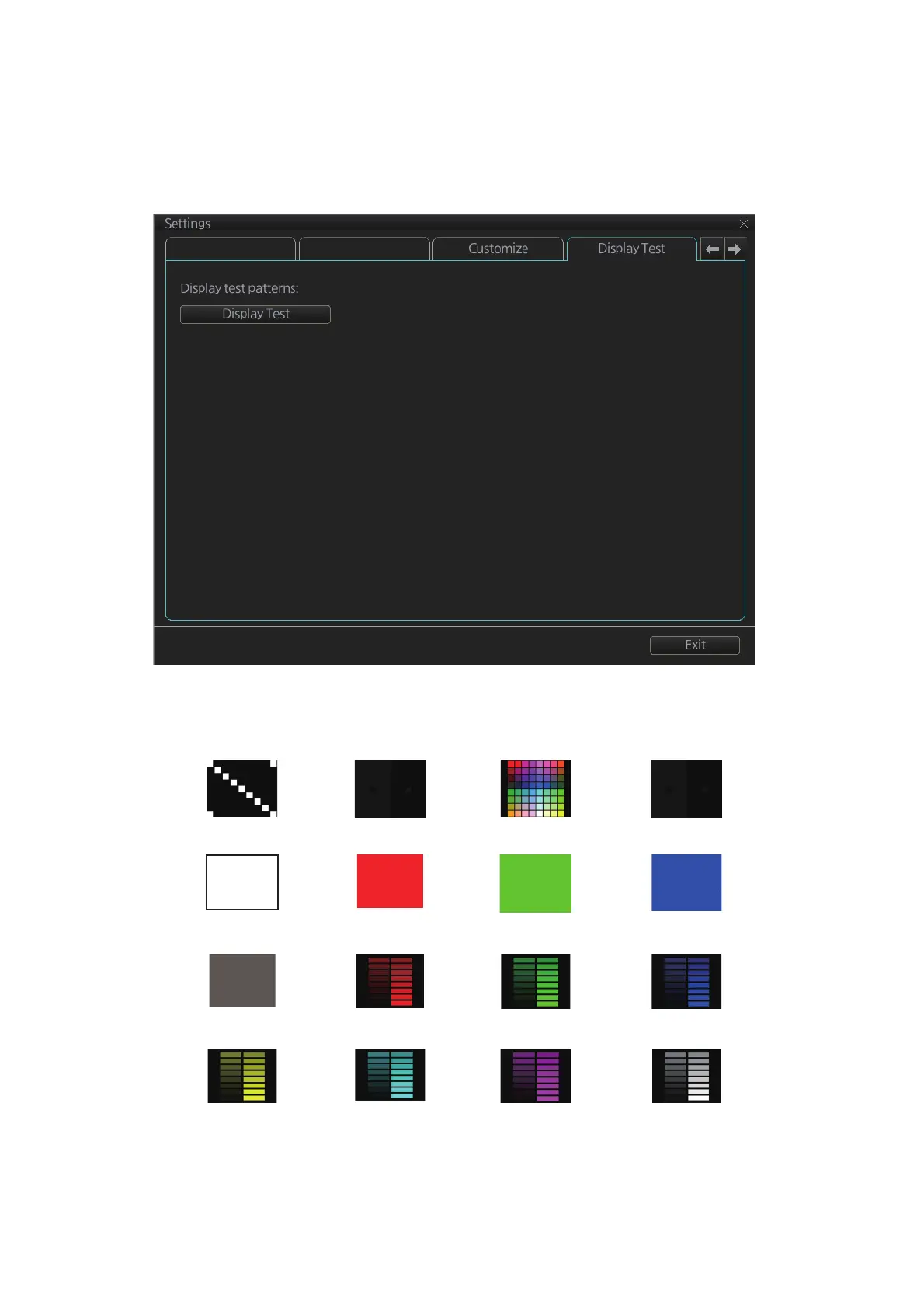

The [Display Test] page displays various test patterns to check the monitor for proper

display of colors. Click the [Display Test] button to start the test. The buzzer sounds

at the start of the test.

Left-click to proceed in the numerical order shown below; right click to proceed in re-

verse order.

To quit the display test and close the [Settings] menu, press the ESC key on the ap-

plicable Control Unit, or click the Exit button on the [Display Test] menu.

Self Test Data Sharing

(1) (2) (3) (4)

(5) (6) (7) (8)

(9) (10) (11) (12)

(13) (14) (15) (16)

Diagonal Black All colors Black

White Red Green Blue

Gray Red bars Green bars Blue bars

Yellow bars Aqua bars Purple bars Gray bars
