24. MAINTENANCE AND TROUBLESHOOTING

24-7

24.7 Color Differentiation Test for S57 Charts

The color differentiation checks if the ECDIS monitor can distinguish between the var-

ious color-coded areas, lines and symbols.

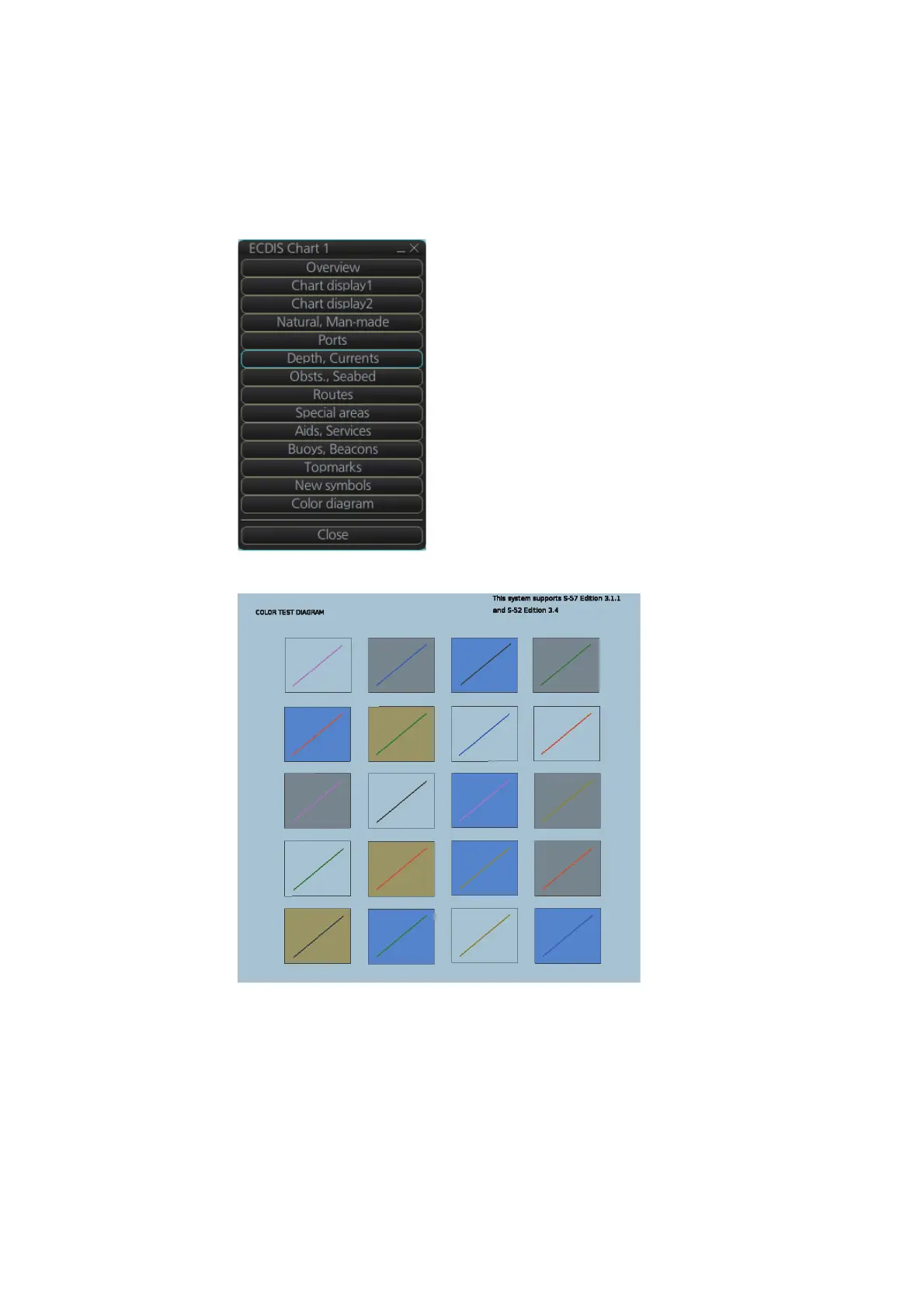

1. Click the [Chart INFO] and [Chart 1] buttons on the InstantAccess bar™ to show

the [ECDIS Chart 1] menu.

2. Click [Color diagram] to show the color test diagram.

If the colors are correct, the diagonal line will be distinguishable from its surroundings,

at any brilliance setting.
