Furuno FR-1510 Service Manual

4-9
4.5 Program Number
1) The following summarizes the programs used in the system. The radar and RP programs are
stored on the flash ROM, and the ARP program on the PROM.
2) How to switch between English and Japanese Versions.
The following key operation can change the English menu to the Japanese one, and vice
versa.
 Turn on the unit.
 While pressing and holding down the HL OFF switch, press the [MENU] key five times.
¡ Select the language you want to use.
Board Program Number Method of Updating Remarks
SPU Board (03P9230) 03591521XX
Loading program with
a personal computer
RP Board (03P9259) 03591551XX
Loading program with
a personal computer
ARP Board (18P9004)
ARP : 18590411XX
DSP : 18590421XX
Changing PROMS.
ARP-17
ARP Board (18P9007)
18590271XX
Loading program with
a personal computer
ARP-10
4.6 How to update system program
Radar System Program
The radar system program, stored onto the flash ROM U11 on the SPU board, is replaced by
following procedure.

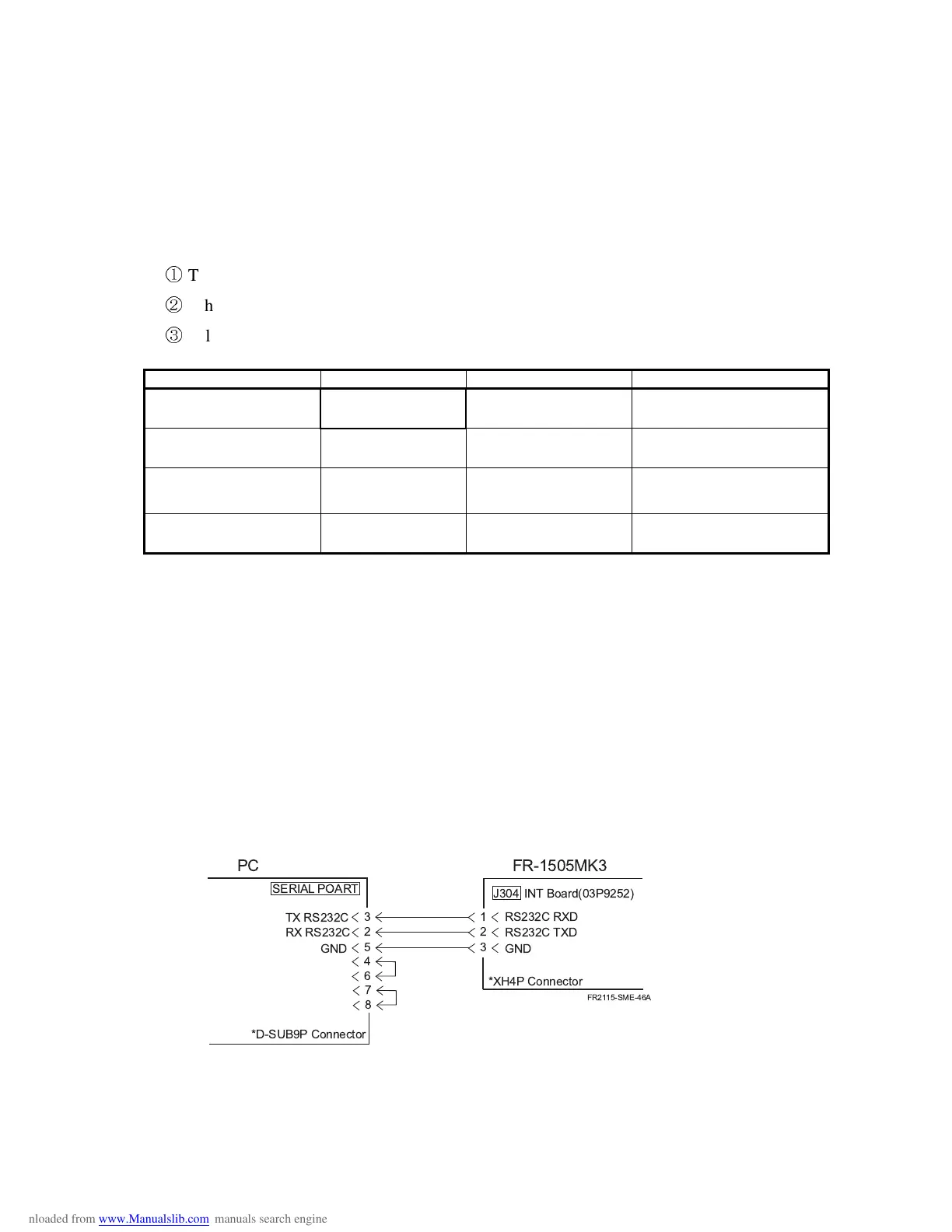

Connection
The series port of a personal computer (PC) is connected to the J304 on the MAIN PANEL
Board.
Remove a rubber cap located at the bottom of front panel to gain access to J304.
3
SERIAL POART
TX RS232C
2
RX RS232C
5
GND
PC
1
J304
RS232C RXD
2
RS232C TXD
3
GND
FR-1505MK3
FR2115-SME-46A
*D-SUB9P Connector
*XH4P Connector
4
6
7
8
INT Board(03P9252)
