System Configuration

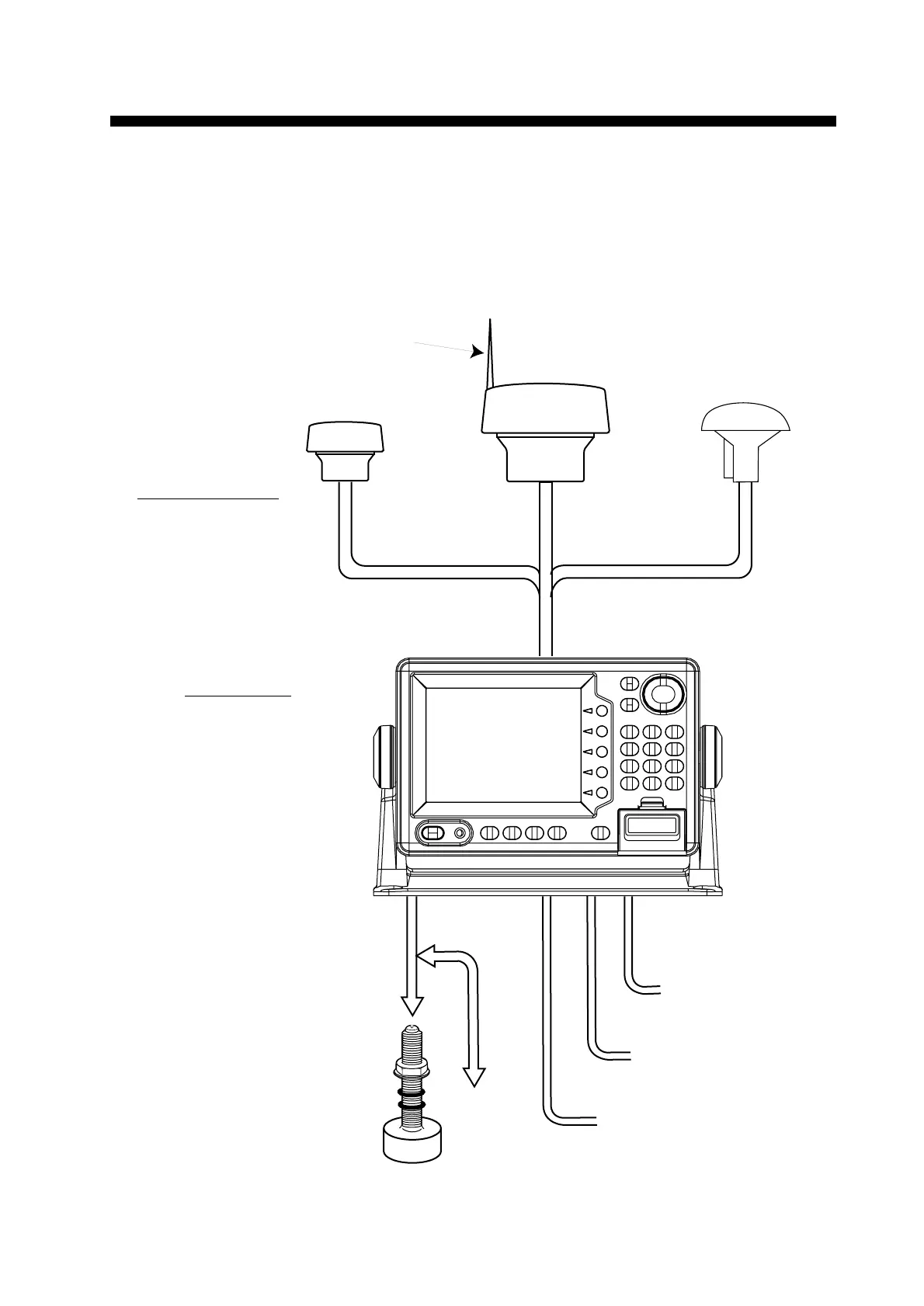

The GP-1650F/1650DF mainly consists of a display unit, a GPS an-
tenna and a dual frequency transducer. A DGPS beacon receiver is
provided inside the display unit for GP-1650DF type. The chart card
drive in the display unit loads electronic charts. External equipment
which can be connected include water temperature and speed sen-
sors, autopilot, and DGPS beacon receiver.
Ship’s mains
10.8—31.2 VDC
External equipment
(Autopilot, etc.)
DGPS beacon receiver
GP-1650F only
Transducer
(option)
Temp. sensor
(option)
DISPLAY UNIT
Ship’s position is
calculated in longitude
and latitude from signal
received from the an-
tenna unit and displayed
on the screen.
ANTENNA UNIT
Receives signal from
GPS satellite and beacon
reference station
(GP-1650DF only).
GPA-018
(for GP-1650DF)
GPA-017
(for GP-1650F)
GPA-019
(for GP-1650DF)
WHIP ANTENNA
1.2 m
