1. INSTALLATION
2
Mounting procedure
Follow the procedure below to mount the display unit on a tabletop or the overhead.
Tabletop, overhead mounting
1. Fix the hanger by four pan head screws 5 X 16.
2. Screw knob bolts in display unit, set it to hanger, and tighten knob bolts.
3. Attach hard cover to protect LCD.
W
A
R
N
IN
G

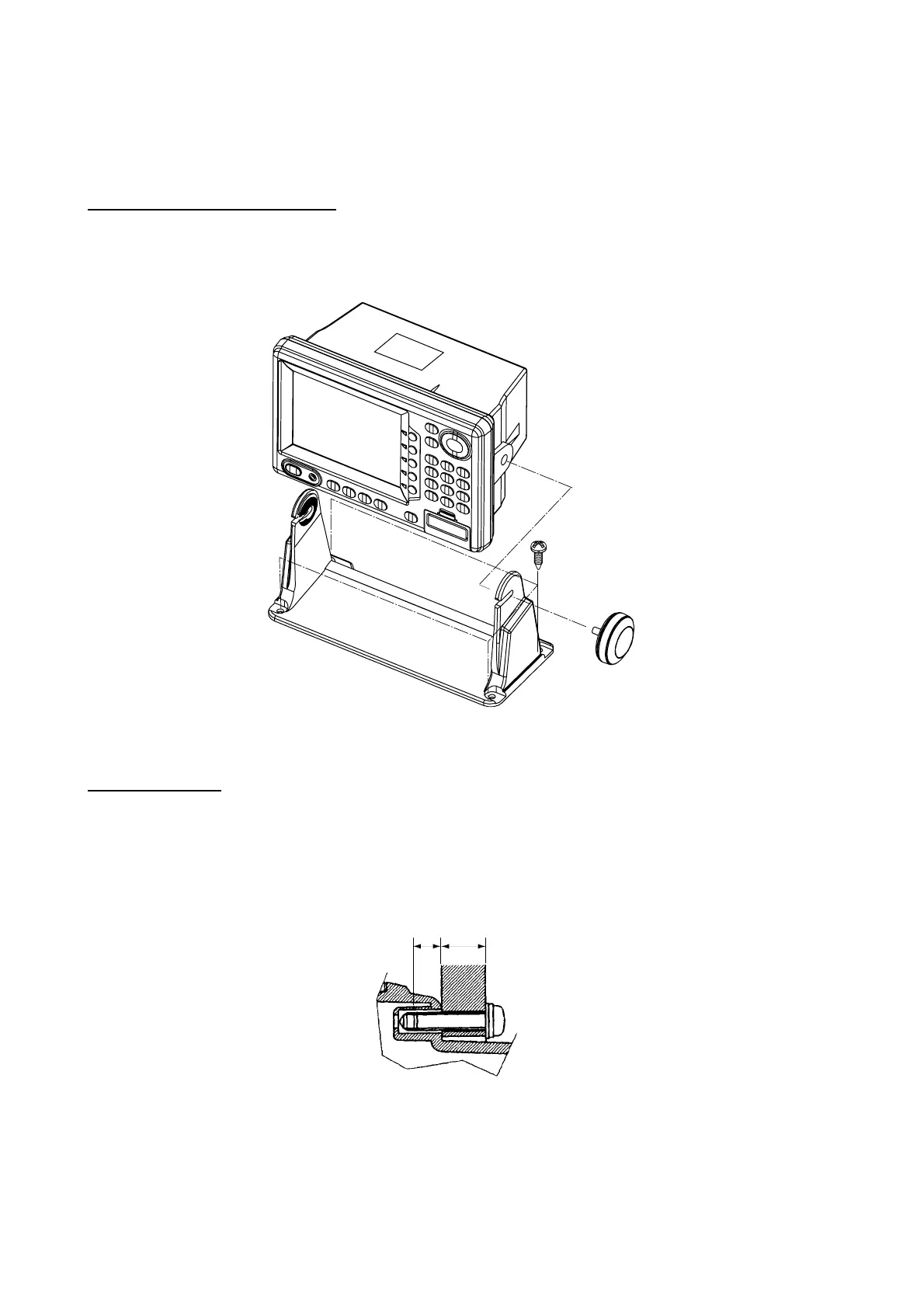

Tabletop, overhead mounting of display unit
Flush mounting
Note: Use supplied pan head screws when the thickness of the bulkhead is from 11 to 14
mm. For bulkhead which exceeds 14 mm in thickness the length of the pan head
screws should be bulkhead thickness+7.8±1.5 mm. Also the length of B should max.
8mm.
BA
1. Prepare a cutout in the mounting location whose dimensions are as shown on the next
page.
2. Fix the display unit by six pan head screws M4 X 20. Refer to the outline drawing on
page D-2.
To Next Page
