1. INSTALLATION
1.1 Installation of Display Unit
Mounting considerations
The display unit can be installed on a tabletop, on the overhead or flush mounted in a
console or panel.

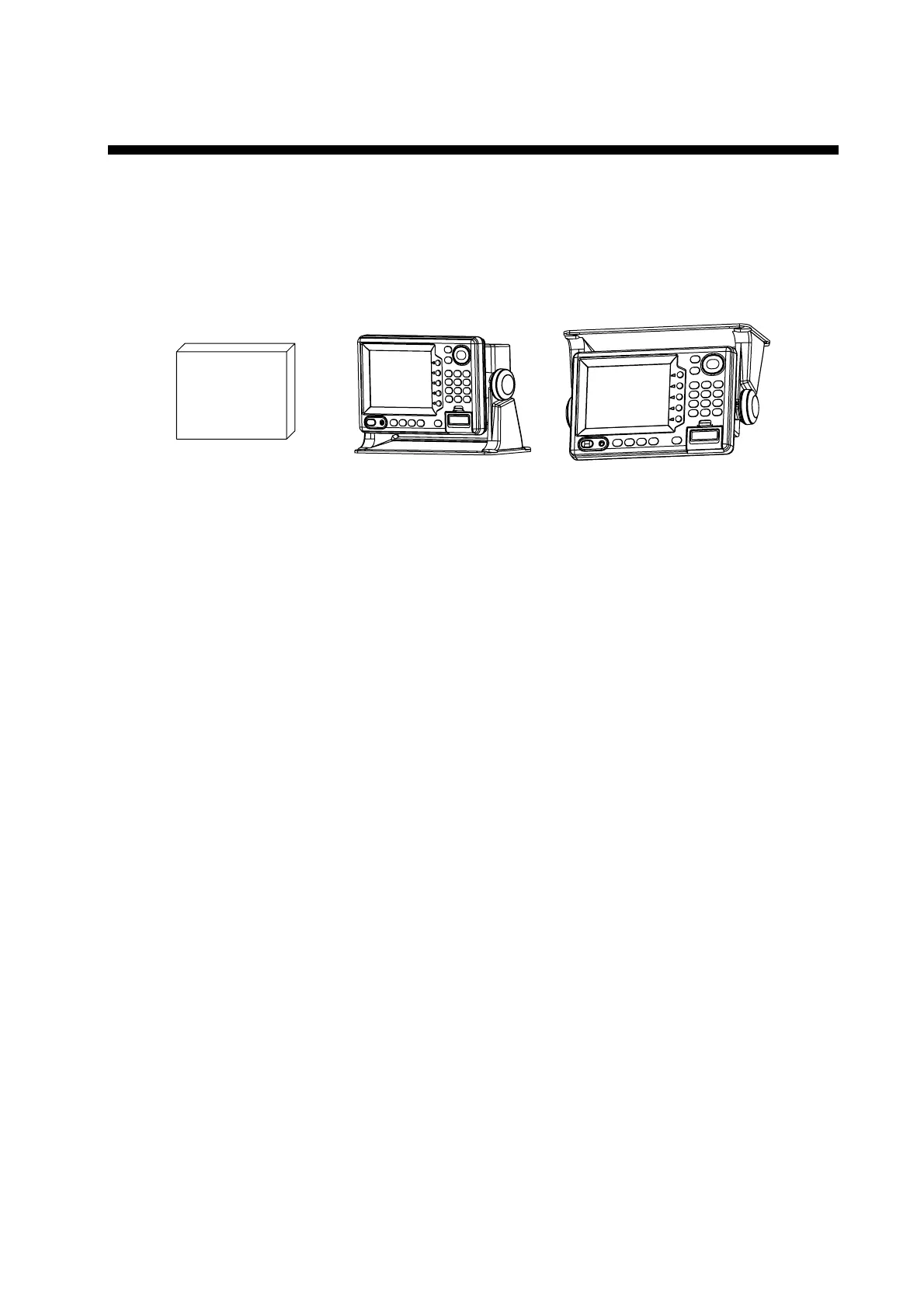

OverheadTabletopHard Cover
Tabletop, overhead mounting methods
When selecting a mounting location for the display unit keep the following in mind:
•
Keep the display unit out of direct sunlight.
•
The temperature and humidity should be moderate and stable.
•
Locate the unit away from exhaust pipes and vents.
•
The mounting location should be well ventilated.
•
Mount the unit where shock and vibration are minimal.
•
Keep the unit away electromagnetic field generating equipment such as motor, generator.
•
For maintenance and checking purposes, leave sufficient space at the sides and rear of
the unit and leave slack in cables.
•
A magnetic compass will be affected if placed too close to the display unit. Observe the
following compass safe distances to prevent disturbance to the magnetic compass:
Standard compass: 0.8 meters
Steering compass: 0.5 meters
