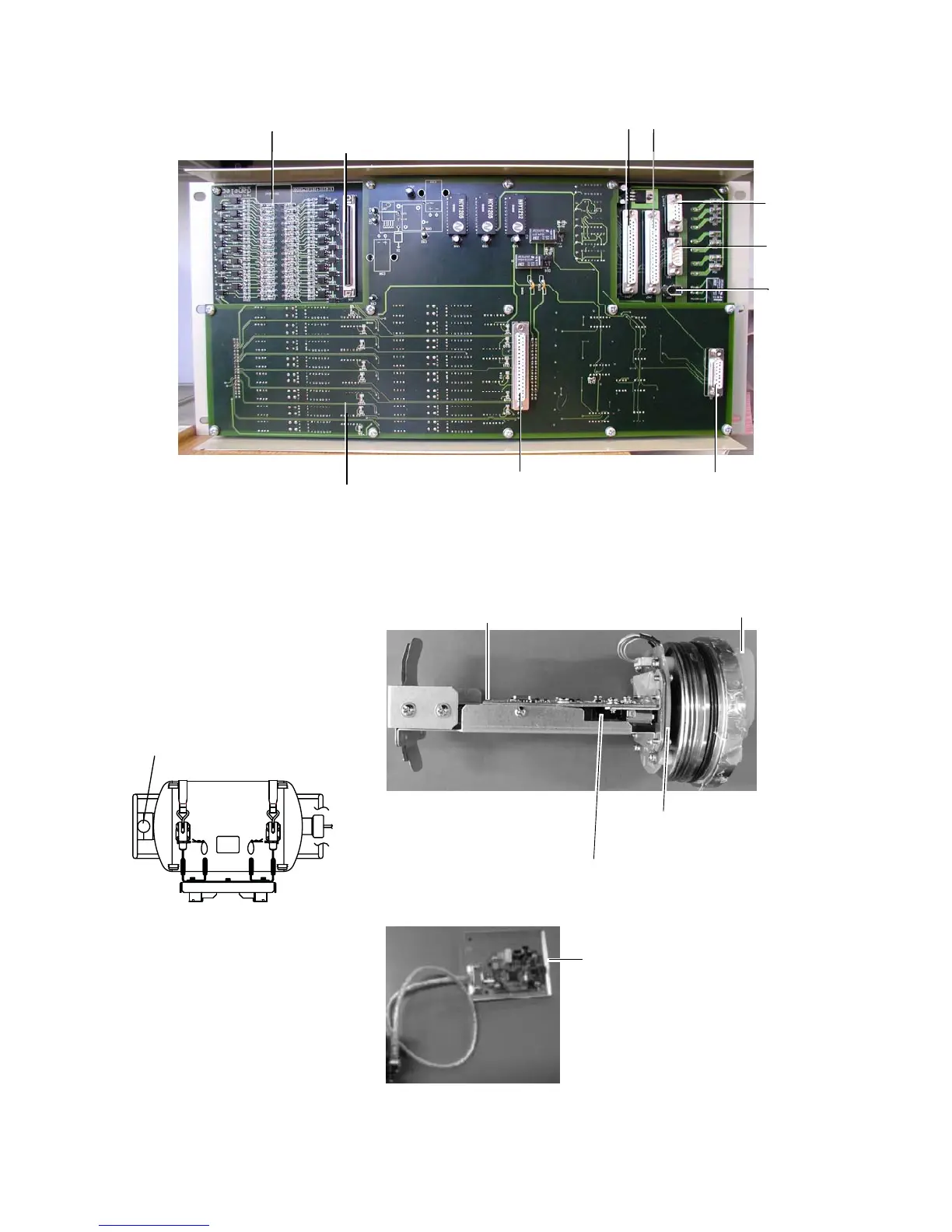

Furuno VR-5000 - Junction Box & DRU Internal Components

-4.4-
MAIN JB Board
SUB JB Board
Junction Box (JB), Rear view
Components inside capsule
Underwater Acoustic
Beacon (DK-120)
DRU
FLASH DISK Board
(FW-ATA2501-1)
CONNECTION Board
(24P0087)
CONNECTOR Board
(24P0042)
2.5-inch FLASH DISK
(SLFLD25-8GM1U1 (for 6G) or
DK0090G88TNO (for 9G))
REPEATER
Board (24P0080)
(Firewire cable connects
to CONNECTOR Board.)
J46 (RS422) J47 (RS422, optional)
J51
J49
J53
J35 (Digital)
J2 (Analog) J3 (Audio)
