ELECTRICAL ISOLATION OF THE MS-RA205
The MS-RA205 stereo has a metal chassis which is connected to the Ground I
Negative I Black wire (Like most other stereos).Extra care should be taken when
installing this type of stereo in an aluminium boat (or boats with a conductive hull) if
you require the electrical system to be isolated from the boat hull).

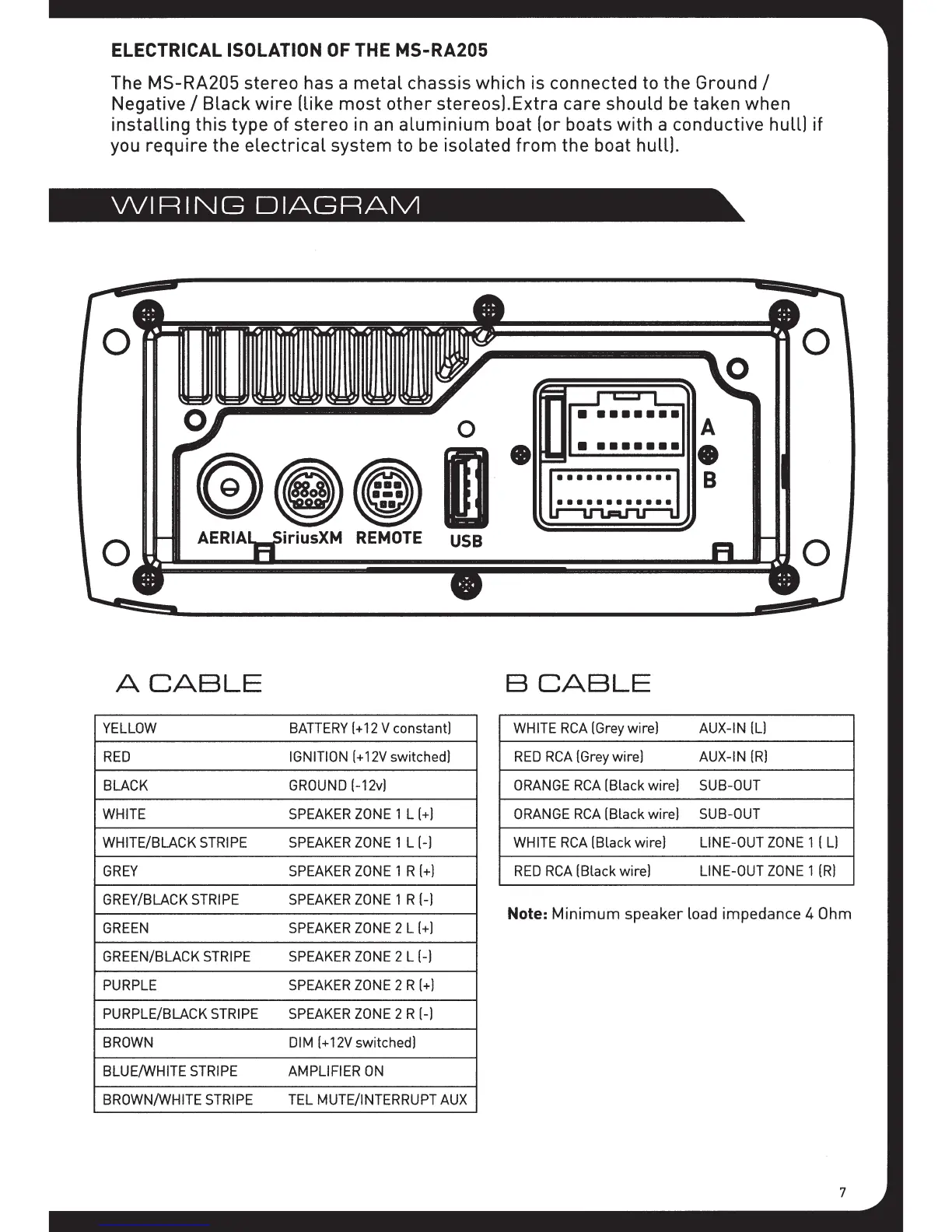

WIRING DIAGRAM
A CABLE
BCABLE
YELLOW
BATTERY(+ 12 V constant) WHITE RCA (Grey wire)
AUX-IN (L)
RED
IGNITION (+ 12V switched) RED RCA (Grey wire)
AUX-IN (R)
BLACK
GROUND (-12v) ORANGE RCA (Black wire) SUB-OUT
WHITE
SPEAKER ZONE 1 L (+)
ORANGE RCA (Black wire) SUB-OUT
WHITE/BLACK STRIPE
SPEAKER ZONE 1 L (-) WHITE RCA (Black wire)
LINE-OUT ZONE 1 ( L)
GREY
SPEAKER ZONE 1 R (+)
RED RCA (Black wire)
LINE-OUT ZONE 1 (R)
GREY/BLACK STRIPE
SPEAKER ZONE 1 R (-)
GREEN
SPEAKER ZONE 2 L (+)
Note: Minimum speaker Load impedance 4 Ohm
GREEN/BLACK STRIPE
SPEAKER ZONE 2 L (-)
PURPLE
SPEAKER ZONE 2 R (+)
PURPLE/BLACK STRIPE
SPEAKER ZONE 2 R (-)
BROWN
DIM(+ 12V switched)
BLUE/WHITE STRIPE AMPLIFIER ON
BROWN/WHITE STRIPE TEL MUTE/INTERRUPT AUX
