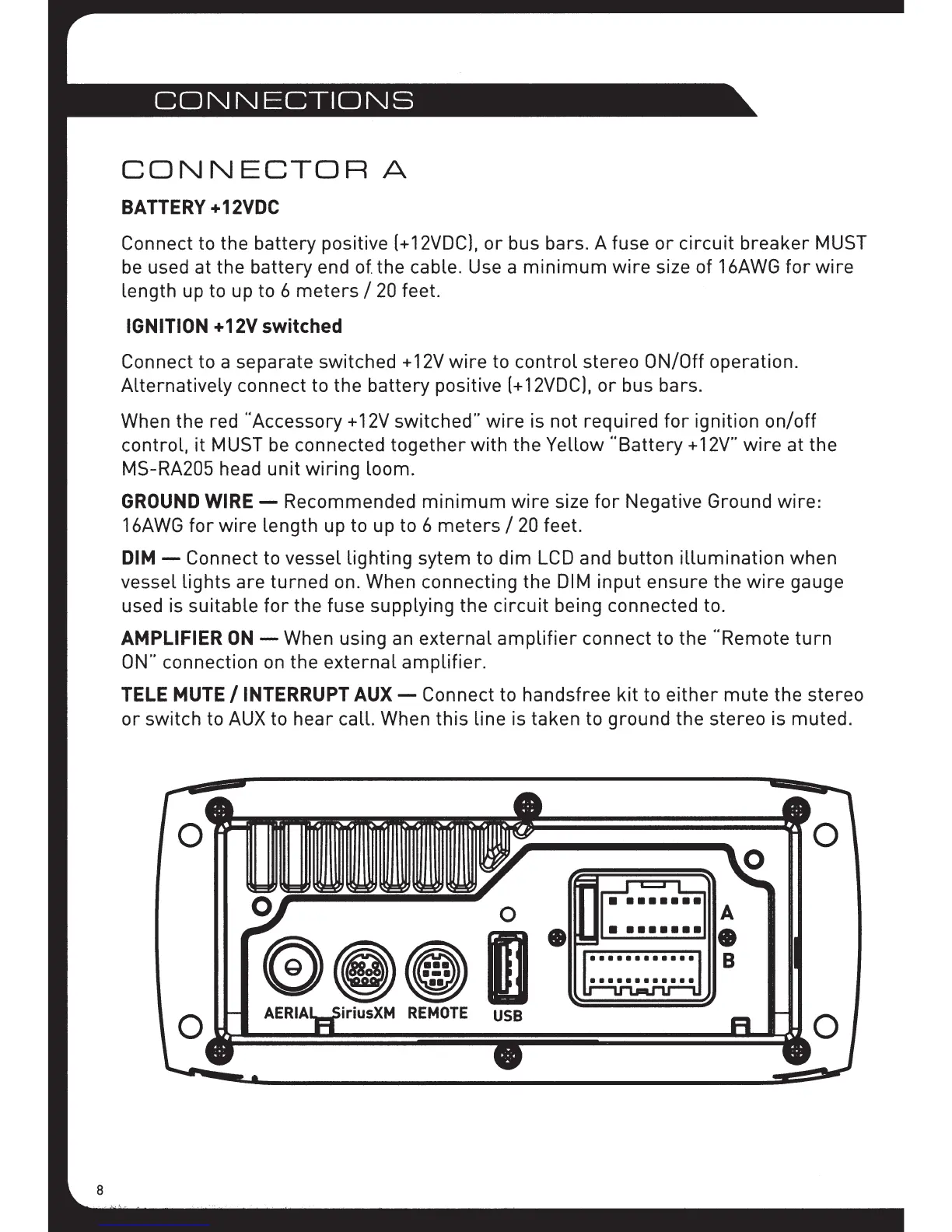

CONNECTOR
A
BATTERY +12VDC
Connect to the
battery
positive
(+
12VDCL
or
bus bars. A fuse
or
circuit
breaker
MUST
be
used at the battery end
of.
the cable. Use a
minimum
wire
size of
16AWG
for
wire
length up to up to 6
meters
I
20
feet.
IGNITION +12V switched
Connect to a separate switched +
12V
wire
to
control
stereo ON/Off operation.
Alternatively
connect to the
battery
positive
(+
12VDC),
or
bus bars.
When the red
"Accessory+
12V
switched"
wire
is not required
for
ignition
on/off
control,
it
MUST
be
connected
together
with
the Yellow
"Battery+
12V"
wire
at the
MS-RA205 head
unit
wiring
loom.
GROUND
WIRE-
Recommended
minimum
wire
size
for
Negative Ground
wire:
16AWG
for
wire
length up to up to 6
meters
I
20
feet.
DIM-
Connect to vessel
lighting
sytem to
dim
LCD
and button
illumination
when
vessel
lights
are
turned
on. When connecting the DIM
input
ensure the
wire
gauge
used is suitable
for
the fuse supplying the
circuit
being connected to.
AMPLIFIER
ON-
When using an
external
amplifier
connect to the "Remote
turn
ON" connection on the
external
amplifier.
TELE MUTE /INTERRUPT
AUX-
Connect to handsfree
kit
to
either
mute
the stereo
or
switch to
AUX
to
hear
call. When
this
line is taken to ground the stereo is muted.
