SERIES AND PARALLEL SUBWOOFER WIRING FOR
DUAL VOICE COIL SUBWOOFERS

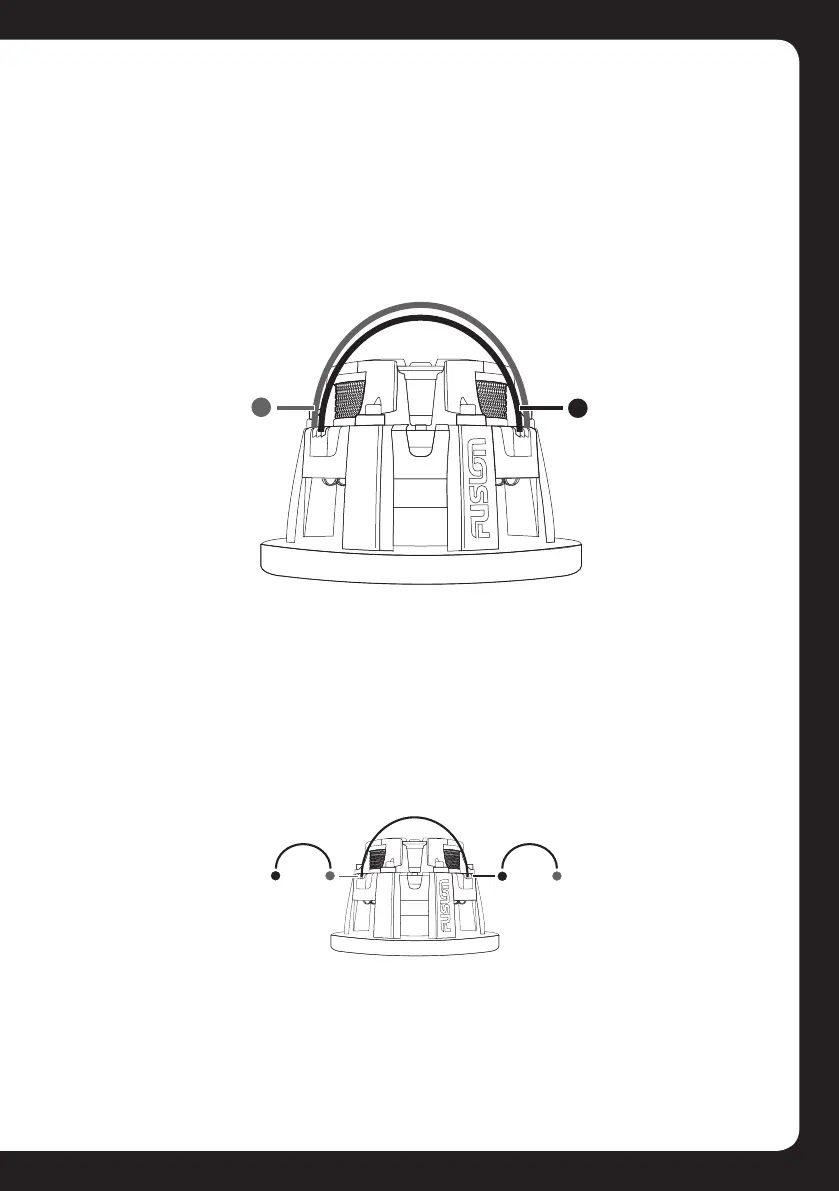

PARALLEL VOICE COIL WIRING (2 OHM OPERATION)
To wire a 4 Ohm DVC subwoofer in parallel to get 2 Ohm, use two short pieces of speaker wire
and link the positive from one coil to the positive of the second coil, and do the same for the
negative as shown below. Then wire the amplier to opposite sides of the subwoofer in order
to equalise any connection resistance.
SERIES VOICE COIL WIRING (8 OHM OPERATION)
To wire a 4 Ohm DVC subwoofer in series to get 8 Ohms, use one short piece of speaker wire
and link the positive from one voice coil to the negative of the second coil as shown below.
Then wire the amplier to opposite sides of the subwoofer.
2 Ohm operation
8 Ohm operation
-
+
-
-
