ASSEMBLY / ADJUSTMENT
Receiver and Servo Connection
As you connect the receiver, servo's and other components, do so in accordance with the "Assem-
bly Precautions" listed on the next page.
ON
OFF

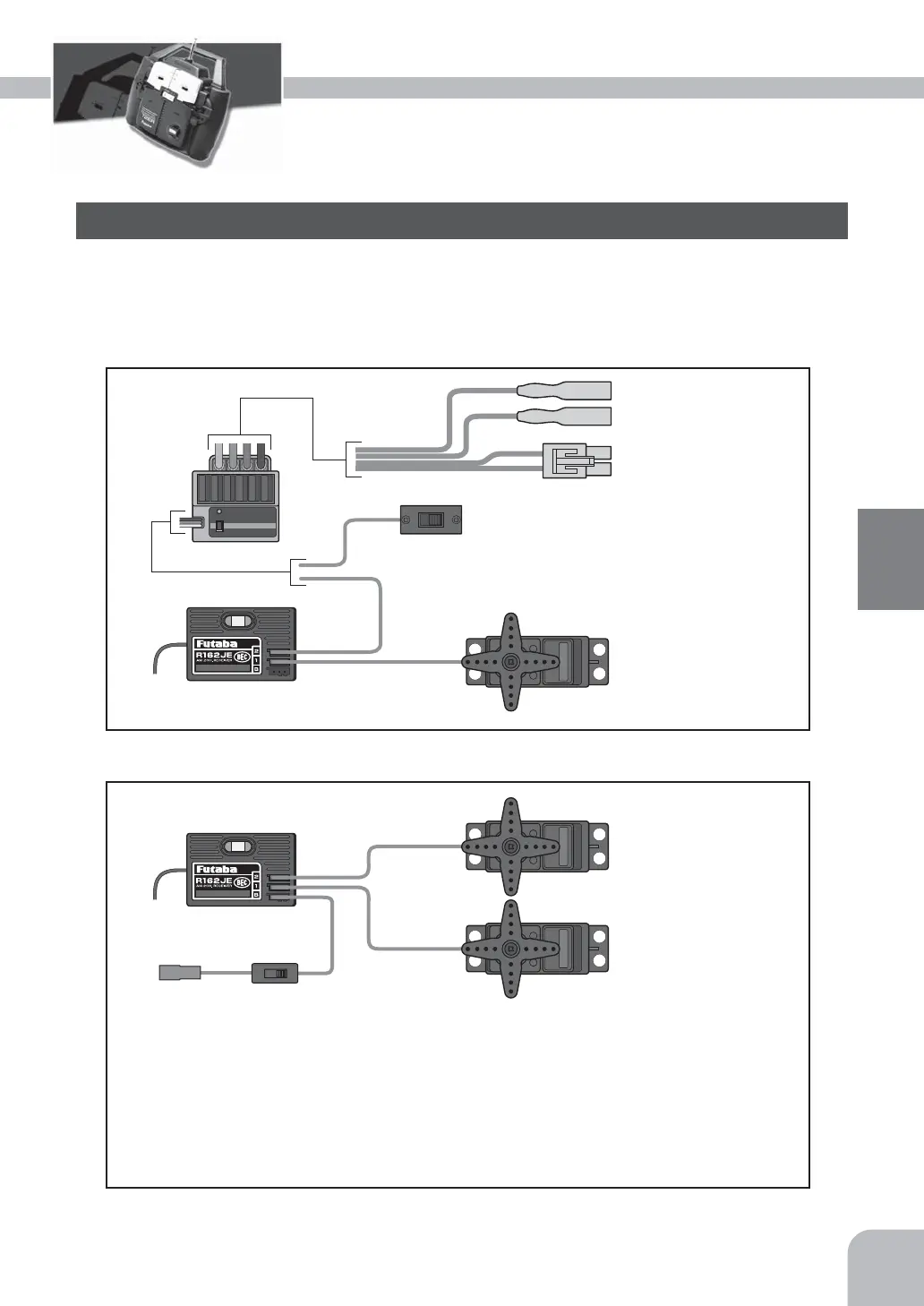

Receiver and Servo Connection for EP Car
Receiver and Servo Connection for GP Car
E.S.C.
Receiver
Receiver
Power Switch
Power
Switch
Steering Servo
Steering Servo
Throttle Servo
(CH2)
(CH1)
(CH2)
(CH1)
(B)
Connects to motor
To receiver
battery
Connect the battery in accordance with instructions provided with model you are installing this
system in.
Connects to battery
For R162JE: If your model has a mechanical type speed control (Servo Driven for electric
powered models) inspect this component for a power supply regulator or voltage dropping Diode.
These device's will cause a voltage drop to the receiver. Be sure to remove them prior to
installation in your model.
