FUTABA FP-8SGAP User Manual

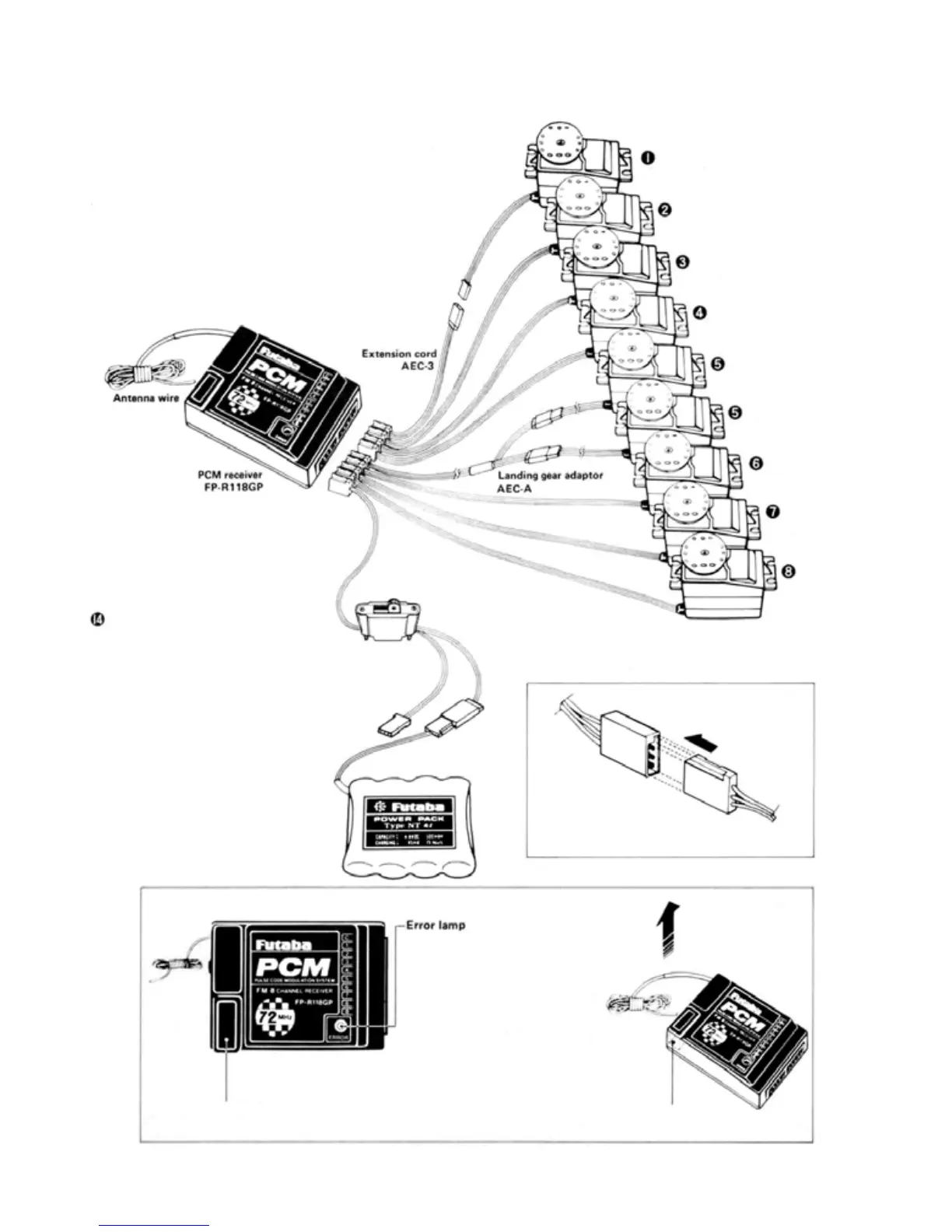

•RECEIVER AND SERVOS
Receiver, Servo Switch, and
Battery Connections
8SGAP 4 Servos
Aileron servo
Elevator servo
Throttleservo
Rudder servo
Landing gear servo
Landing gear servo
Flap servo
Spoiler
servo
Pitch
control
servo
Power switch
SWH-5 (R4-SWJ)
Charging plug
Fig. 19
Pay careful attention to the polarity
of the connector.
Fig. 18
NR-4J
PCM RECEIVER FP-R118GP
•This LED comes on when the
receiver operated erroneously.
• When the receiver and servo side
Nicd is connected and this LED
is on, radiowaves are not being
received from the transmitter,
check to be sure the frequency
is correct. Checking is possible
by the lamp being on.
•When strong noise has been
received, or the radiowaves from
the transmitter are intermittent-
ly interrupted, this lampwill blink.
This is usually not a problem.
Receiver crystal
Fig. 21
Fig.
20
Crystal
Antenna
wire
Remove the receiver
crystal by pulling it in
this direction.
