•2ND
ATV
(CONVENTIONAL)

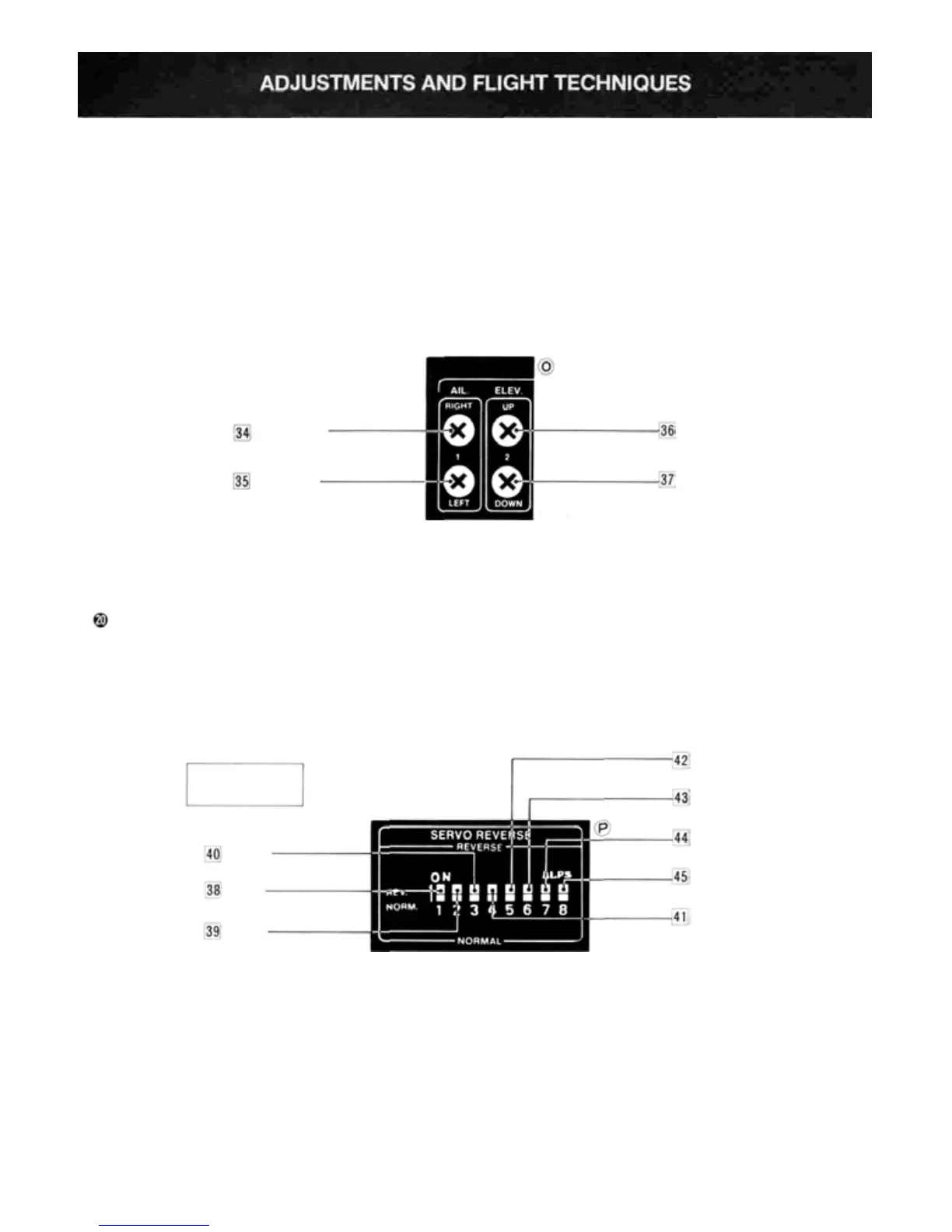

2ND ATV is available on the aileron and elevator
channels. This is the conventional type ATV and is
set using trimmers [34], [35]. [36], and [37] on the
transmitter back panel.
Servo movement can be adjusted from 0 to 100%.
These adjustments are retained even if the trans-
mitter
battery
reaches
a
full
discharge state (Mem-
ory ATV settings are not.).
When the ATV trimmer is turned clockwise, the
steering angle increases. When the ATV trimmer is
turned counterclockwise, the steering angle de-
creases. The steering angle can be adjusted from 0
to
100%.
Aileron right-
Aileron left-
Elevator up
Elevator down
Fig.
34
•SERVO REVERSING SWITCHES
These switches reverse the direction of rotation of
the servos. They are convenient when connecting
the linkage.
NORM: Forward
REV: Reverse
Throttle
CH5 switch channel
Flaps
Spoiler
Pitch control
Rudder
Aileron
Elevator
Fig.
35
