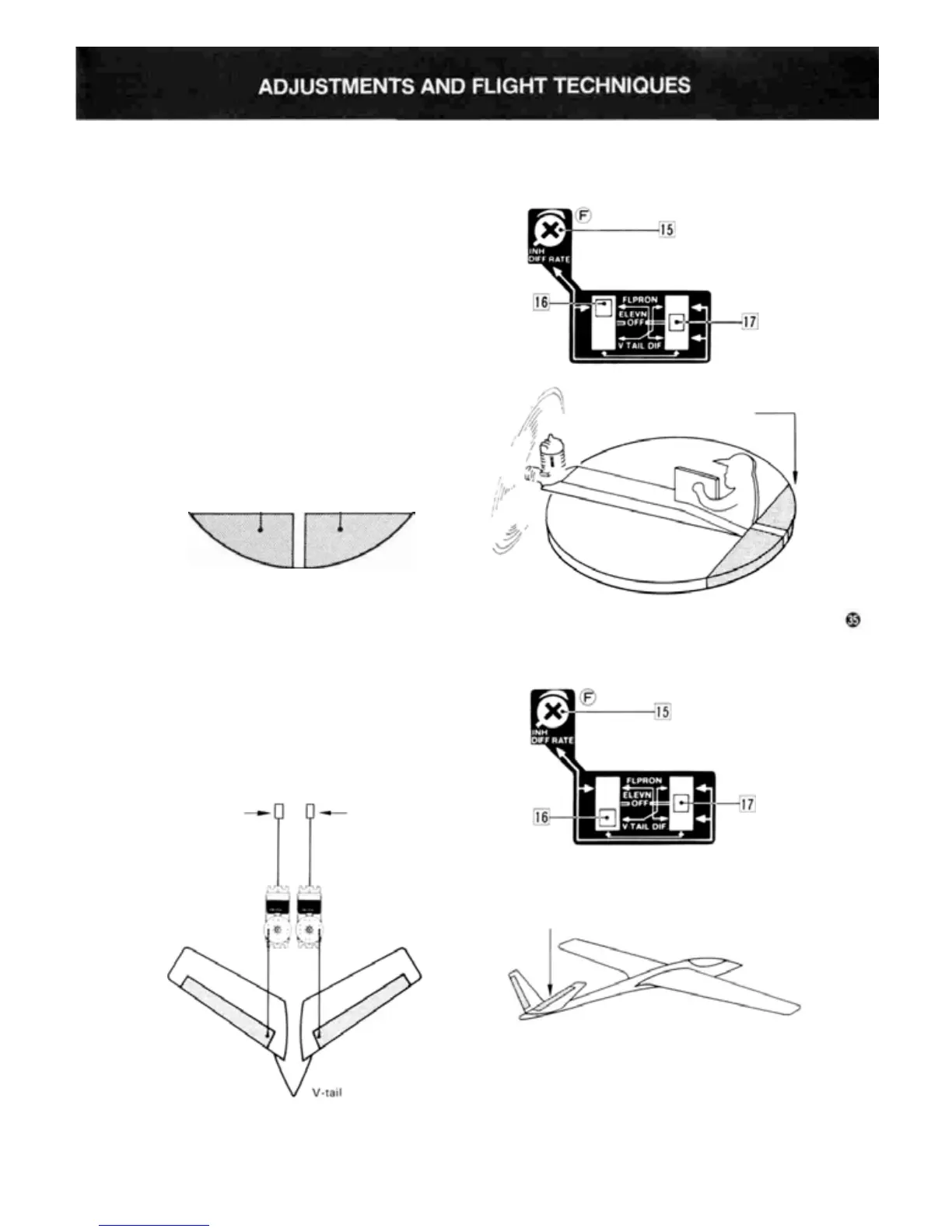

ELEVN (AILERON + ELEVATOR)
•
This type of mixing
can
be
used
with
tailless
and
delta wing aircraft and flying discs.
• Install and connect the servos as shown in Fig.
75. Always connect the Right side servo to CH1
(Aileron).
• Aileron differential can be adjusted with Trim-
mer
15.
Connect to-
channel 2
(elevator).
-Connect to
channel 1
(aileron).
Pig.
75
Use channel 1 (aileron
servo) at the right rudder.
Fig.
76
Fig.
77
V.TAIL (ELEVATOR + RUDDER)
•This
mixing
is
used
for
gliders,
scale
model
Bonanzas, and other V-Tail aircraft.
• Install and connect the servos as shown in Fig.
78. Always connect the servo to the Right Rud-
dervator to CH2 (Elevator).
• Set Switches 16 and 17 as shown in Fig. 79.
Connect to
channel 4 (rudder)
Connect to
channel 2 (elevator).
Fig. 79
Used channel 2 (elevator) for the right rudder.
Fig.
80
Fig.
78
* When connecting the linkage, connect channel 2
(aileron servo) to the right wing rudder.
