FUTABA T26SZ - Page 55

55
ڀ ŪŲŃƗƒŃŷŤťůŨŃŲũŃŦŲűŷŨűŷŶ
S.I/Fport
ŶťŧŃƖƈƗƗƌƑƊ

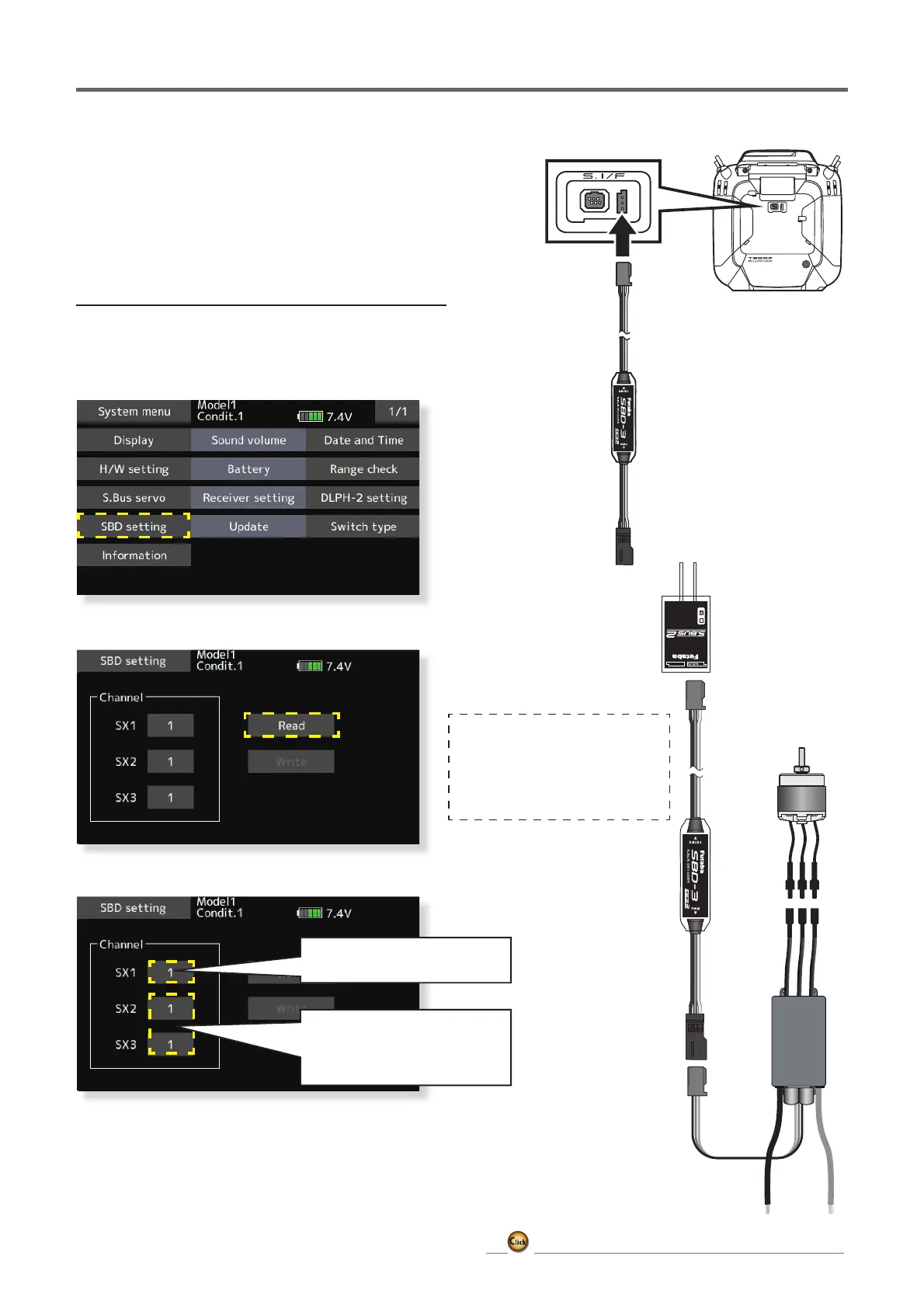

SBD S.BUS Decoder channel setting
SBD S.BUS Decoder channel setting is possible
with T26SZ. SBD setting can be performed on the
T26SZ screen by wiring the SBD as shown in the
¿JXUH
The SBD-3 is a converter
for using conventional
servo/ESC with the
S.BUS system.
4. Set the channel.
6. Remove the SBD from the transmitter.
ForSBD-3,configureSX1.
Thischannelworks.
ForSBD-1,configureSX1,SX2,
andSX3.
Eachservooperatesonitsown
setchannel.
ŶƈƗƘƓŃƖƗƈƓƖ
3. Tap [Read].
1. Connect the SBD and the S.I/F port of the
transmitter with a cable.
2. Tap [SBD setting] on the System menu.
5. Tap [Write].
→
SBD settings will be changed.
