61

bind at the top or bottom of its throw. You will also want to repeat this procedure for the cyclic throws.
Move the stick left/right, up/down to assure that the linkages do not bind. If the linkages are binding, reduce
the AFR values. If additional throws are needed, increase the values.

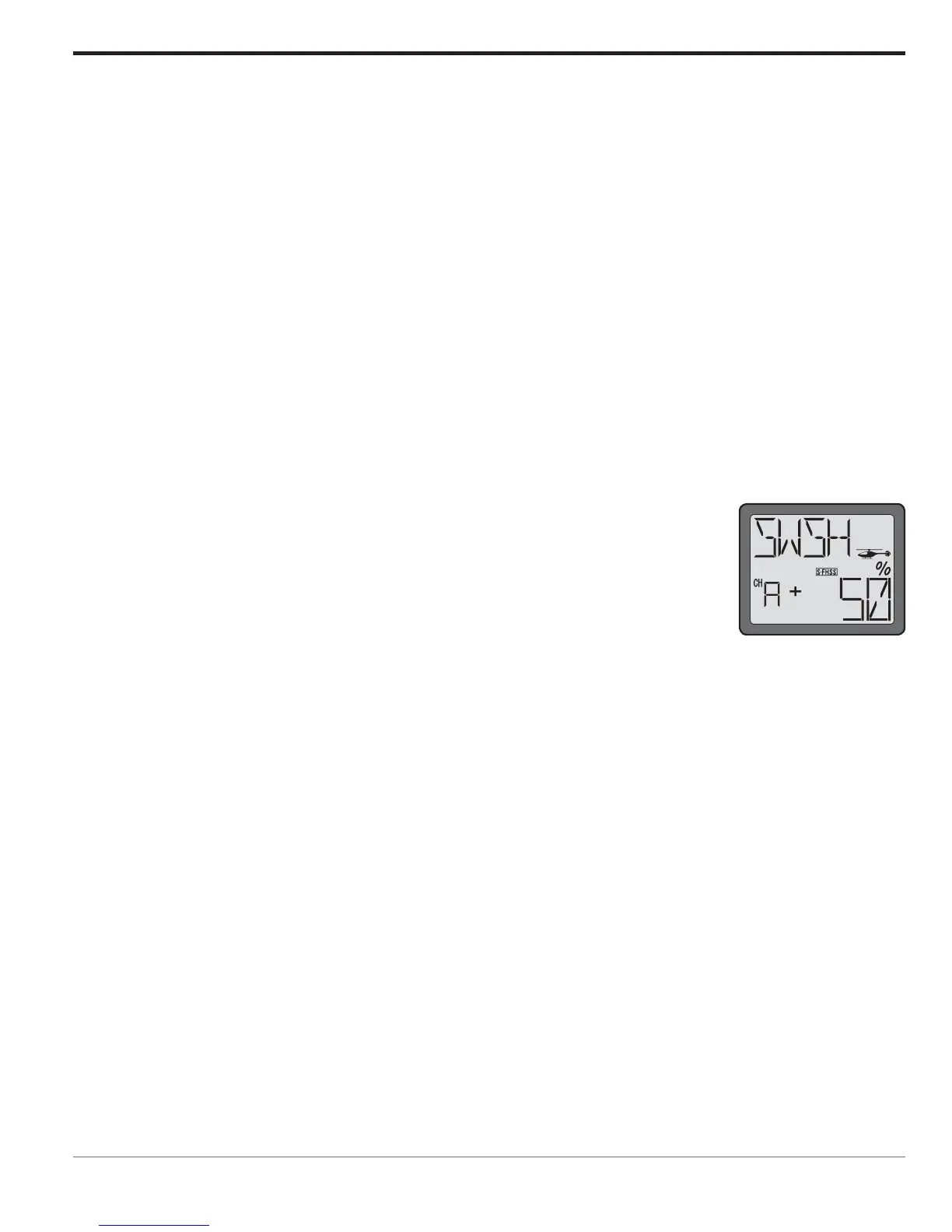

To set the swash AFR:
1) Turn the transmitter on.
2) Press and hold the MODE button to access the programming mode.
3) Press either the MODE key OR the END key to scroll through the function menus. Continue pressing the
MODE or END key until the swash (SWSH) menu appears on screen.
4) To select the swashplate type, press the DATA INPUT lever upward or downward for about two seconds.


5) Use the SELECT key to select the channel you wanted to set. Aileron channel

adjusted by pushing the DATA INPUT lever up or down. Aileron movement can be

6) Adjust the elevator and pitch channels using the same methodology. Press the SELECT button to bring
forth the channels accordingly. The elevator channel is indicated by CH-E; pitch is indicated as CH-P on
the display.
7) Press and hold the END button to exit the programming menu.
Delay (DELY)- (HELI only)
The T6J allows the user to delay input from the throttle and/or pitch servos when changing from the other
  
 



The delay for both the throttle (Channel 3) and the pitch (Channel 6) is adjustable from 0-50%. A delay
value of 50% is approximately 1.2 seconds. We suggest starting with a smaller value until the optimum

