Future light MH - 640 - Description of the Fixture

25

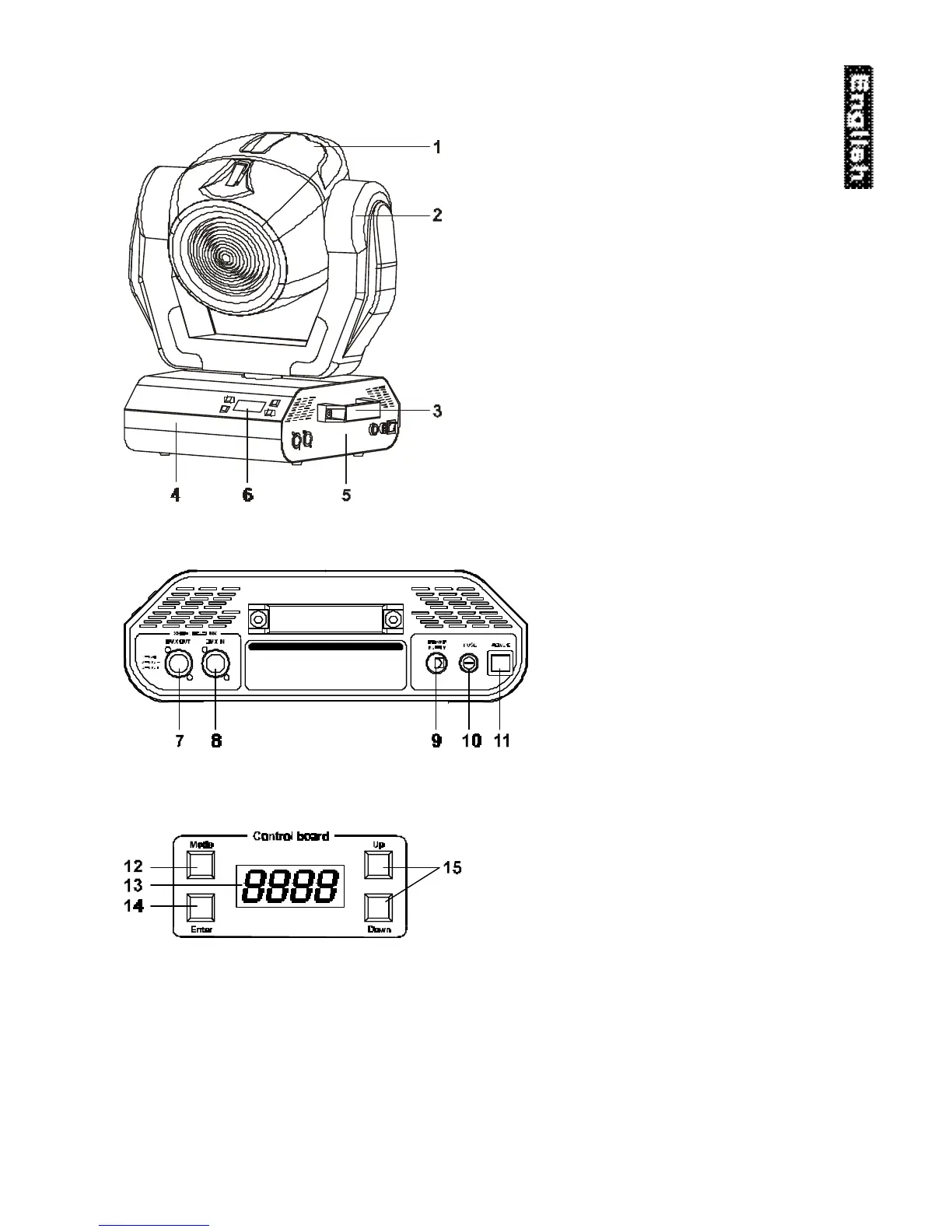

Description of the fixture
1 - Projector-head
2 - Yoke
3 - Carring handles
4 - Base
5 - Base - side panel
6 - Control Board
Base - side panel:
7 - DMX-output
8 - DMX-input
9 - Powercord
10 - Fuseholder
11 - Power-switch
Control Board:
12 - Mode-button
13 - Display
14 - Enter-button
15 - Up/Down-buttons
