8M093X01 R1.0 14

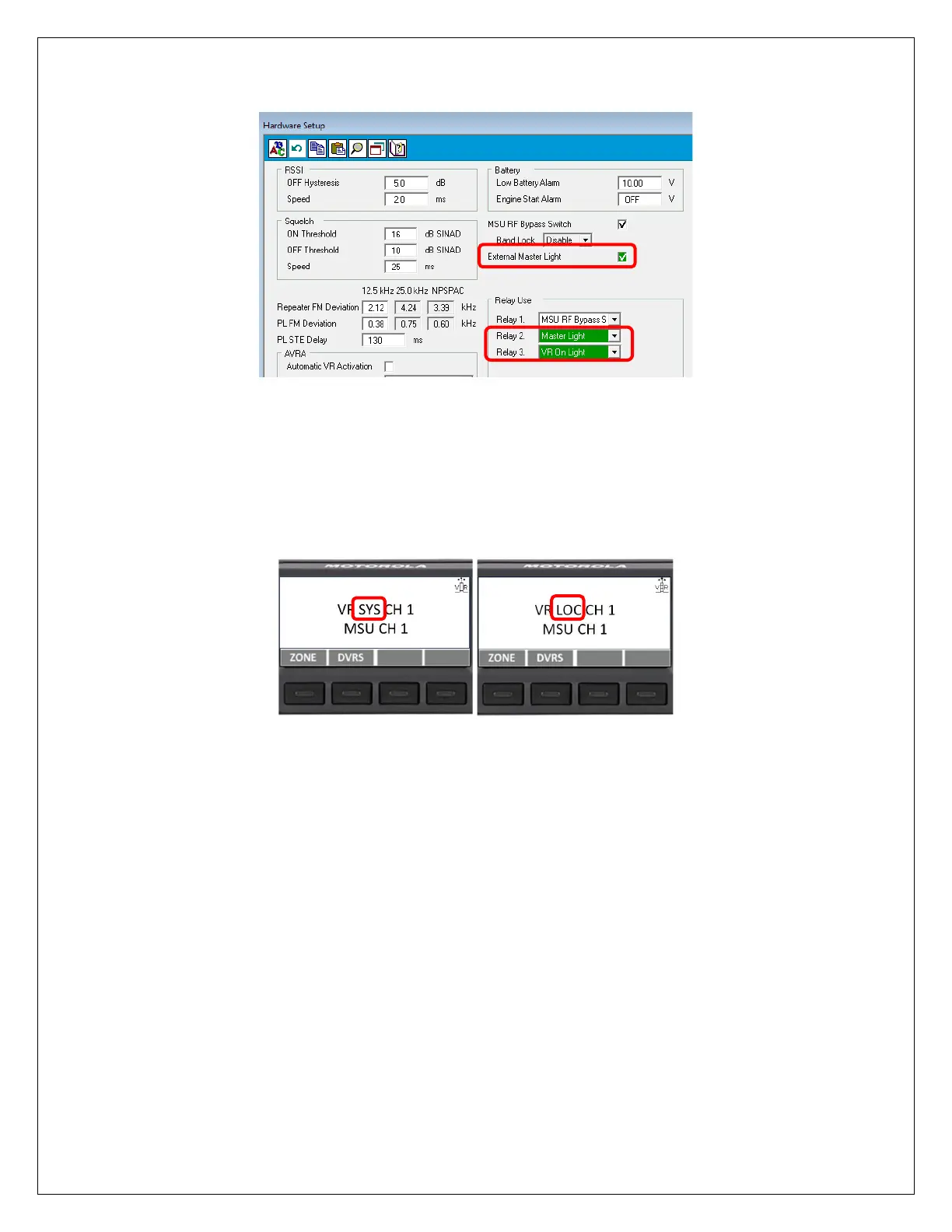

Figure 5: Primary & On Lights Configuration
System & Local Mode Lights
The top line of the control head can be used to determine whether the DVR-LX is
operating in system (SYS) or local (LOC) mode. Some users may prefer to have a more
obvious indication of the DVR-LX status.
Figure 6: Control Head Display – System/Local
A pair of lights may be connected to the AUX port with the light colour used to indicate
whether the DVR-LX is in System or Local mode.
To enable the lights operation, the following must be configured via FRC in the
Hardware Setup menu:
• Relay Use-> Relay 2 = SYS Mode Light
• Relay Use-> Relay 3 = LOC Mode Light
