In-Band RF Switch Cabling
To use the RF Switch for In-Band DVR-LX units, connect the cables as shown in Figures
17 and 18. To enable the RF Switch operation, refer to the programming instructions for
the Bypass Switch.

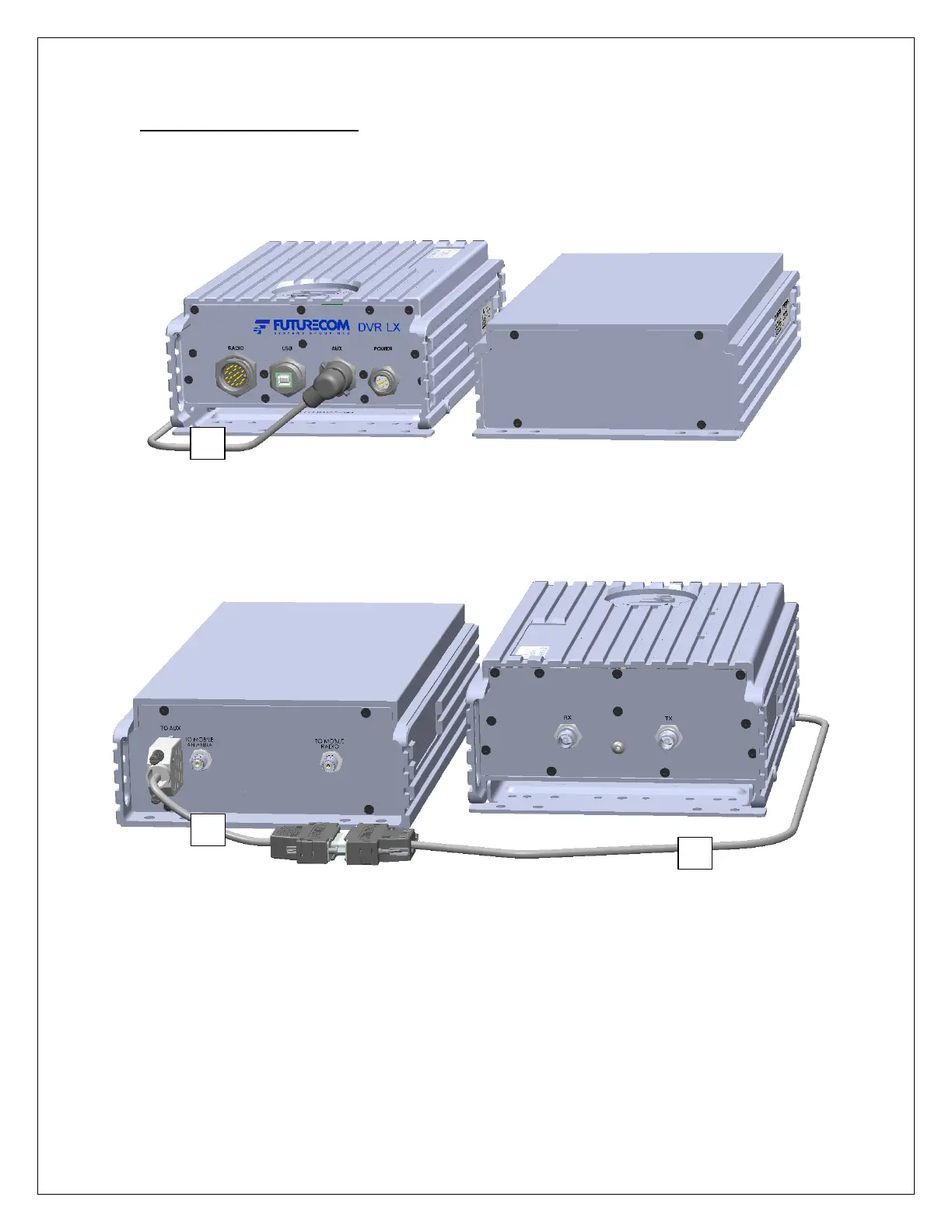

Figure 21: DVR-LX AUX - Front View
Figure 22: DVR-LX AUX - Back View
