FUXTEC FX-PS152 User Manual

Original User Manual FUXTEC FX-PS152 / FX-PS162
21
13. Replacing Nylon Thread

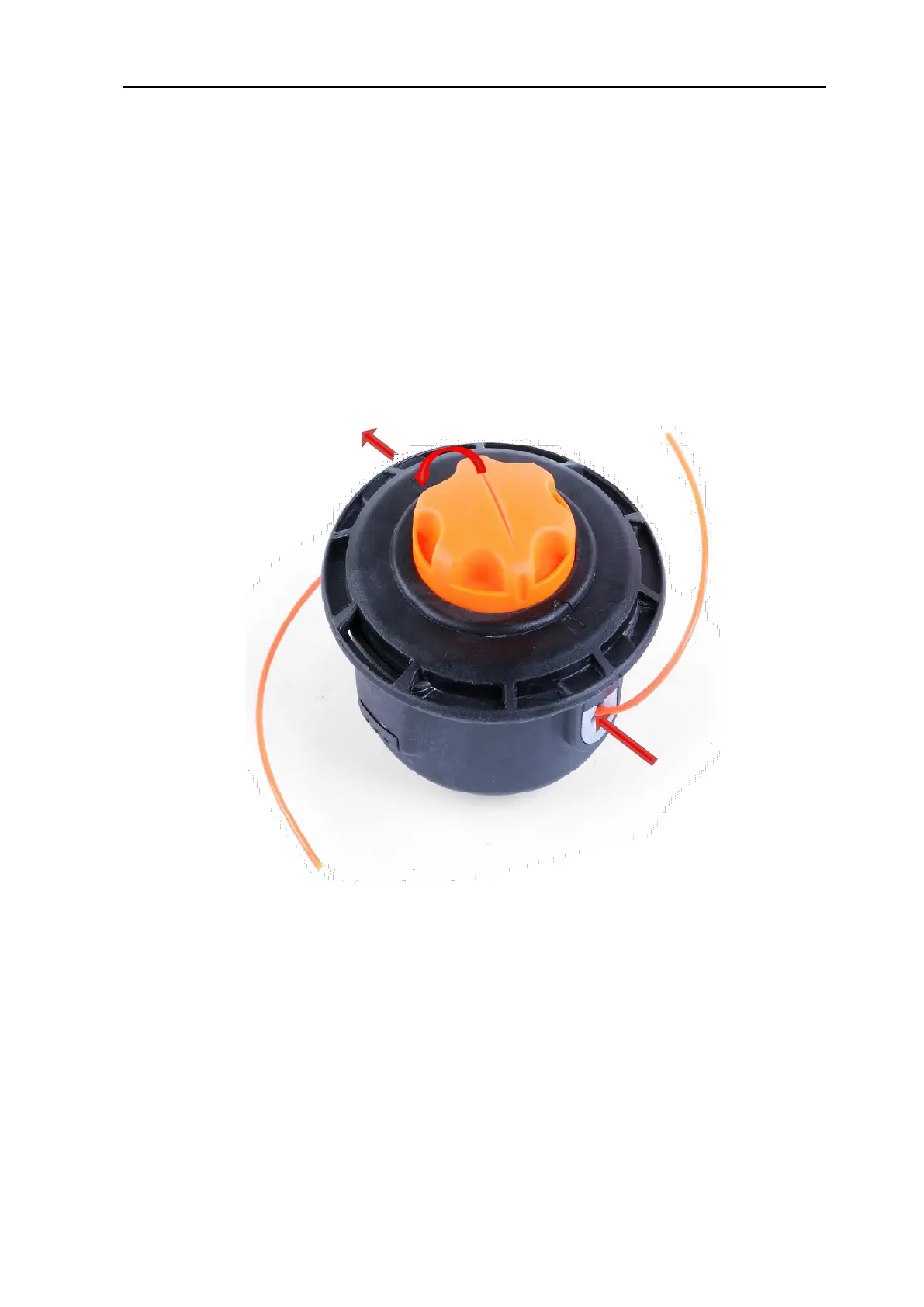

The model FX-PS152 comes with an EASY Fit nylon thread head, which does not need to be
disassembled in a complicated way.
You turn the bobbin head (orange) until the arrow markings match, and the hole is visible
throughout.
You simply push the desired length of thread through and wind the thread clockwise.
Therefore also EASY FIT - filling up the thread without disassembling the bobbin

FUXTEC FX-PS152 Specifications

General

Type	String trimmer
Head type	Nylon line
Handle type	U-type handle
Engine power	3 hp
Product color	Black, Orange
Rotational speed	7100 RPM
Number of strokes	2
Fuel tank capacity	1.2 L
Vibration emission	9.661 m/s²
Automatic line feed	Yes
Engine displacement	52 cm³
Sound pressure level	99.5 dB
Cutting diameter (max)	440 mm
Sound power level guaranteed	113 dB
Sound power level uncertainty	3 dB
Power source	Gasoline

Weight and Dimensions

Weight	7500 g
