14

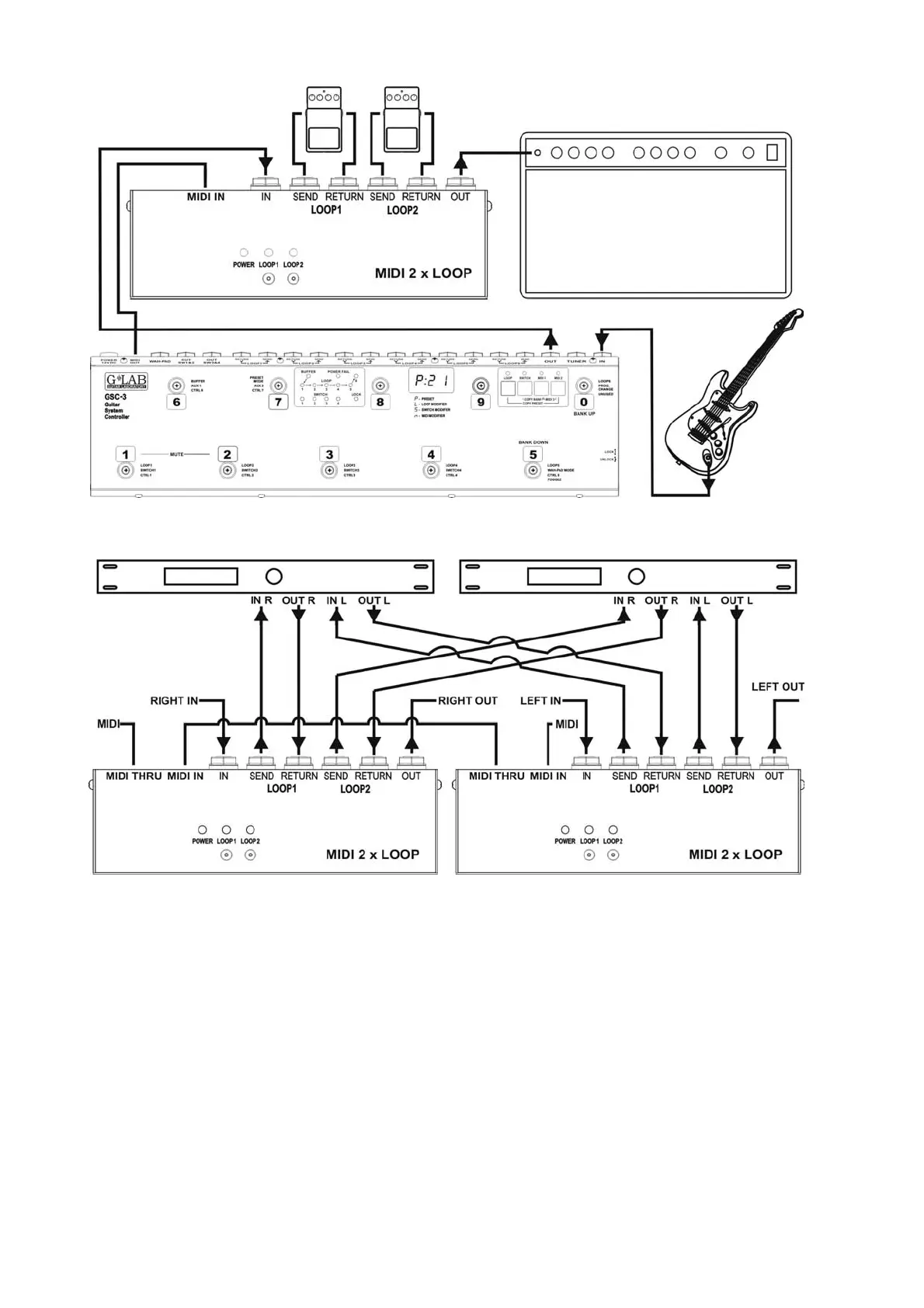

Scheme of extending GSC with two effect loops
Two stereo effects’ switcher (TRUE BYPASS)
Technical parameters
Dimensions: width 441 mm
depth 125 mm (without connectors)
height 60 mm
Weight 1.9 kg
Buffer input impedance 1 MΩ
Buffer transmitted signal 15 dBu
Buffer output impedance 3 kΩ
Tuner buffer input impedance 10 MΩ
Power supply 12V DC 2A
