g.tec medical engineering GmbH g.USBamp, USB Biosignal Amplifier: Instruction for use
____________________________________________________________________________________________________________________
V2.16.09
Page 24

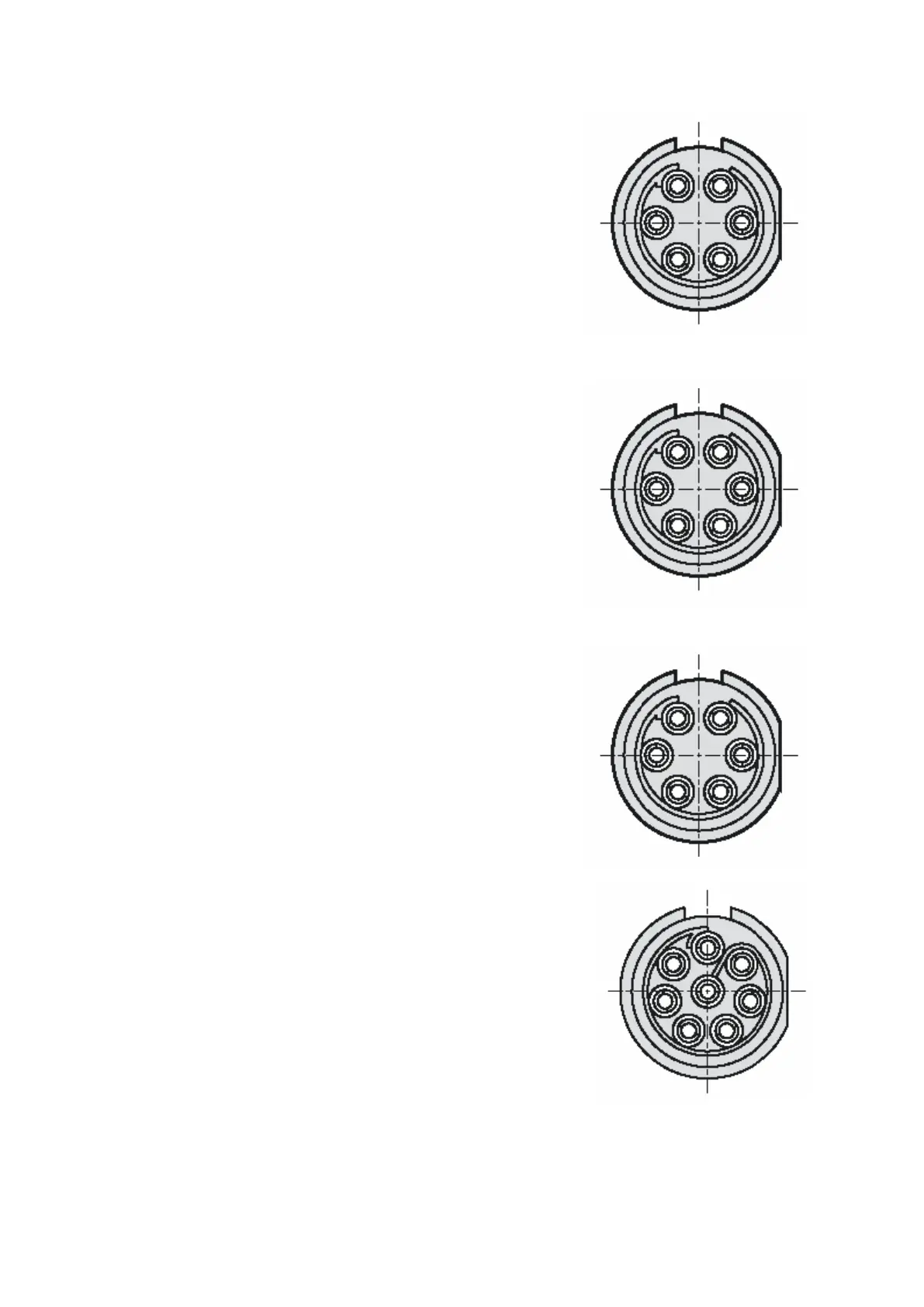

Pin-assignment for the 6 pin socket A
Pin 1 analog input 3
Pin 2 analog input 2
Pin 3 analog input 4
Pin 4 reference analog group A
Pin 5 ground group A
Pin 6 analog input 1
Pin-assignment for the 6 pin socket B
Pin 1 analog input 7
Pin 2 analog input 6
Pin 3 analog input 8
Pin 4 reference analog group B
Pin 5 ground group B
Pin 6 analog input 5
Pin-assignment for the 6 pin socket C
Pin 1 analog input 11
Pin 2 analog input 10
Pin 3 analog input 12
Pin 4 reference analog group C
Pin 5 ground group C
Pin 6 analog input 9
Pin-assignment for the 8 pin socket D
Pin 1 analog input 15
Pin 2 analog input 14
Pin 3 analog input 16
Pin 4 reference analog group D
Pin 5 ground group D
Pin 6 DRL
Pin 7 analog input 13
Pin 8 calibration
